Chapter 4: Using the OSD
www.gateway.com
OSD menus and options
Use these OSD menus and options to adjust various setting for your receiver.
Menu OSD Display Description
Speaker Setup Configure Speaker settings.
Options include:
Page 1/2
■
Subwoofer – Set to Yes or
No.
■
Front – Set size.
■
Center – Set size.
■
Surround – Set size.
■
Surround Back – Set size.
■
Subwoofer – Set type.
Page 2/2
■
Unit – Set english or metric.
■
Front L – Set distance.
■
Front R – Set distance.
■
Center – Set distance.
■
Surround Left – Set distance.
■
Surround Right – Set
distance.
■
V.S. Angle – Set angle.
■
Crossover Frequency – Set
subwoofer crossover
frequency.
Function Select Configure Function settings.
Options include:
■
Digital Input – Configure
digital inputs.
■
Video Select – Configure
video dubbing settings.
■
Tone Control – Configure
tone (bass/treble) settings.
■
Dynamic Range – Set
dynamic range.
■
PLII Parameter – Adjust the
Dolby Pro Logic II Music
parameter.

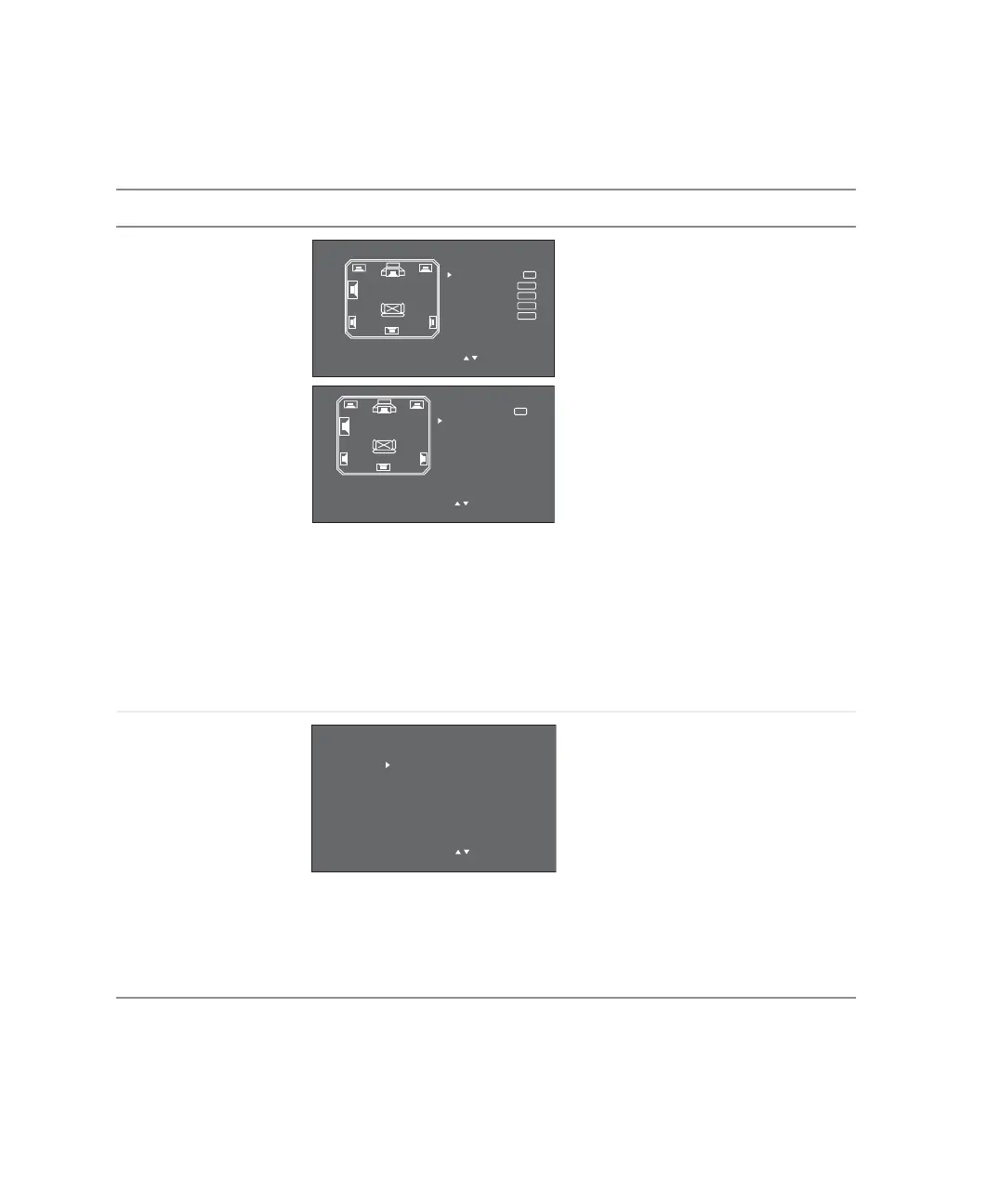

SPEAKER SETUP
SUBWOOFER :
FRONT :
CENTER :
SURROUND :
SURR. BACK :
SUBWOOFER : ACTIVE
OSD : BACK , : MOVE
ENTER :CHANGE 1/2 PAGE
YES
SMALL
SMALL
SMALL
SMALL
UNIT :
FRONT L : 10ft
FRONT R : 10ft
CENTER : 10ft
SURR. L : 10ft
SURR. R : 10ft
CROSSOVER FREQ. : 80Hz
U.S. ANGLE : NARROW
OSD : BACK , : MOVE
ENTER :CHANGE 2/2 PAGE
FEET
OSD : BACK , : MOVE
ENTER : SELECT OR CHANGE
FUNCTION SELECT
DIGITAL INPUT
VIDEO SELECT
TONE CONTROL
DYNAMIC RANGE : 0.5
PLII (M) PARAMETER
