Connecting a television
This receiver supports S-Video and composite video jacks. As you are making
your television (monitor) connections and using your receiver, keep in mind
that a signal input into the composite VIDEO IN jack is output to the composite
VIDEO OUT jacks and a signal input into the S-VIDEO IN jack is output to the
S-VIDEO OUT jacks and the composite MONITOR 1 and MONITOR 2 VIDEO
OUT jacks. For this reason, we recommend connecting your receiver to your
TV using both S-Video and composite video. (S-Video cable not supplied)
To connect your receiver to a television:

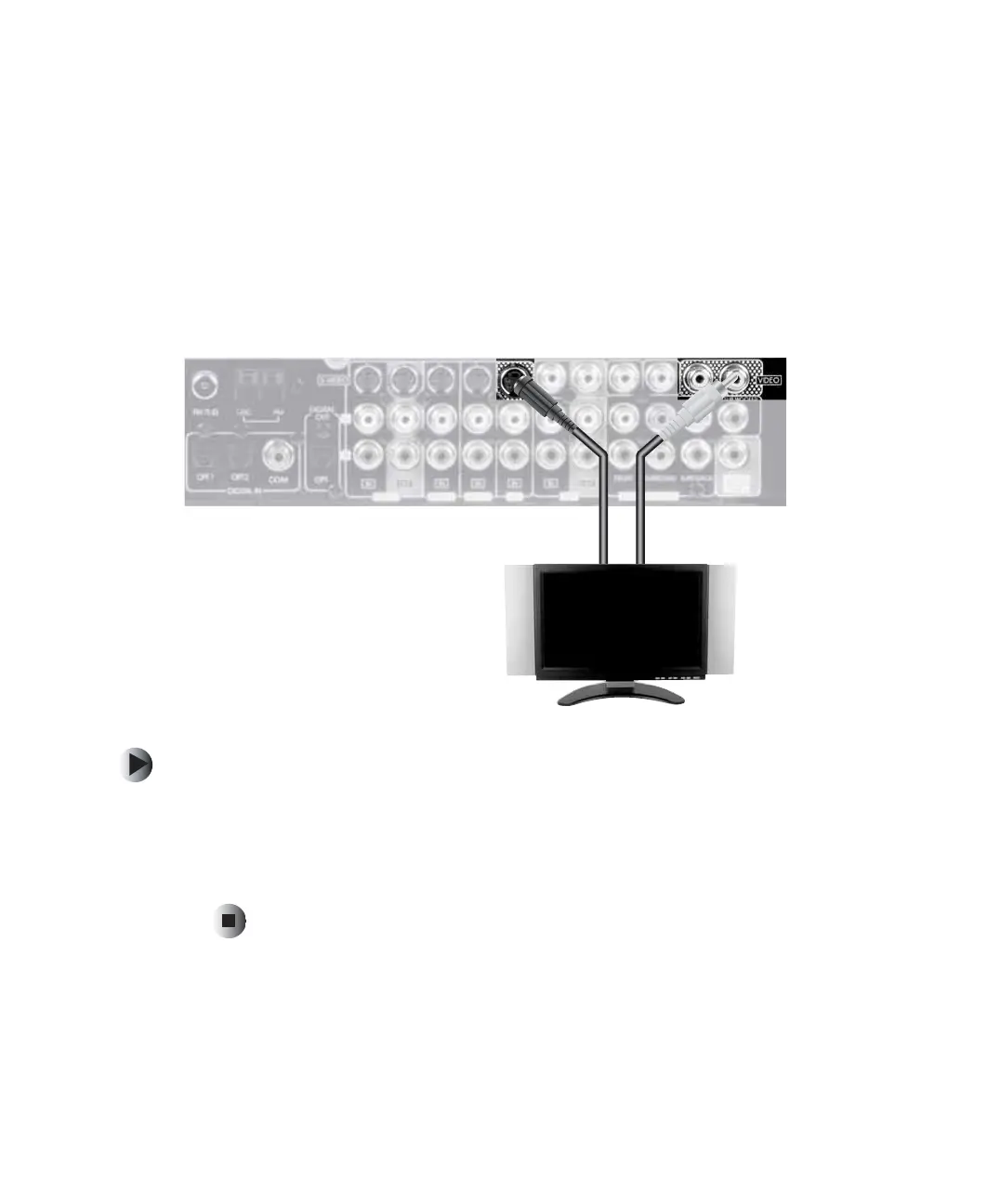

1 Connect the Monitor S-Video out jack on the back of your receiver to the
S-Video in jack on your television.
2 Connect the Monitor 1 or Monitor 2 composite video out jack on the back
of your receiver to the composite video in jack on your television.
