GAUI X4 - Main Rotor Assembly

9
GAUI
TAI SHIH HOBBY CORPORATION

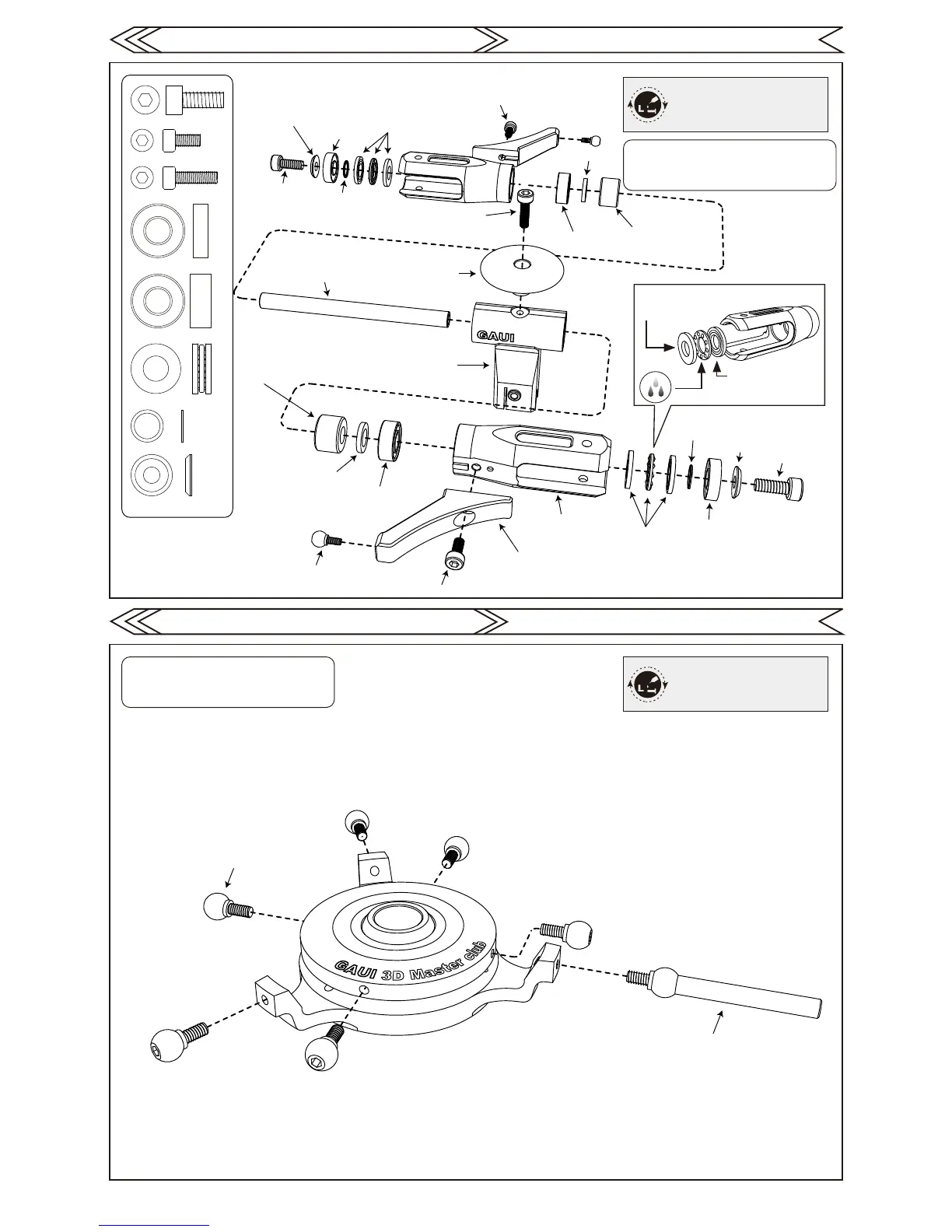

Main rotor assembly
主旋翼頭組裝
GAUI
TAI SHIH HOBBY CORPORATION
Swash plate assembly
十字盤組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
不銹鋼(4.8mm)球頭
Stainless ball (4.8mm)
Long linkage ball (4.8mm)
不銹鋼(4.8mm)球頭滑軌桿
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x10
W6x10x1.5
B6x13x5
Rubber damper 75
or
Rubber damper 95
Rubber damper 75
or
Rubber damper 95
T6x13x3.5
W6.2x7.6x0.5
W4.1x10x1.4
W4.1x10x1.4
B6x13x3.5
M4x10
M3x6
M4x10
W6x10x1.5
B6x13x5
M3x6
T6x13x3.5
B6x13x3.5
W6.2x7.6x0.5
主旋翼夾頭
Main blade grip
主旋翼頭
Main rotor head
不銹鋼(4.8mm)球頭
Stainless ball (4.8mm)
煞車盤
Stop Plate
橫軸
Spindle shaft
主旋翼舵柄組
Main Grip Levers
M4x10.......................x2
M3x10.......................x1
Bearing 6x13x3.5.....x2
T.Bearing 6x13x3.5..x2
Bearing 6x13x5........x2
W6.2x7.6x0.5..........x2
W4.1x10x1.4...........x2
M3x6.........................x2
內徑較大
內徑較小
(L)
(S)
Bigger inner race
Smaller inner race
橫軸橡皮墊(硬度75度)
橫軸橡皮墊(硬度95度)
或
橫軸橡皮墊(硬度75度)
橫軸橡皮墊(硬度95度)
或
Attention: When assembly is complete,
please re-check for correctness.
注意:組裝完成之部分，零件需自行檢查確認。
Attention: When assembly is complete,
please re-check for correctness.
注意:組裝完成之部分，零件需自行檢查確認。
