GAUI X4 - Gear Assembly; Main Shaft Assembly

8
GAUI
TAI SHIH HOBBY CORPORATION

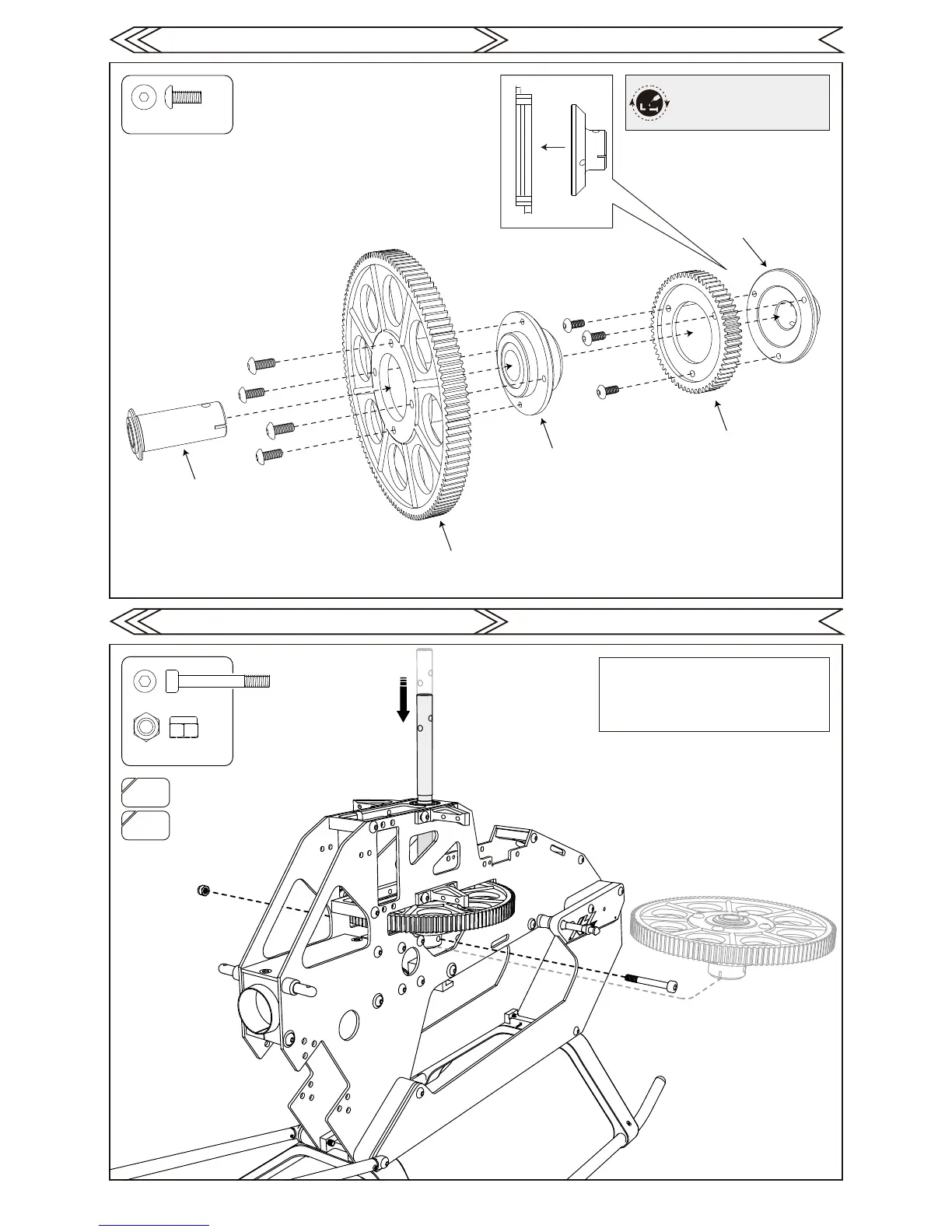

Gear assembly
齒盤組裝
GAUI
TAI SHIH HOBBY CORPORATION
Main shaft assembly
主軸組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x22......................x1
N3x5.5L...................x1
M3x22
N3X5.5L
M3x7
M3x7
M3x7
M3x7
M3x7
M3x7
M3x7
單向鋼套
One-way sleeve
120T主齒盤
120T main gear
主齒輪轂
Main Gear Hub
61T齒輪
Rear Main Gear(61T)
主齒盤下輪榖
Rear main gear hub
3mm
2mm
M3x7........................x7
齒盤置入後，將主軸穿過上(下)主軸座至
定位，再行鎖附M3x22螺絲。
After positioning the main gear, insert main
shaft the bearing bases, tighten with M3x22
screw & N3x5.5L nut.
