GAUI X4 - Electronics and Battery Installation

19
GAUI
TAI SHIH HOBBY CORPORATION

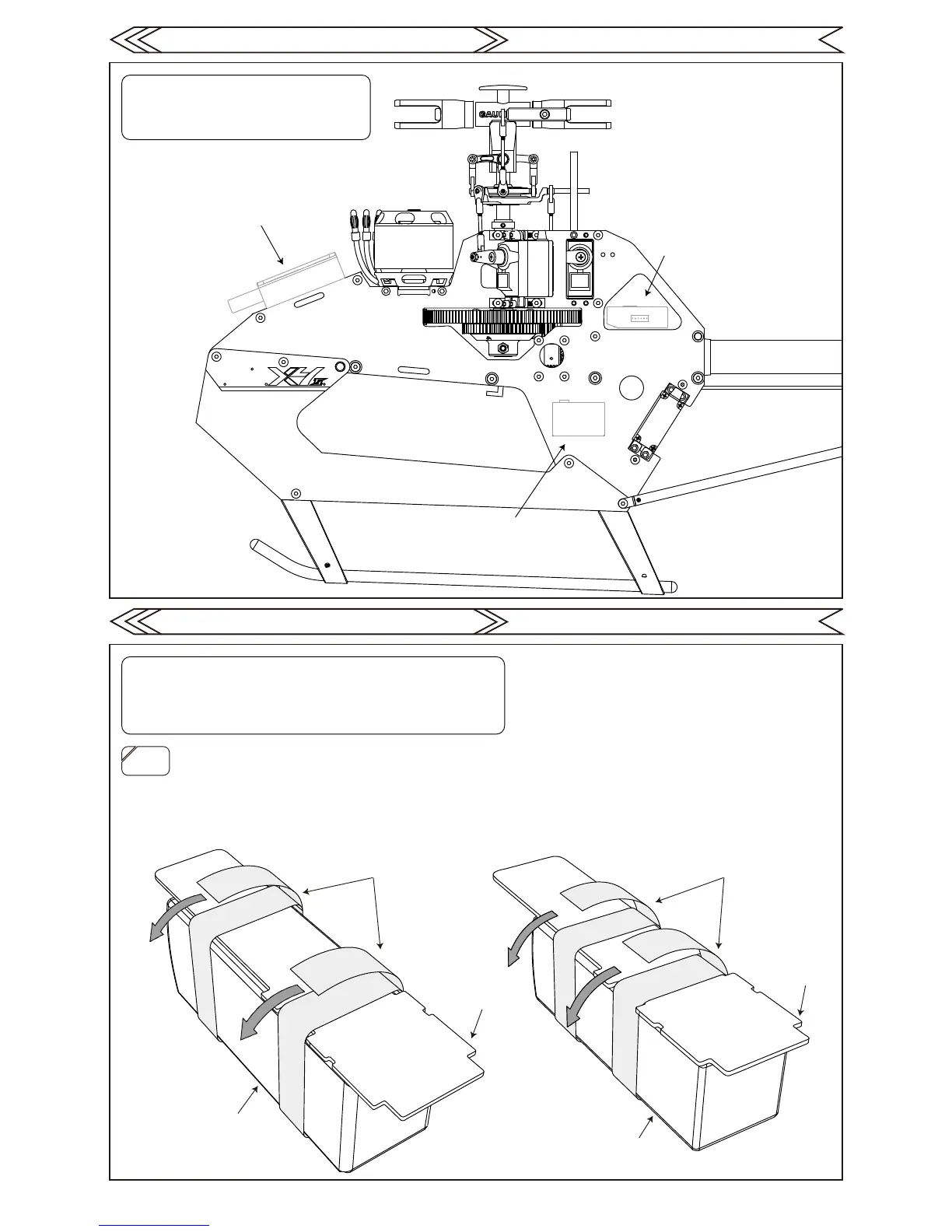

Electronics
電裝配置
GAUI
TAI SHIH HOBBY CORPORATION
Battery installation
電池固定
電子裝備配置會因個人電裝不同而不同，請依
個人需求進行配置。
ESC
Install electronics to your own personal
preference locations.
Recommended battery capacity 2200~5000mAh, depending on battery
used adjust battery location on Battery tray, use high strength tape
to fasten battery to tray.
High strength tape
Gyro
Receiver
接收機
陀螺儀
電池規格適用於2200~5000 mAh，需以電池大小來調配重心位置，確認位
置後將電池與電池隔板用高韌性強力黏著膠帶固定，位置如下圖。
高韌性強力黏著膠帶
電池隔板
Battery 5000 mAh
電池 5000 mAh
Battery 2200 mAh
電池 2200 mAh
電池隔板
高韌性強力黏著膠帶
High strength tape
Battery tray
Battery tray
