GAUI X4 - Servo Installation

11
GAUI
TAI SHIH HOBBY CORPORATION

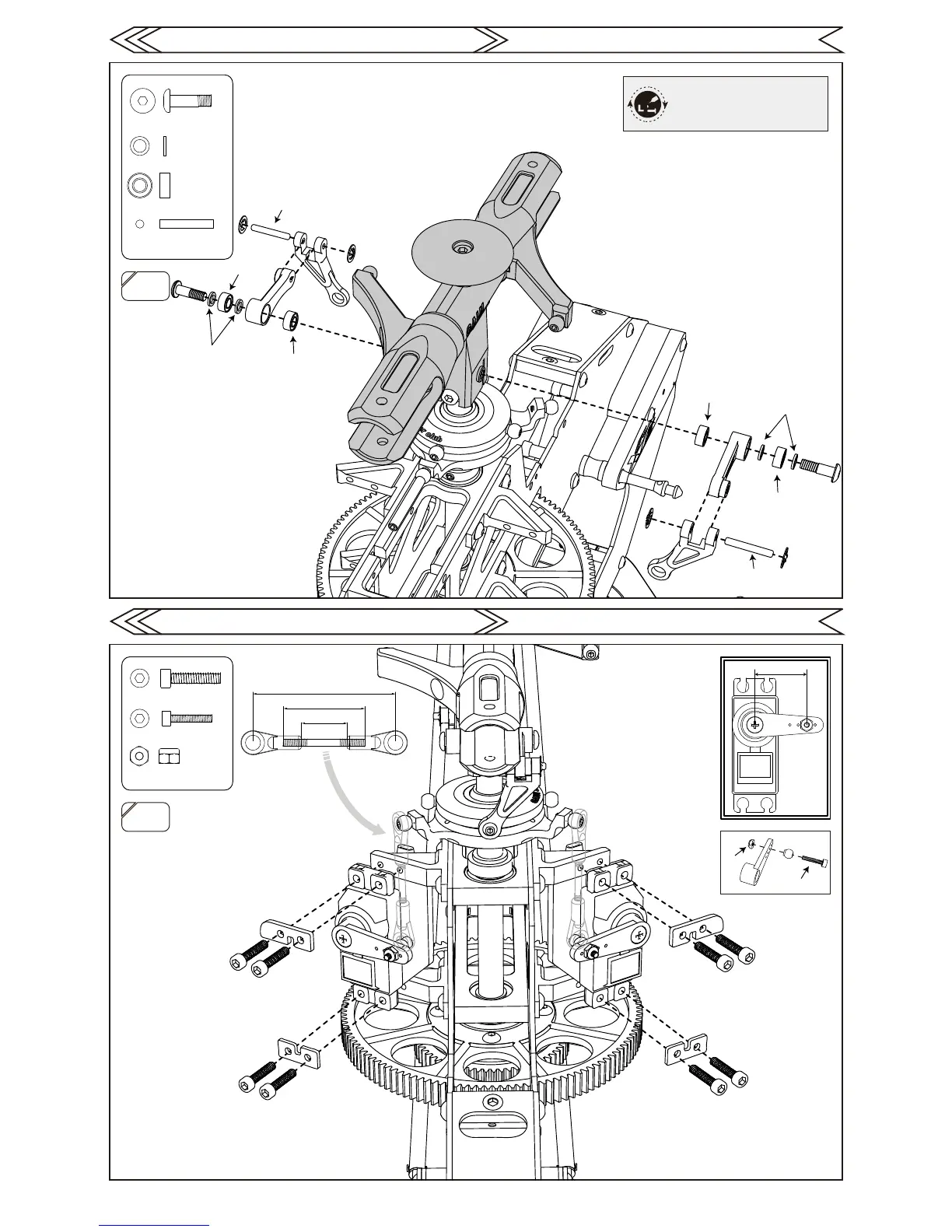

Rotor head assembly
旋翼頭總成
GAUI
TAI SHIH HOBBY CORPORATION
Servo installation
伺服機組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x10
M3x10
P2x13
W3.1x4.6x0.6
B3x6x2.5
B3x6x2.5
P2x13
B3x6x2.5
B3x6x2.5
W3.1x4.6x0.6
M3x10.......................x2
W3.1x4.6x0.6............x4
Bearing 3x6x2.5........x4
Pillar 2x13.................x2
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10.....................x8
M2x10........................x2
N2x4L........................x2
18mm
41.5mm
23.5mm
11.6mm
M2x10
N2x4L
15
16
