GAUI X4 - Lower Frame Assembly

2
GAUI
TAI SHIH HOBBY CORPORATION
Frame assembly
機身組裝
GAUI
TAI SHIH HOBBY CORPORATION

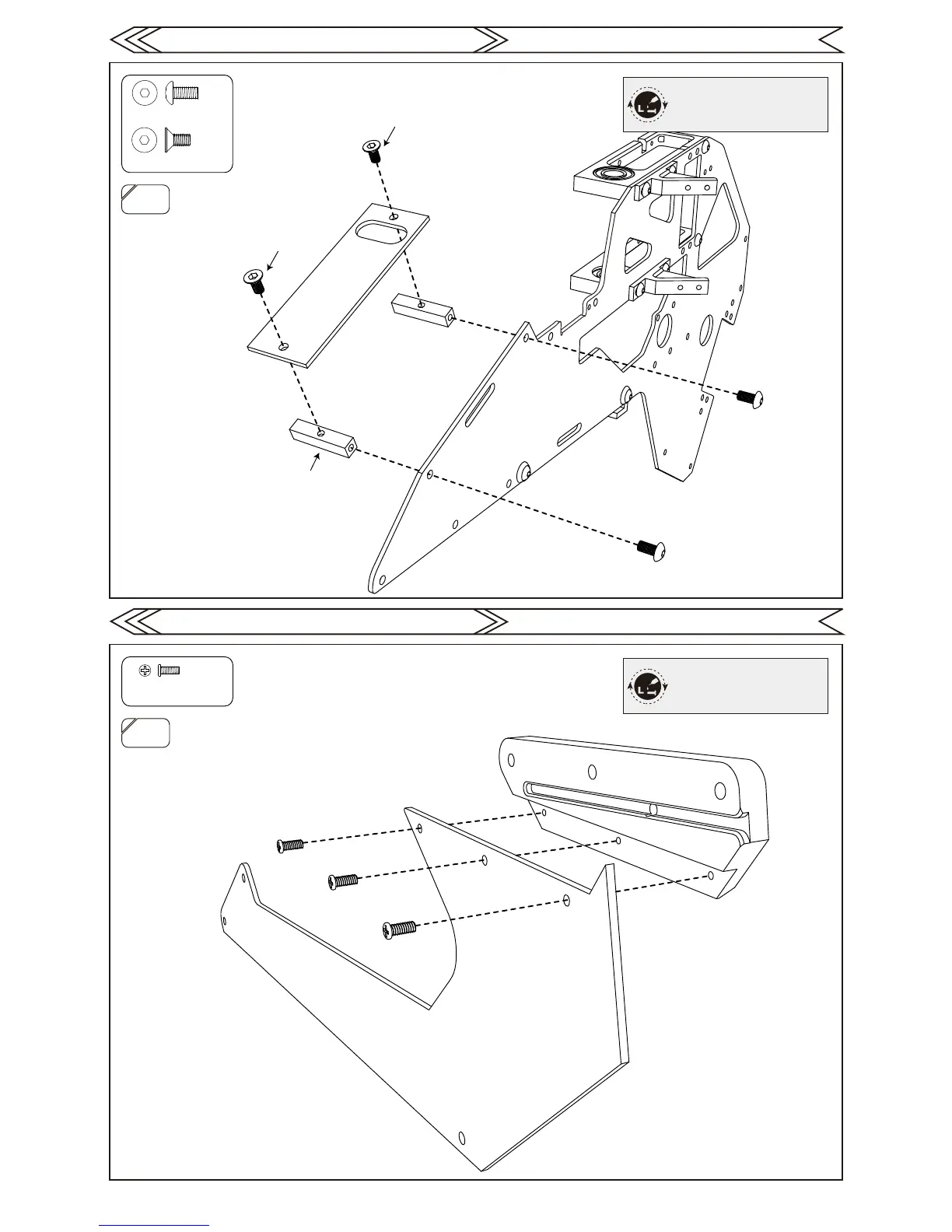

Lower frame assembly
下側板組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M2x4.6....................x3
M3x6
M3x6
M3x6
M3x6
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
Frame post
方鋁柱(23.5mm) 6pcs
M3x6........................x2
M3x6........................x2
M2x4.6
M2x4.6
M2x4.6
