GAUI X4 - Core Helicopter Assembly; Frame Assembly

1
GAUI
TAI SHIH HOBBY CORPORATION

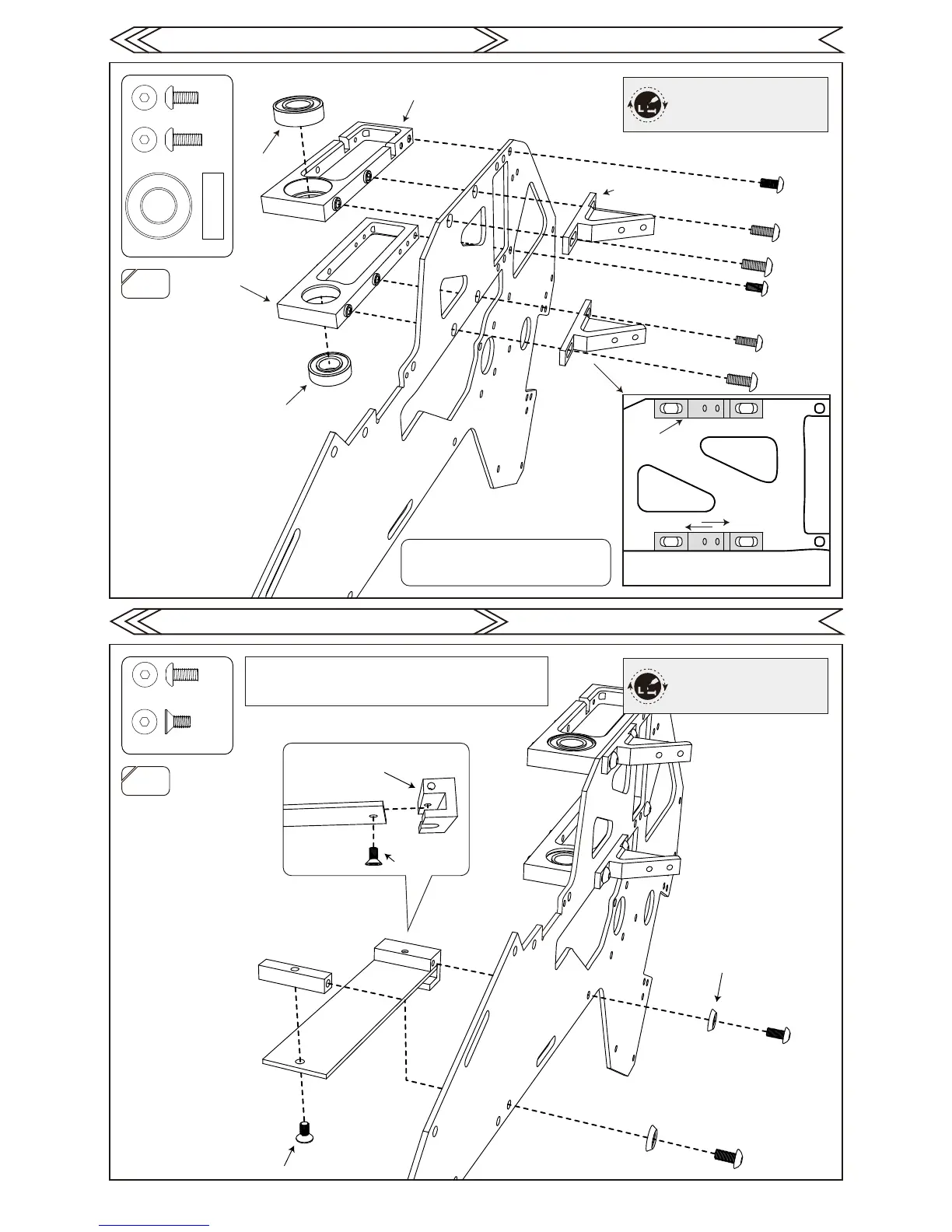

Frame assembly
機身組裝
GAUI
TAI SHIH HOBBY CORPORATION
Frame assembly
機身組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x6........................x2
M3x6........................x2
M3x6........................x2
M3x7........................x4
Bearing 8x16x5.......x2
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
B8x16x5
B8x16x5
上主軸座
Upper Main Shaft Mount
Servo mount
伺服機座
下主軸座
Lower Main Shaft Mount
M3x6
M3x6
M3x7
M3x7
M3x7
M3x7
M3x6
M3x6
M3x6
M3x6
螺絲墊片
Countersunk Washer
電池掛件
先將隔板鎖上電池掛件，再組裝至機身。
Servo mount
伺服機座
伺服機座可配合P.11頁調整左右位置。
Servo base can match P.11 adjustment with
Left & Right positions.
先將伺服機座的M3x7螺絲含上不鎖緊，再配合右圖。
First install servo on servo mount with M3x7 screws
but do not tighten screw, adjust servo placement
according to servo used.
Install center frame to the CNC X4 II Battery Slider Seat
(Center) before installation to side frame.
CNC X4 II Battery Slider Seat (Center)
1
2
