GAUI X4 - Powertrain, Tail Systems, and Final Assembly; Tail Boom and Gear Box Assembly

13
GAUI
TAI SHIH HOBBY CORPORATION

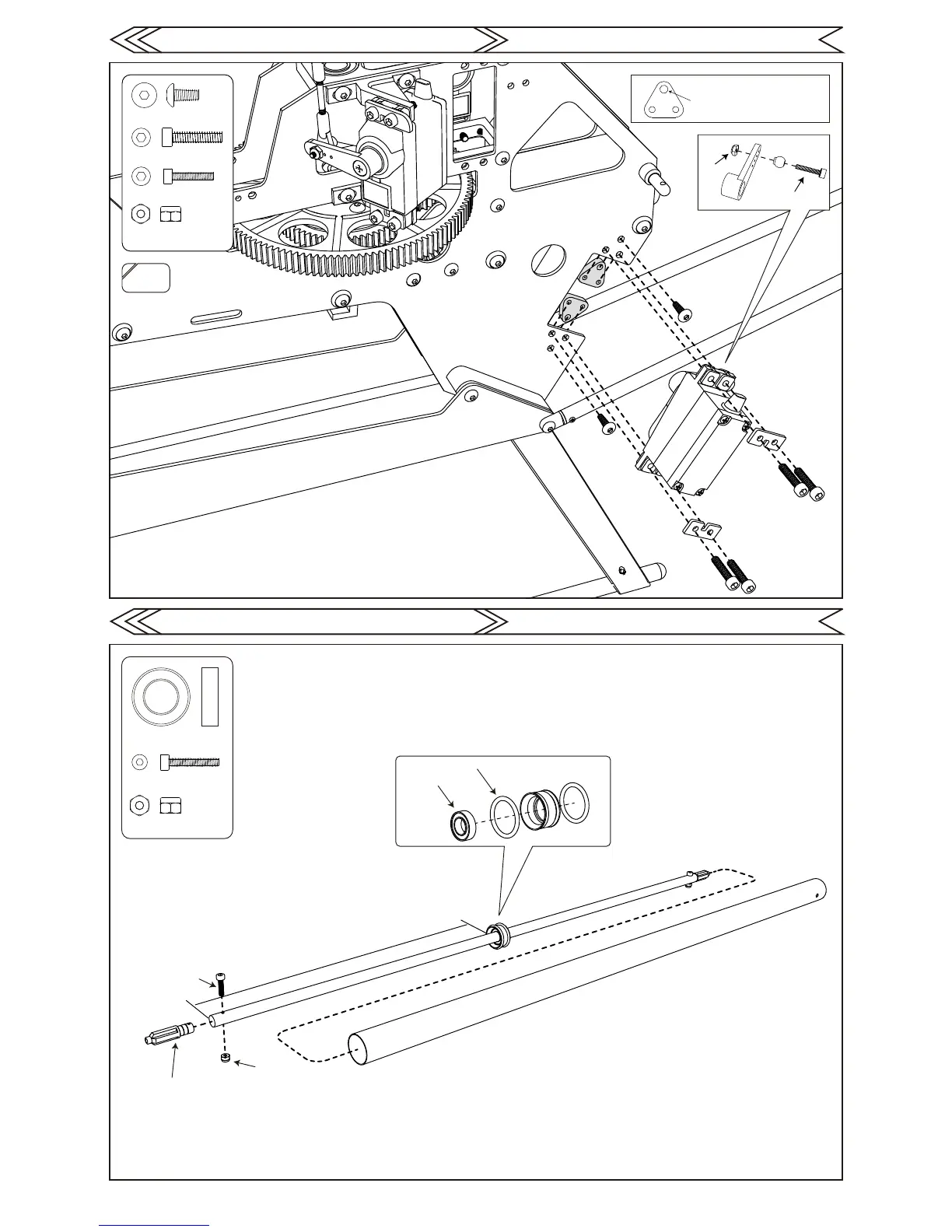

Servo installation
伺服機組裝
GAUI
TAI SHIH HOBBY CORPORATION
Tail boom assembly
尾管總成
Ø3x8........................x2
M2.6x10...................x4
M2x10......................x1
N2x4L......................x1
組裝時請注意大洞為Ø3x8螺絲孔。
When installing please notice the
larger hole is Ø3x8 thread hole.
M2x10
N2x4L
Ø3x8
Ø3x8
M2.6x10
M2.6x10
M2.6x10
M2.6x10
N2x4L
Torque tube drive shaft head
M2x12
255 mm
Bearing 8x14x4..........x1
B8x14x4
O-ring
M2x12........................x2
N2x4L........................x2
傳動軸桿頭
16
