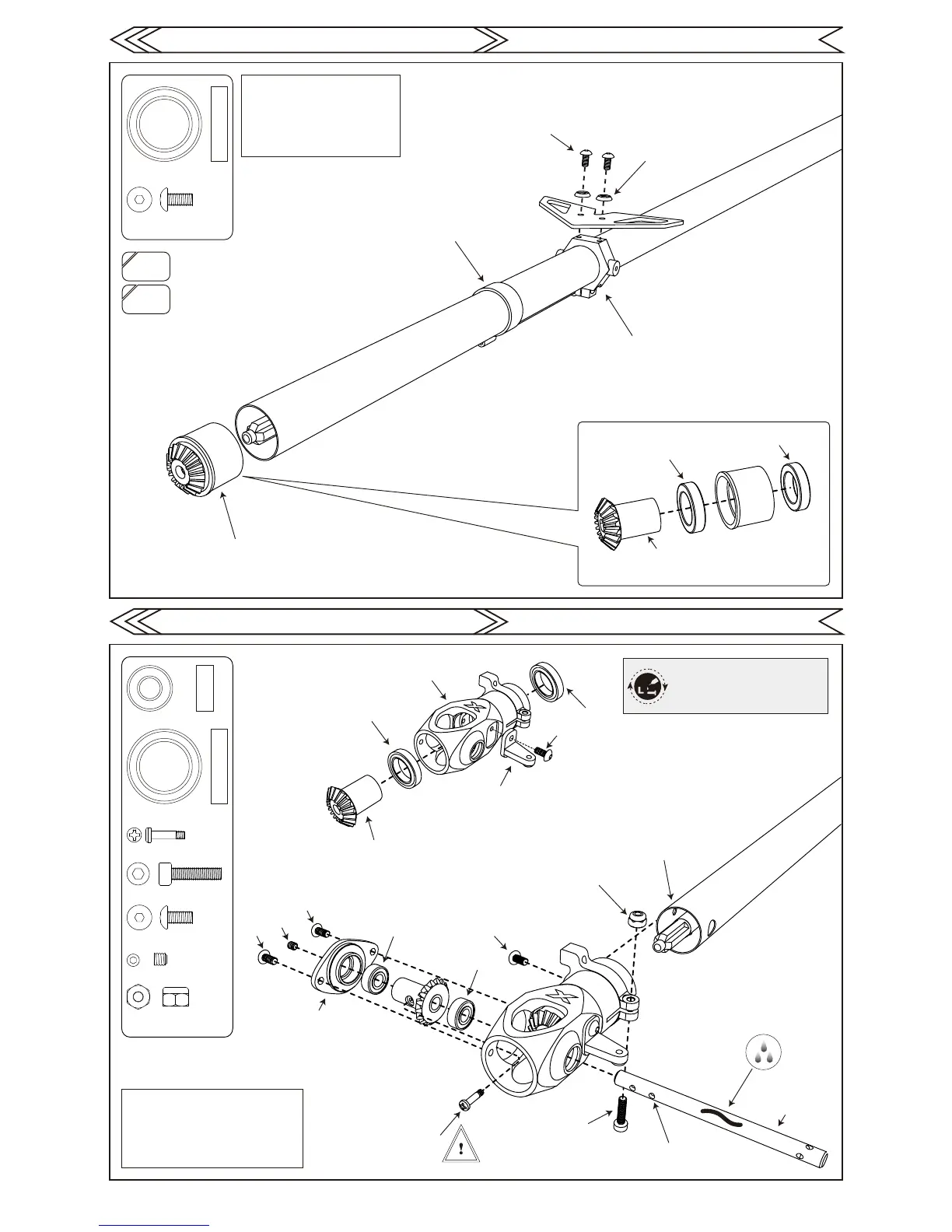

Tail boom assembly
尾管總成
GAUI
TAI SHIH HOBBY CORPORATION
Tail gear box assembly
尾殼總成
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
Assemble the tail support
clamp and tail control rod,
insert the front drive gear into
the tail boom.
將尾管夾及拉桿座置入尾管，
並套上前傳動齒輪箱。
M3x6
Rudder Control Guide
B12x18x4
17T Bevel Gear (Front)
Tail Support Clamp
拉桿座
尾管夾
Front Drive Gear
前傳動齒輪箱
17T 前傳動齒輪
B12x18x4
Bearing 12x18x4.........x2
M3x6...........................x2
螺絲墊片
Countersunk Washer
M2x8........................x1
N3x5.5L
定位孔
M3x6
M3x6
M3x6
M3x3
M3x12
M2x8
B5x11x4
固定點
Position point
Tail gear case cover
尾軸
Tail Output Shaft
Position hole
一體式尾殼蓋
一體式尾殼
一體式尾殼舵炳
B5x11x4
1.Fix the M2x8 screw into the
bevel gear, and fix the M2x8
screw with M3x3 set screw.
1.將M2x8螺絲鎖入齒軸並將
M3x3螺絲鎖入尾軸，固定M2x8。
17T Bevel gear
Tail Rotor Control Arm Mount
前傳動齒輪
Bearing 12x18x4.........x2
Bearing 5x11x4...........x2
M3x6...........................x4
M3x12.........................x1
M3x3...........................x1
N3x5.5L......................x1
B12x18x4
Integrated Tail Gear Case Assembly
M3x6
B12x18x4
