7.2 Clearing a Note Jam
1. Ensure the power supply to the GBA ST1C unit is switched OFF.
2. Remove the Cassette as described in section 2.2.1 Cassette Fitting / Removal.
3. Lift up the purple Access Latch on the back of the Bottom Sensor Assembly, and gently
slide the module out of the Channel Assembly – see section 2.2.3 Bottom Sensor Assembly.
4. Clear the jammed note(s) from the note path.
5. Re-assemble unit and switch the power supply back ON.

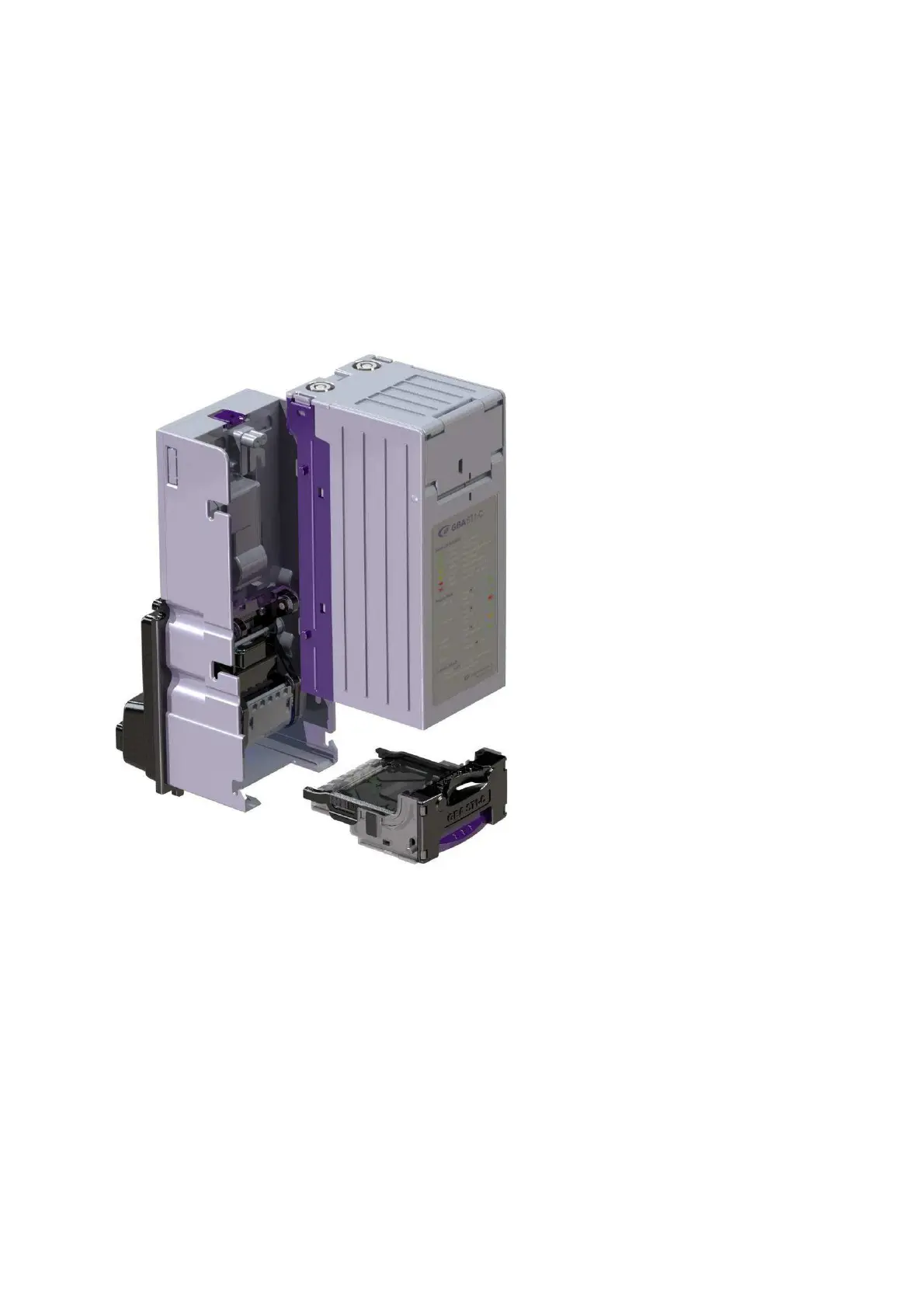

7.2 - Images of note path access
