8.0 DIAGNOSTICS & TROUBLESHOOTING
8.1 Diagnostics

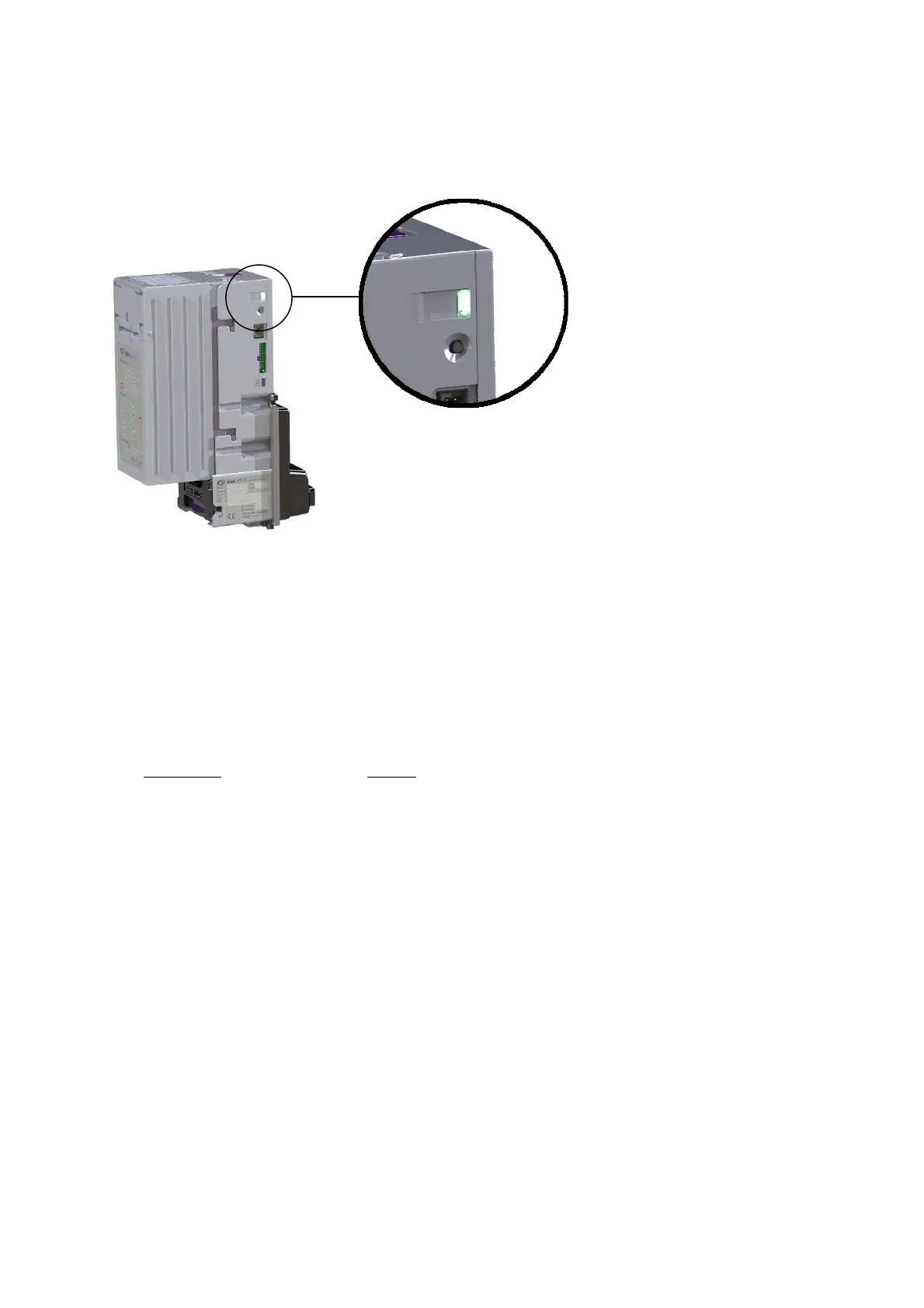

8.1 Image of side view of ST1C showing diagnostic LED
8.1.1 Status LED
The GBA ST1C has the facility to communicate validator status by the use of a tri coloured Status
LED located on the side of the unit. This enables enhanced diagnostics for the user and for
Astrosys personnel when assisting customers over the phone or by email. The following
functionality describes the operation of the LED:
Indication Status
Standby Modes
Solid Green Unit Operational
Solid Orange Unit Inhibited by Host Controller
Solid Red Unit out of order – Hard Fault
Active Modes
Flashing Green Unit Validating
Momentary Green Flash Note Accepted and credit issued
Flashing Red Soft Fault – Check Unit (e.g. stacker full)
Flashing Orange Sensors read low – clean lenses
Program Modes
Fast Flashing Green Note Enable – Programming Mode
Fast Flashing Red Note Disable – Programming Mode
Fast Flashing Orange Primary Calibration – Programming Mode
