4.0 SOFTWARE CONFIGURATION

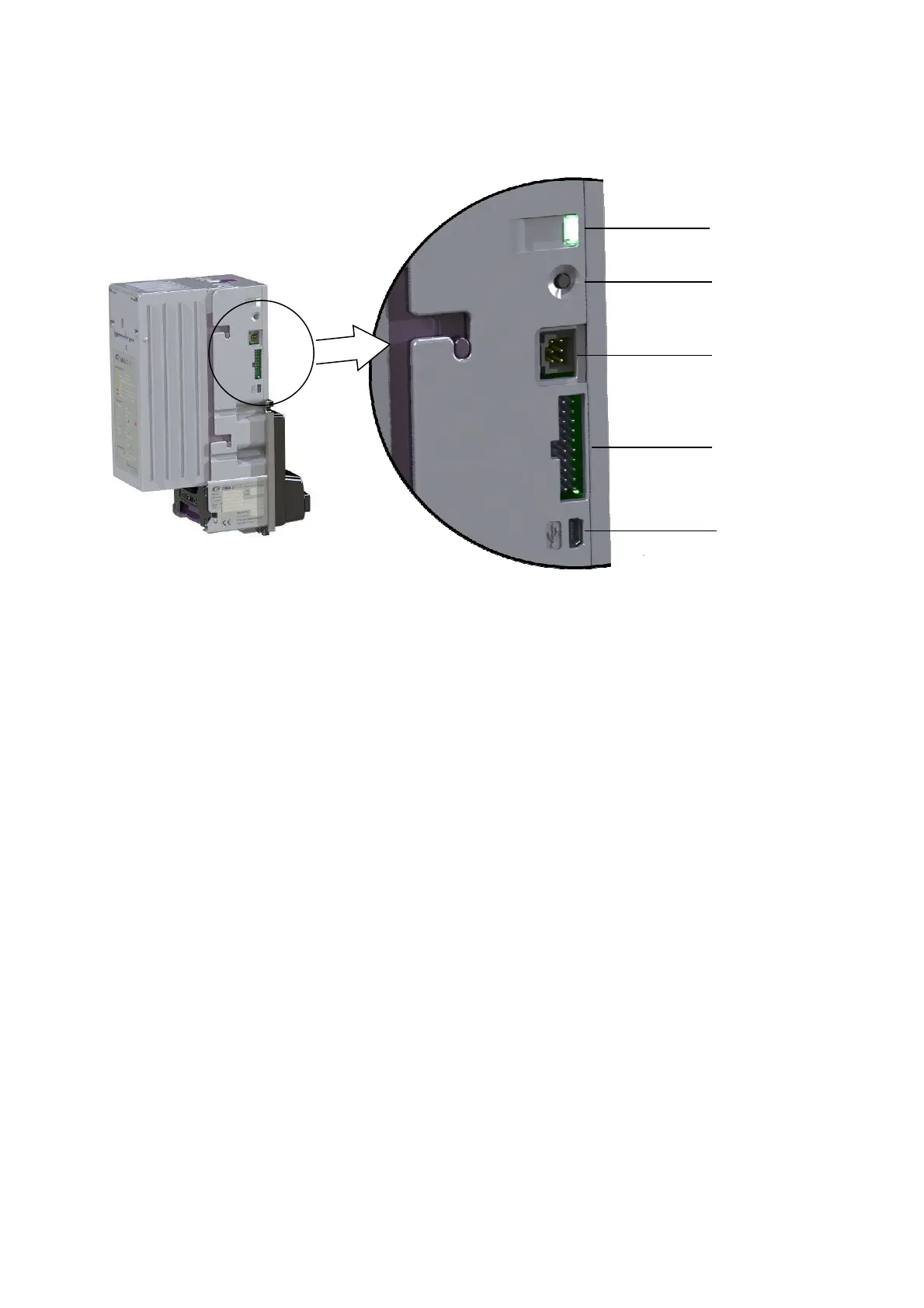

4.0 - Image illustrating rear of Bottom Sensor Assembly
The GBA ST1C can be configured using either the on-board push button or via a Windows based PC
package (GBA Talk) or connecting a USB memory device to the USB port.
4.1 On-board Push Button
The on-board push button is located on the side of the main chassis – see figure 4.0.
This push button will allow access to on-board programming modes including note enable (1
press), note disable (2 presses) and Primary Calibration / Configuration (3 presses). A single long
press of more than 2 seconds will cancel the programming mode. In the note enable and disable
modes a sample note must then be inserted and scanned. If the operation is successful the
validator will return to normal operation mode. If it is unsuccessful, it will remain in the program
mode and the illuminated note guide will continue to flash until the push button is held for more
than 2 seconds.
If the push button is held for more than 5 seconds an error is reported (Status ED solid red).
4.1.1 Configuration Procedure – Enable Note
Procedure:
1. Push button x 1, the Status LED will flash green rapidly.
2. Insert a sample note of the specific denomination required to be enabled.
3. The GBA ST1C will scan the note in and then return it.
4.
Enable complete. The Status LED will return to solid green.
