CyScan Fuse Information

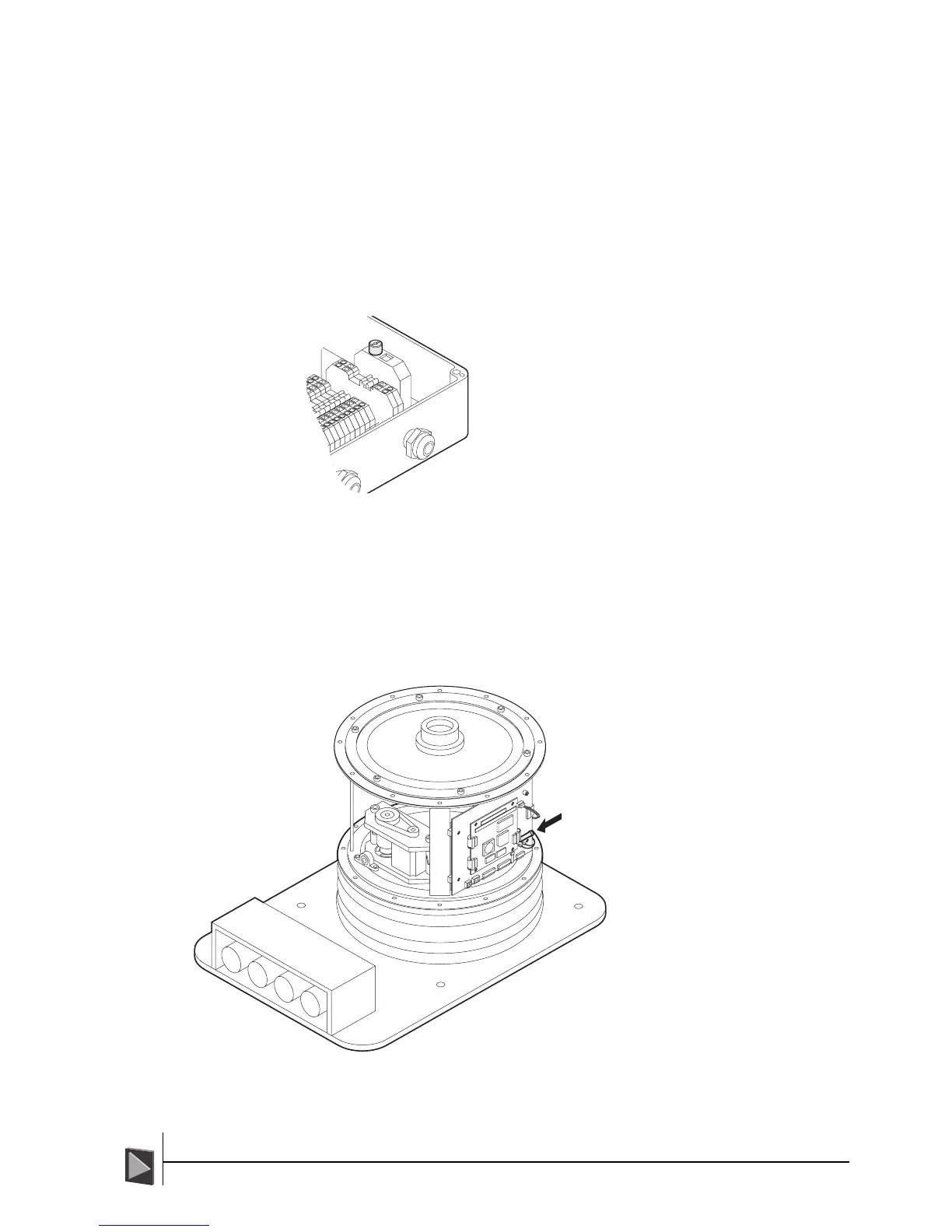

The CyScan system contains two fuses, their locations are:
• Inside the Power Supply Unit casing on the AC input
• On the Controller Board within the CyScan sensor housing on the DC input
1
2
3
4
5
6
7
8
9
10
11
12
3
16
15
14
13
Fuse specification:
20mm
4A rating
Slow Blow
Power Supply Unit Fuse
Controller Board Fuse
Fuse specification:
20mm
5A rating
Slow Blow
Please refer to the Maintenance
and Servicing section for details on
gaining access to the controller
board.
