34CyScan Positioning System • Installation and Maintenance Guide r1.1

GC S

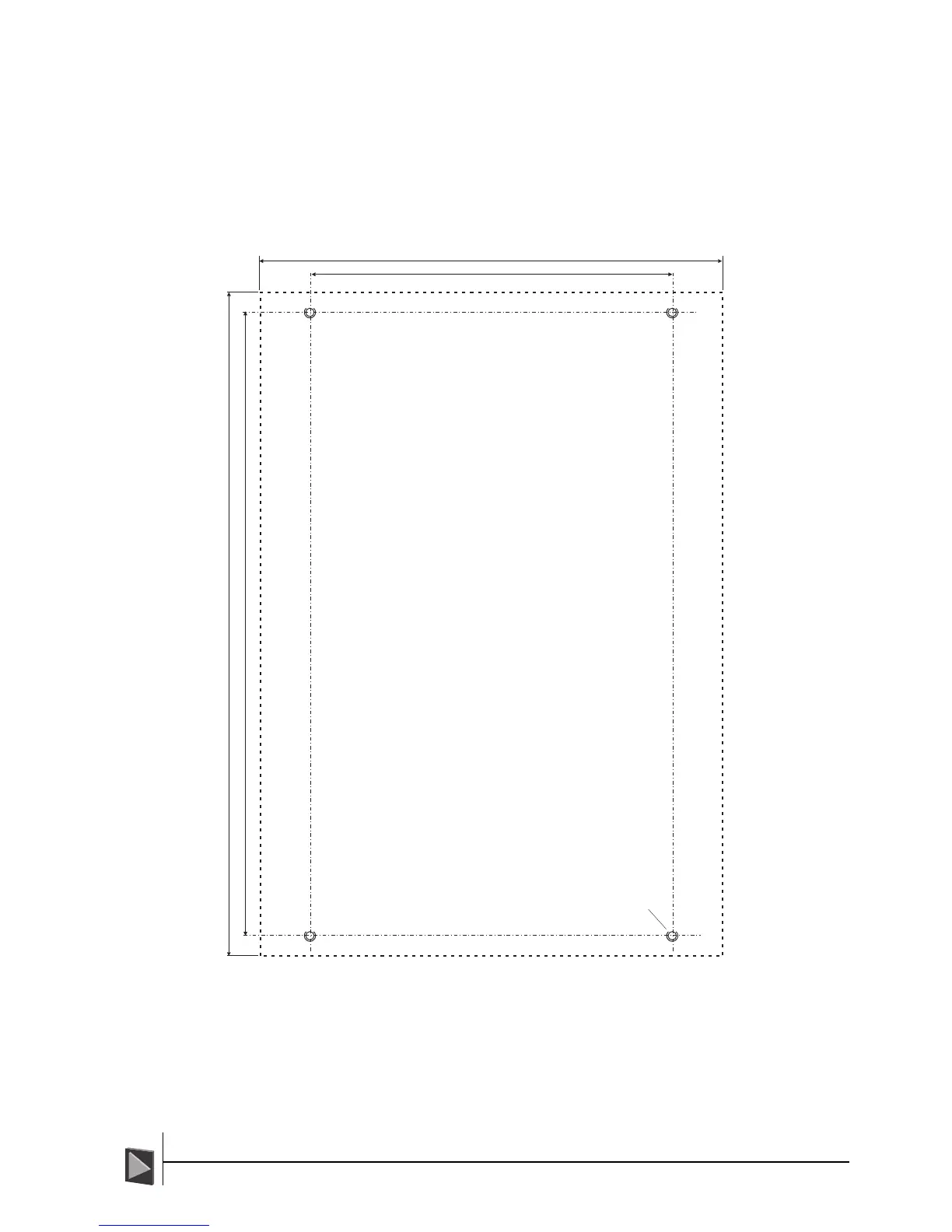

Appendix 3 - CyScan PSU Mounting Template

180

310

Height 230

Width 330

Allow incoming cable clearance as required on this side

Outline of PSU Housing

4 Holes M6

TOP

Allow housing depth

of 120mm

Allow 100mm cable

clearance at this side

The fixing holes for the PSU are located inside the unit - remove the lid for

access. Ensure that the PSU is located within 1m of the CyScan Sensor.
