33CyScan Positioning System • Installation and Maintenance Guide r1.1
GC S
GC S

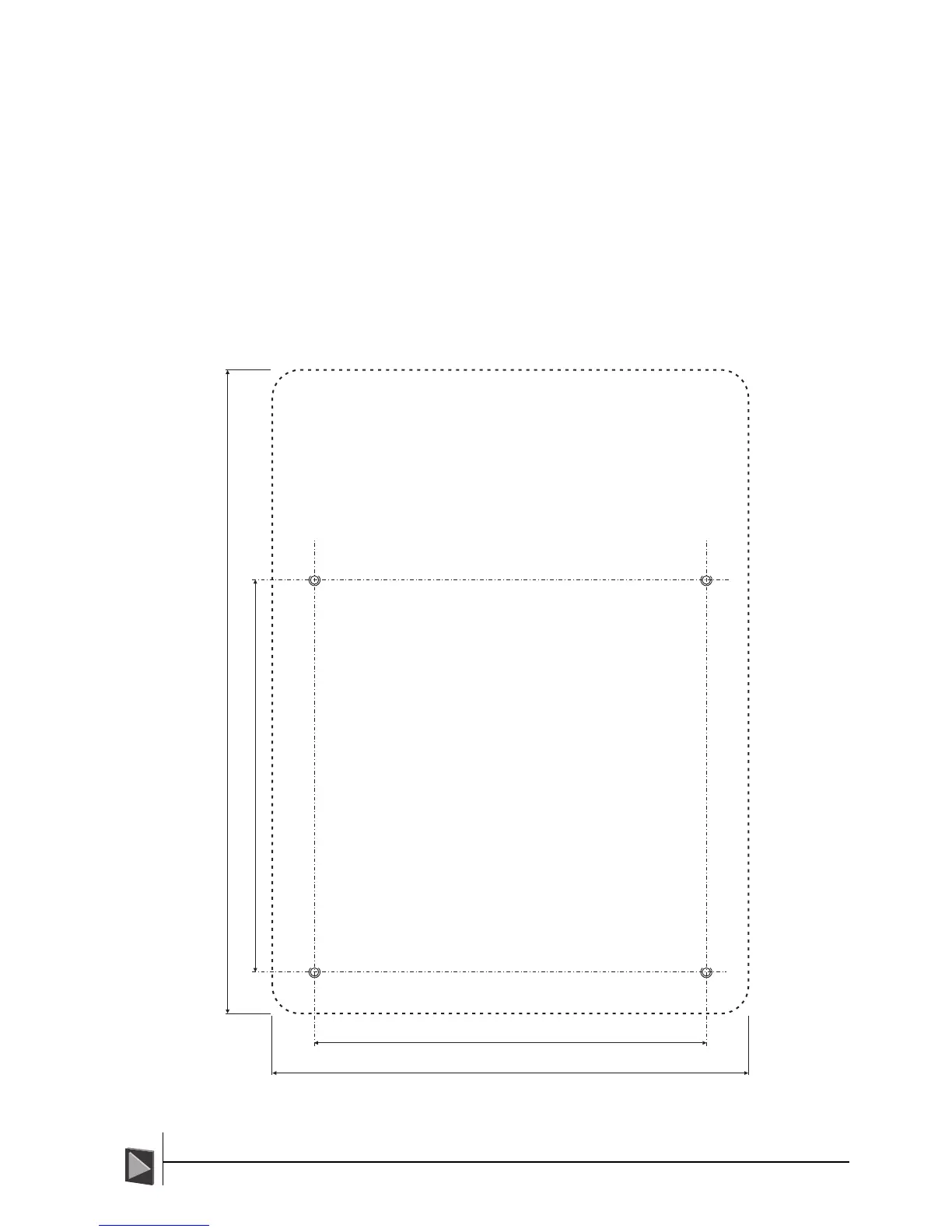

Appendix 2 - CyScan Sensor Mounting Template
280
280
Width 340
Length 460
Allow sensor height of 500mm from mounting plate
Outline of Sensor Baseplate
4 Holes M8
Allow 100mm cable
entry along this edge
Allow 300mm clearance around baseplate
on all sides to prevent any fouling of spinning rotor
STERNBOW
Mount the baseplate horizontal and
level with the bow and stern as shown.
