10 kW Generator
B
C
D
E
F
G
H
J

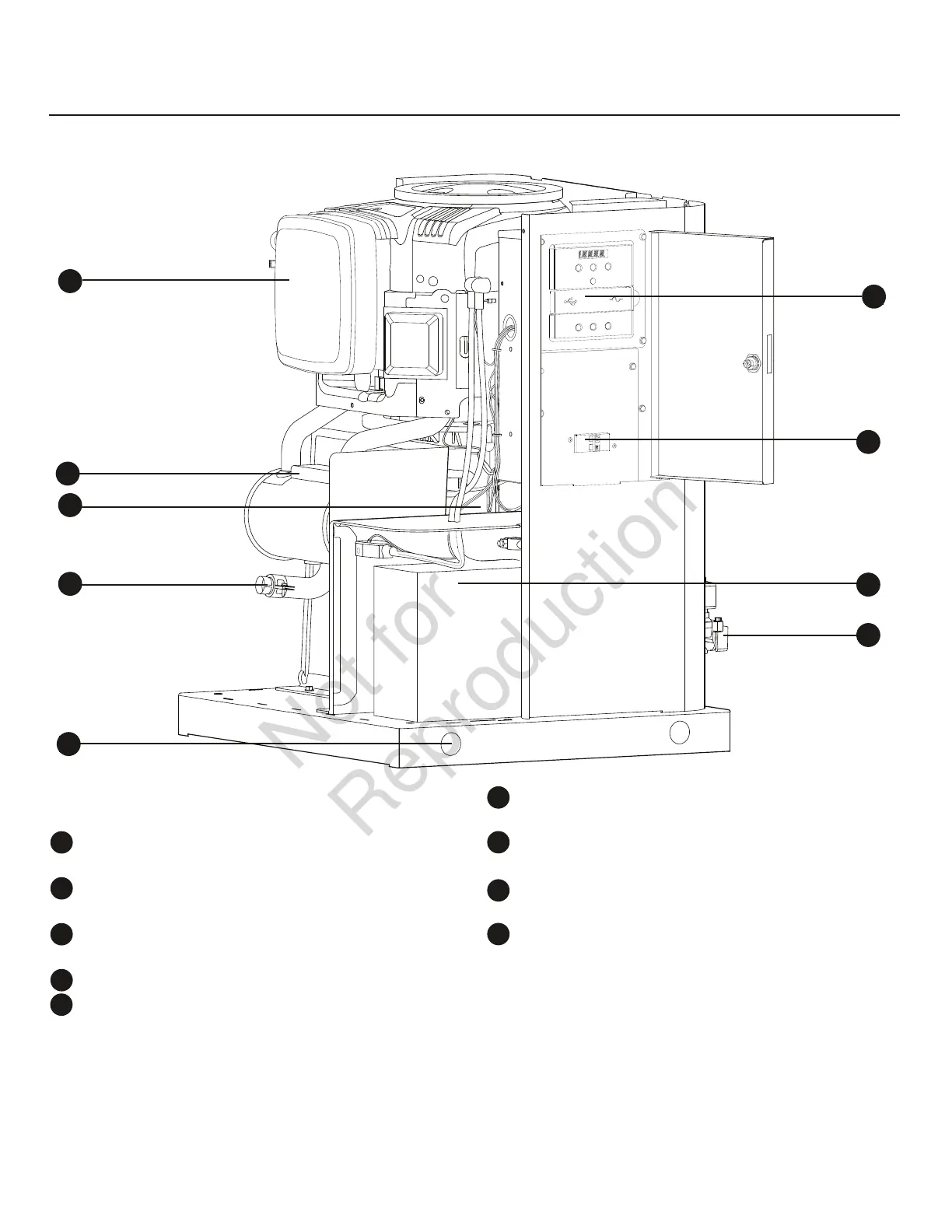

Generator is shown with roof and access covers removed
for clarity.
- Lifting Holes — Provided at each corner for
lifting generator.
- Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
- Alternator — An electrical machine that generates an
alternating current.
- Muffler — A device to reduce engine noise.
- Air Cleaner — Uses a dry type filter element and foam
precleaner to protect engine by filtering dust and debris out
of intake air.
- Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel.
- Circuit Breaker — Protects the system from shorts and
other over-current conditions.
- Battery — (installer supplied) — 12 Volt DC, sealed battery
provides power to start the engine.
- Fuel Inlet Port — Attach appropriate fuel supply to
generator here.
