Read this operator’s manual and Important Safety Instructions before operating your generator.
Compare the illustration with your generator to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
8kW Generator
Controls
B
A
C
D
E
F
G
H
J

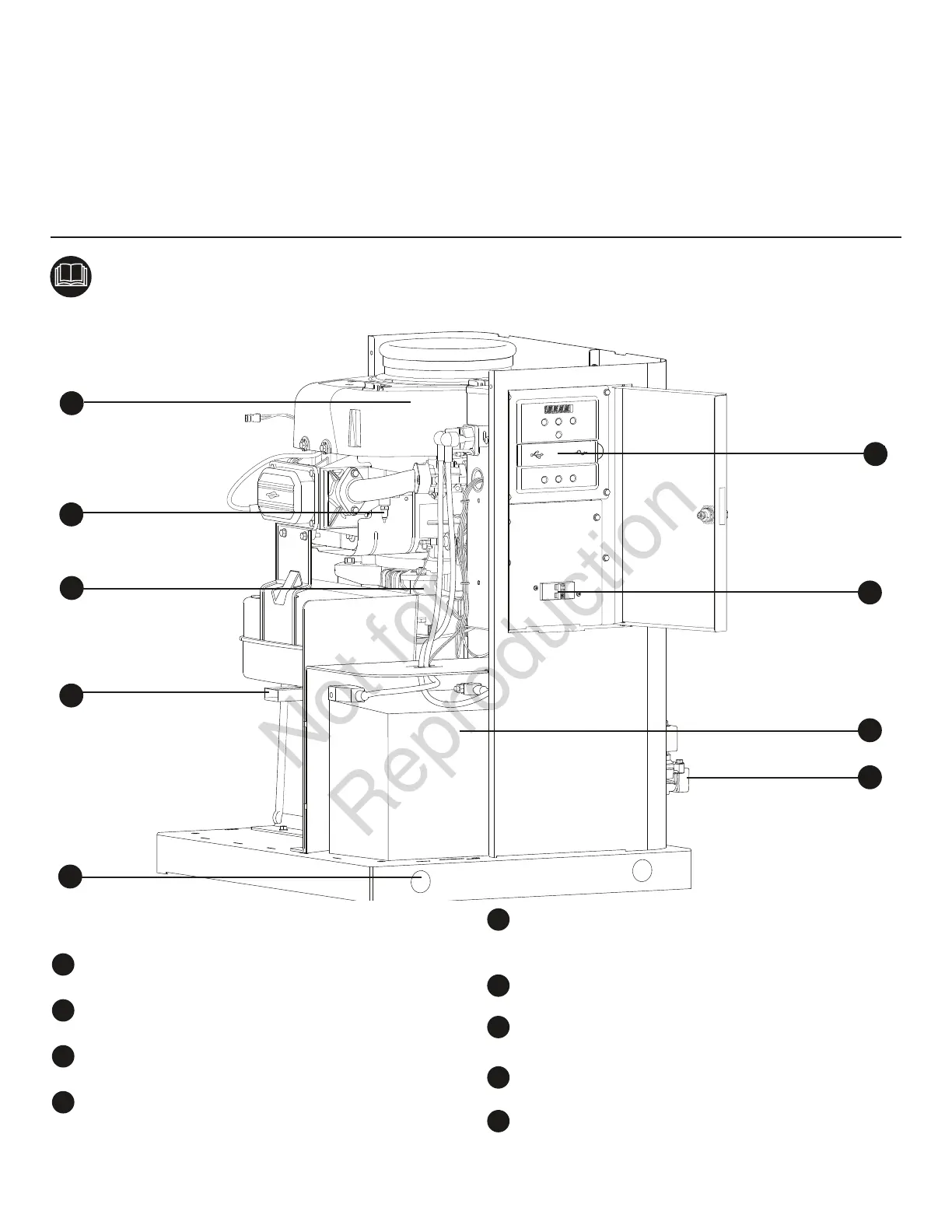

Generator is shown with roof and access covers removed
for clarity.
- Lifting Holes — Provided at each corner for
lifting generator.
- Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
- Alternator — An electrical machine that generates an
alternating current.
- Spark Plug — A device in the cylinder head of the engine
that ignites the fuel mixture by means of an electric spark.
- Air Cleaner — Uses a dry type filter element and foam
precleaner to protect engine by filtering dust and debris out
of intake air.
- Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel.
- Circuit Breaker — Protects the system from shorts and
other over-current conditions.
- Battery — (installer supplied) — 12 Volt DC, sealed battery
provides power to start the engine.
- Fuel Inlet Port — Attach appropriate fuel supply to
generator here.
