Wireless Monitor
The generator is supplied with a battery-powered, wireless
monitor.
The monitor communicates wirelessly with the generator
control panel. The monitor may be placed in a suitable
location in the home. The system has a line-of-sight range of
about 200 feet, but this distance will decrease if the signal
has to pass through walls or other objects.
The wireless monitor communicates with the generator,
every 10 minutes and will display the status via a green or
red LED light on the front of the monitor.
DEALER NAME
DEALER
PHONE
generator power
service needed
generator ready
system update
1 low battery voltage
2 low uid level
3 under/over voltage
4 engine does not start
part #: 316196 fcc id: MCQ-XBS2C IC id: 1846A-XBS2C
5 low frequency
6 engine overspeed
7 high temperature
8 transfer switch
# of flashes service needed
A
B
C
D
E
F
G

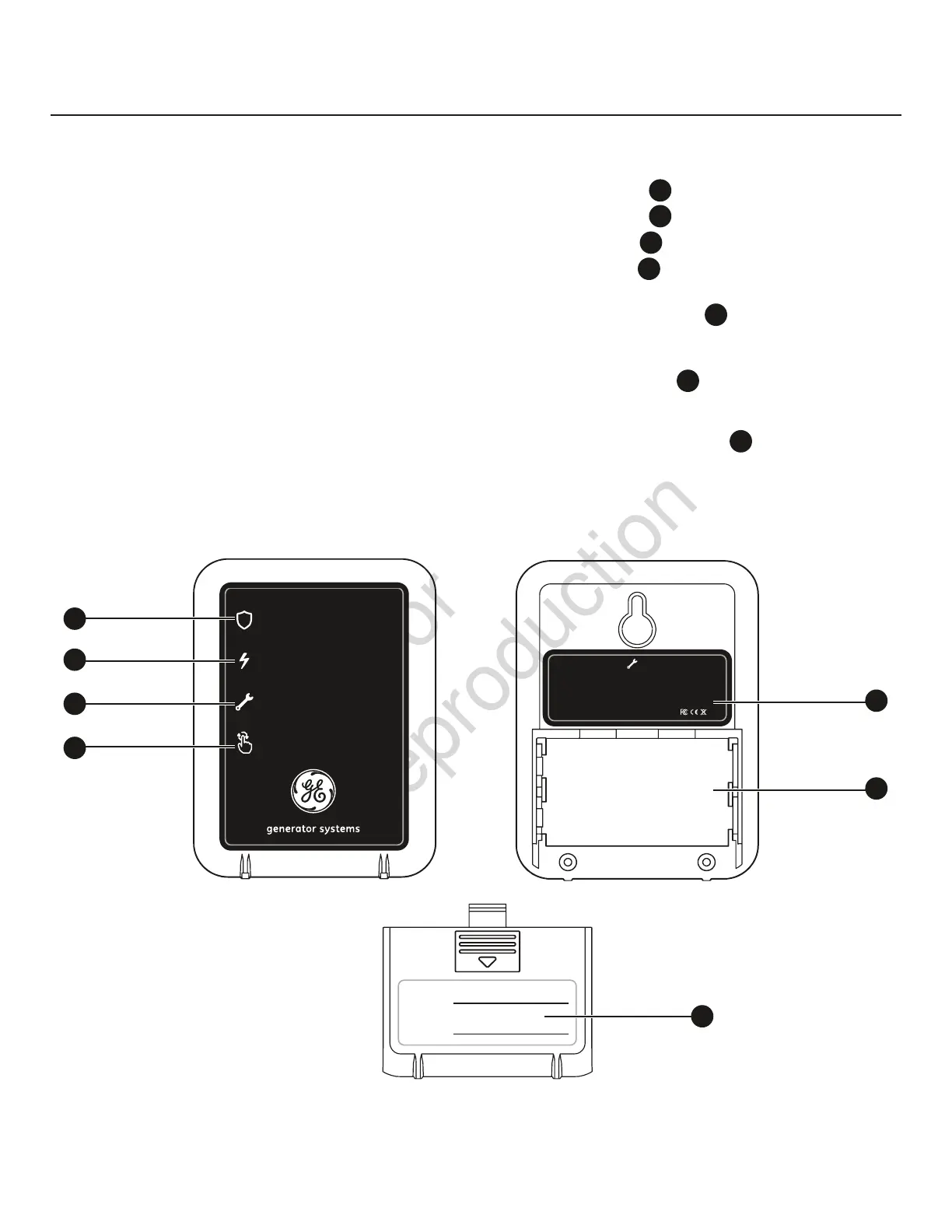

Compare the illustration below with your monitor to
familiarize yourself with these important components.
• Generator Ready (A) - Green LED
• Generator Power (B) - Green LED
• Service Needed (C) - Red LED
• System Update (D) - Press for current system update
with generator.
• Service code descriptions (E) - Name and number
of flashes are listed on the backside of the wireless
monitor.
• Battery Access Cover (F) - Record the dealer name
and phone number on the label provided. Once
removed, two non-rechargeable AA batteries are
installed in the compartment (). .
G
F
E
D
C
B
A
