9–2 850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 9: FLEXLOGIC AND OTHER SETPOINTS

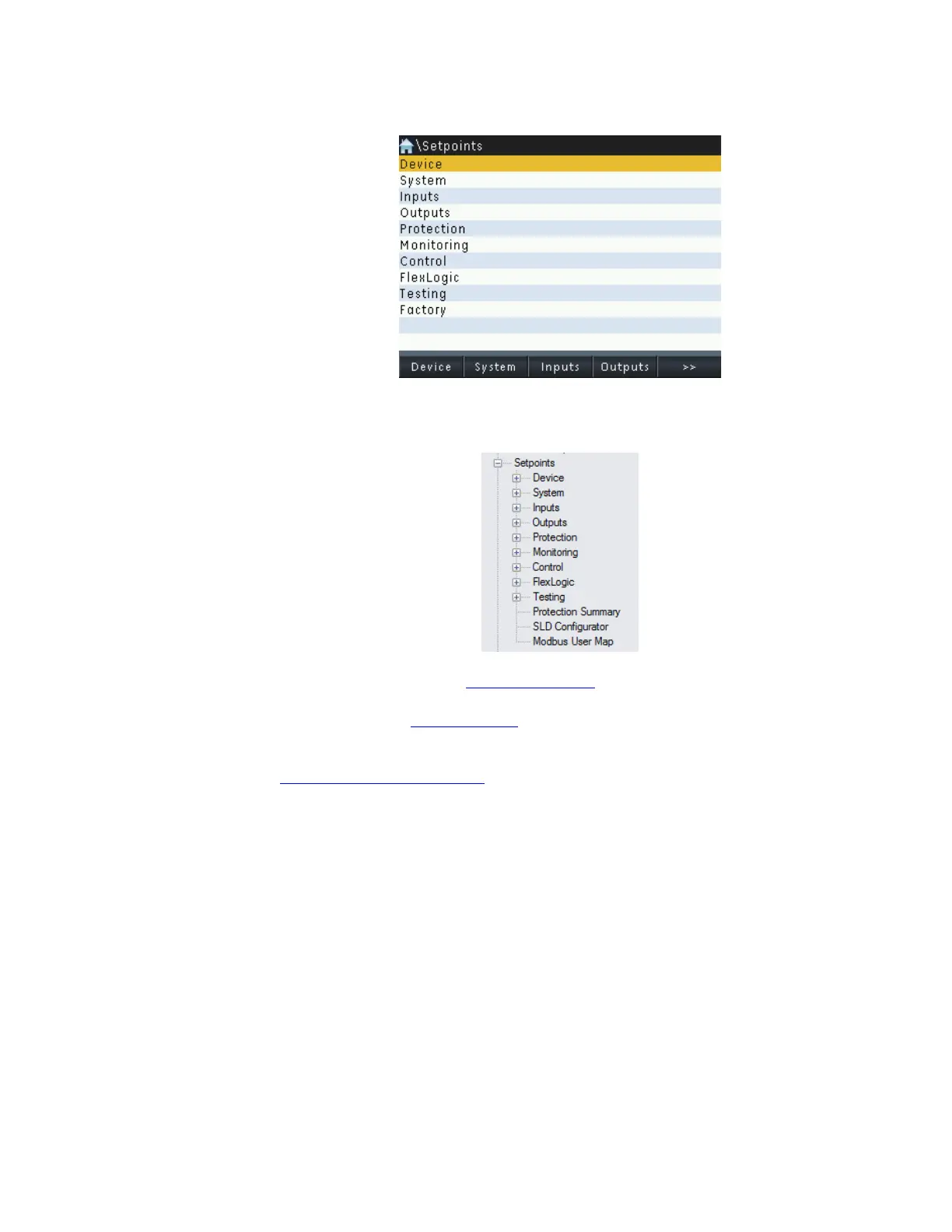

Figure 9-2: Main Setpoints HMI Screen
Factory setpoints, as seen in the HMI Main Setpoints Screen, are for GE internal use only.
These cannot be accessed by users.
Figure 9-3: Enervista 8 Series Setup software Setpoints Menu
The Protection Summary page, as seen in the EnerVista 8 Series Setup software Setpoints
menu, is described in detail in
Protection Summary.
The SLD Configurator, as seen in the EnerVista 8 Series Setup software Setpoints menu, is
described in detail in
SLD Configurator.
The Modbus User Map, as seen in the EnerVista 8 Series Setup software Setpoints menu, is
described in detail in the 8 Series Communication Guide that can be downloaded from
http://www.gegridsolutions.com/.
