CHAPTER 3: INTERFACES FRONT CONTROL PANEL INTERFACE
850 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 3–15
Home Screen Icons
The next figure shows the icons available on the front screen. For descriptions of these
screen icons see the following tables.

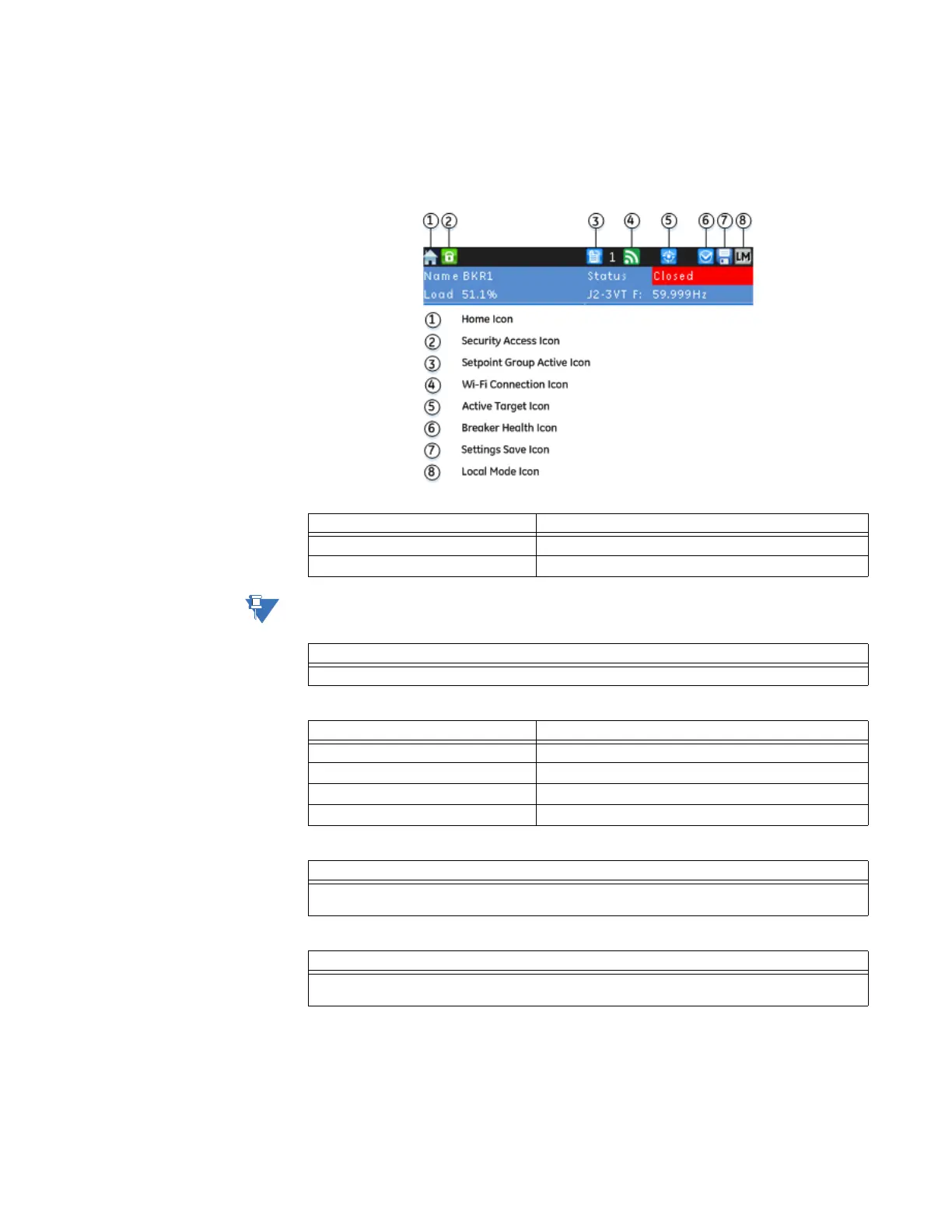

Figure 3-14: Home Screen Icons
Table 3-1: Security Icon
NOTE
NOTE:
The security icon only represents the security access level through the front panel.
Table 3-2: Setpoint Group Icon
Table 3-3: Wifi Icon
Table 3-4: Active Target Icon
Table 3-5: Breaker Health Icon
Security State Security Icon Color
User not logged in Icon is green and locked
User logged in Icon is red and unlocked
Description
Identifies the active setpoint group
Wifi State Wifi Icon Color
Disabled Icon is grey and crossed by a red line
Disconnected Grey
Connecting Orange
Connected Green
Description
When the target auto navigation setting is disabled, the message LED and the Active Target icon are
the only indication of active target messages.
Description
The Breaker Health icon is blue when the setting for the breaker health function is not disabled.
When the setting is disabled the icon is grey.
