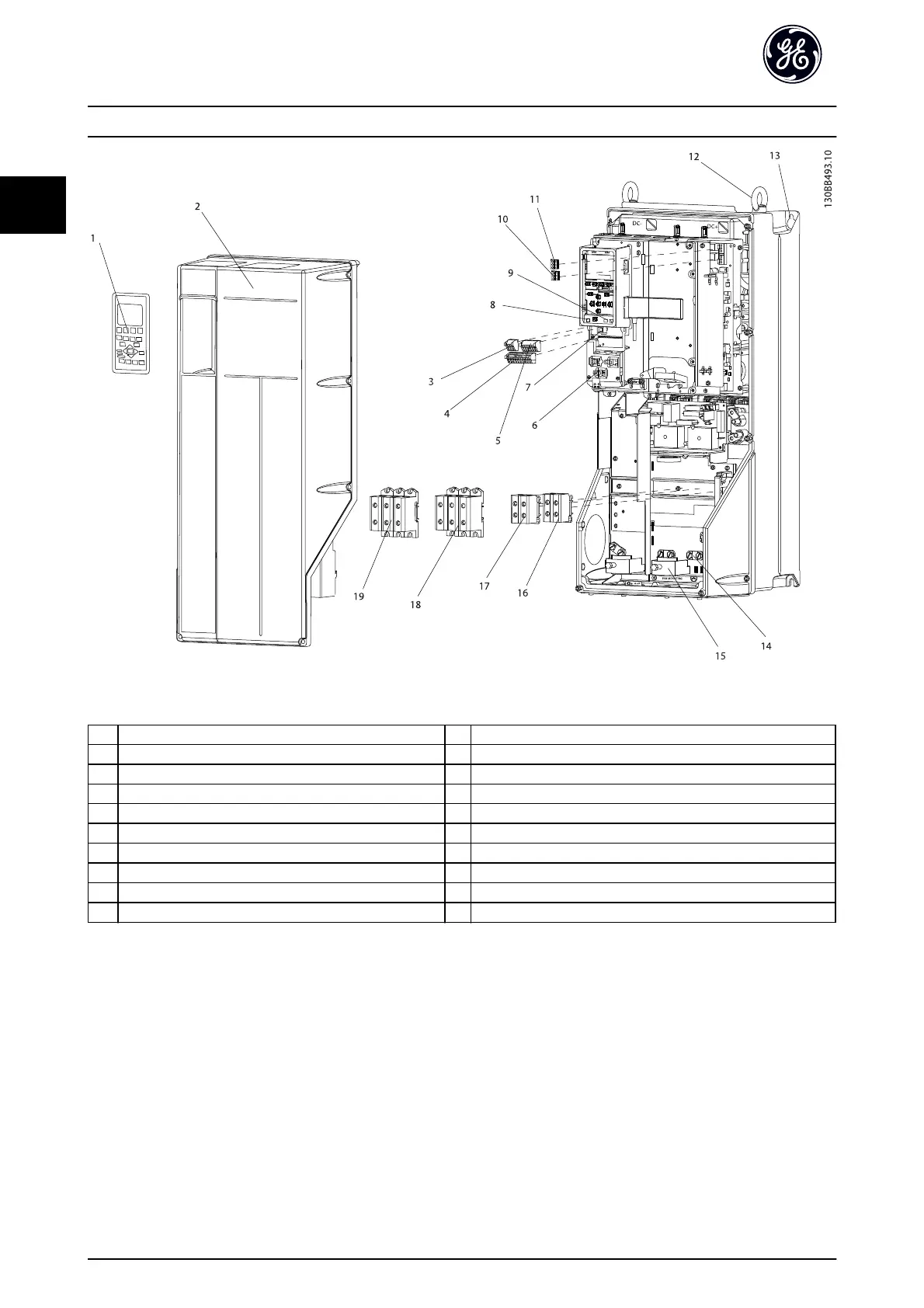

Illustration 1.2 Exploded View Unit Sizes 15, 21, 22, 31, and 32
1 Keypad 11 Relay 2 (04, 05, 06)
2Cover 12Lifting ring
3 RS-485 serial bus connector 13 Mounting slot
4 Digital I/O and 24 V power supply 14 Grounding clamp (PE)
5 Analog I/O connector 15 Cable strain relief / PE ground
6 Cable strain relief/PE ground 16 Brake terminal (-81, +82)
7 USB connector 17 Load sharing terminal (DC bus) (-88, +89)
8 Serial bus terminal switch 18 Motor output terminals 96 (U), 97 (V), 98 (W)
9 Analog switches (A53), (A54) 19 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
10 Relay 1 (01, 02, 03)
Table 1.2 Legend to Illustration 1.2
Introduction
AF-600 FP
TM
Design and Installation Guide
6DET-768b
1
