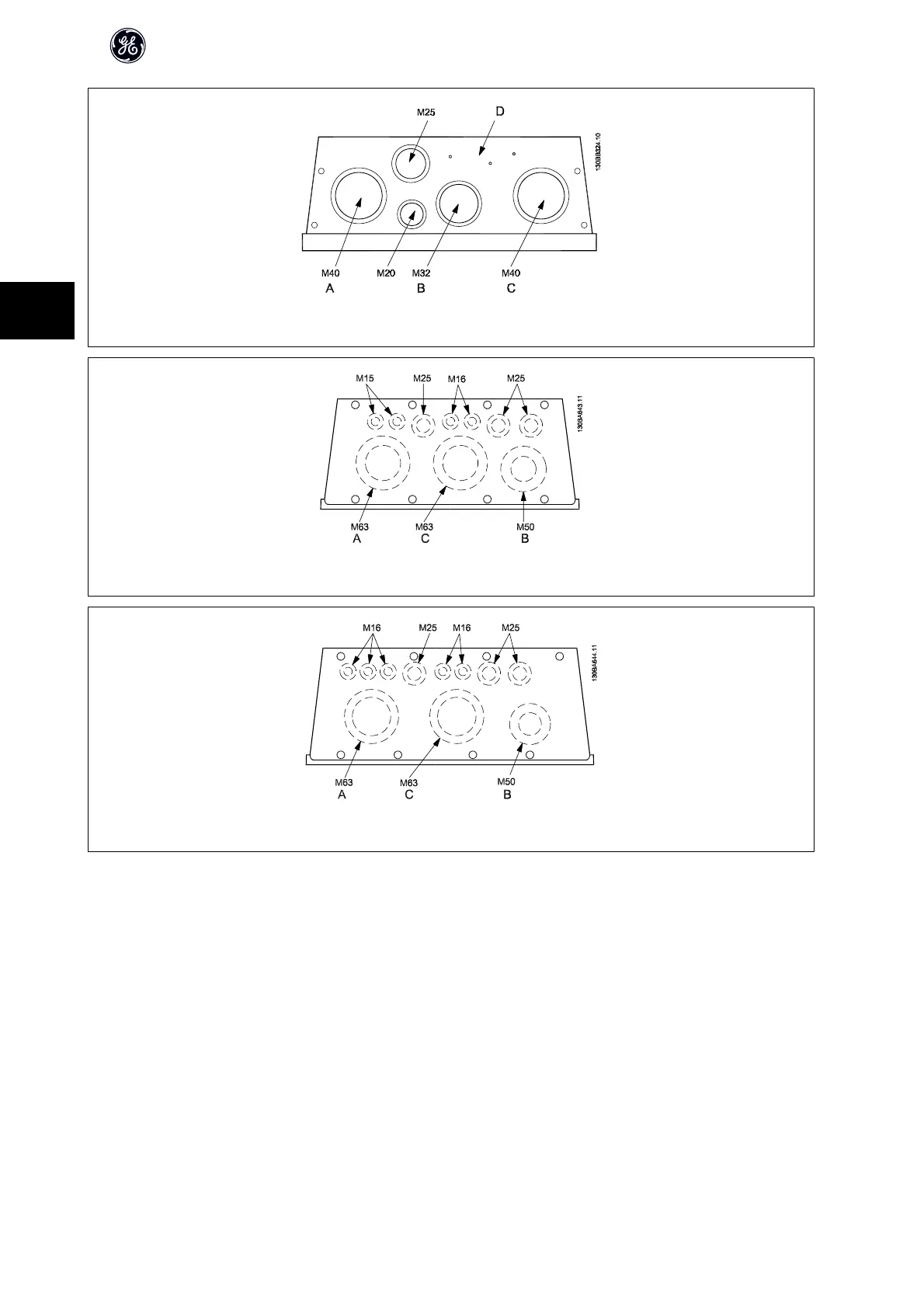

Illustration 4.13: Cable entry holes for unit size 22. The suggested use of the holes are purely recommendations and other solutions are possible.
Illustration 4.14: Cable entry holes for unit size 31. The suggested use of the holes are purely recommendations and other solutions are possible.
Illustration 4.15: Cable entry holes for unit size 32. The suggested use of the holes are purely recommendations and other solutions are possible.
Legend:
A: Line in
B: Load sharing
C: Motor out
D: Free space
