4.3 Final Set-Up and Test
To test the set-up and ensure that the frequency converter is running, follow these steps.

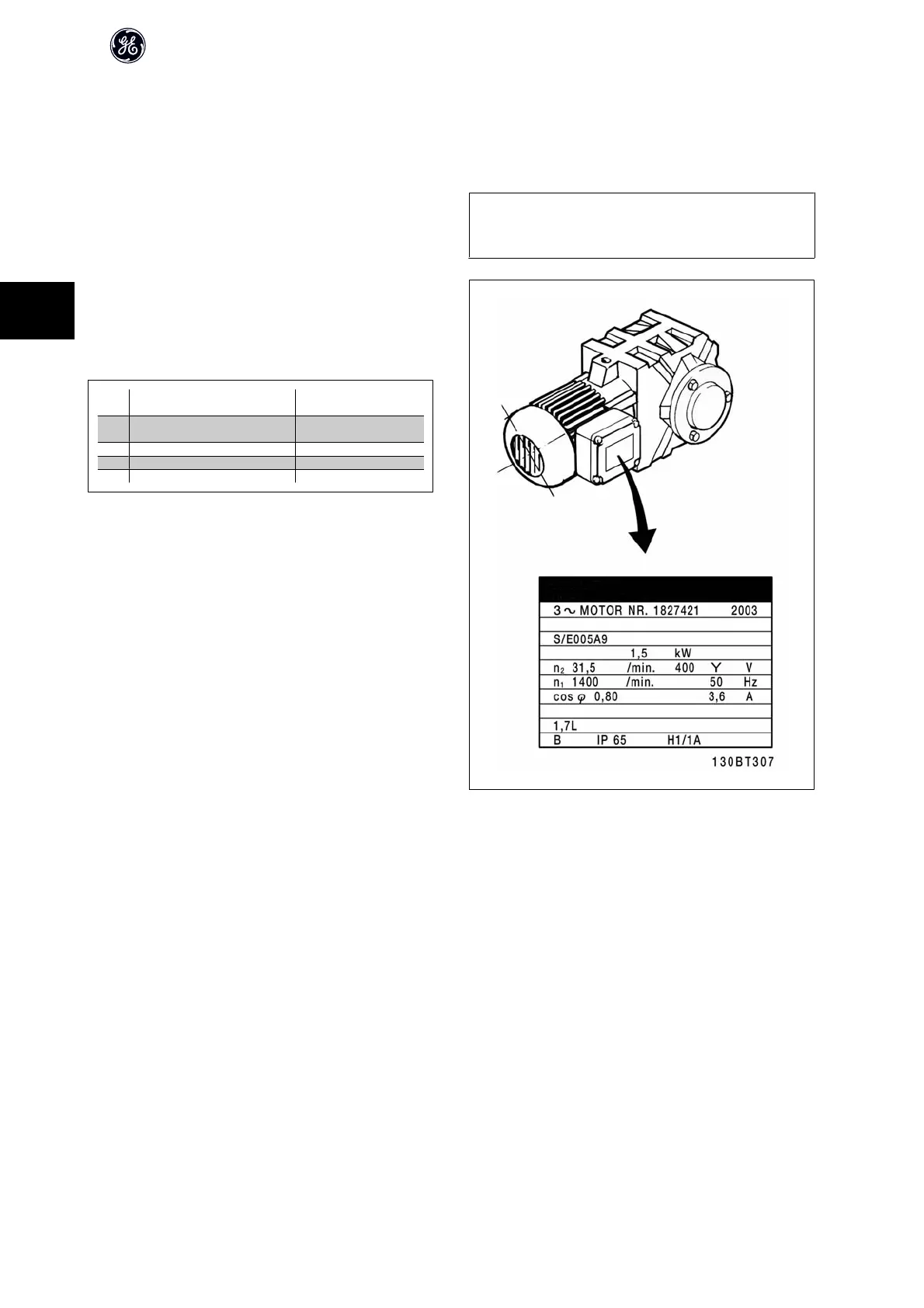

Step 1. Locate the motor name plate
NB!
The motor is either star- (Y) or delta- connected (). This information is lo-
cated on the motor name plate data.
Step 2. Enter the motor name plate data in this parameter list.
To access this list first press the [QUICK MENU] key then select “Q2 Quick
Setup”.
1.
Motor Power [kW]
or Motor Power [HP]
par. P-07 Motor Power [kW]
par. P-02 Motor Power [HP]
2. Motor Voltage par. F-05 Motor Rated Volt-
age
3. Motor Frequency par. F-04 Base Frequency
4. Motor Current par. P-03 Motor Current
5. Motor Nominal Speed par. P-06 Base Speed
Step 3. Activate the Auto Tune
Performing an auto tune will ensure optimum performance. The auto tune measures the values from the motor model equivalent diagram.
1. Activate the auto tune par. P-04 Auto Tune.
2. Choose between complete or reduced auto tune. If an LC filter is mounted, run only the reduced auto tune, or remove the LC filter during the auto tune
procedure.
3. Press the [OK] key. The display shows “Press [Hand] to start”.
4. Press the [Hand] key. A progress bar indicates if the auto tune is in progress.
