6 Application Setup Examples
6.1 Introduction
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
K-03 Regional Settings)
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
•
Where switch settings for analog terminals A53 or
A54 are required, these are also shown.

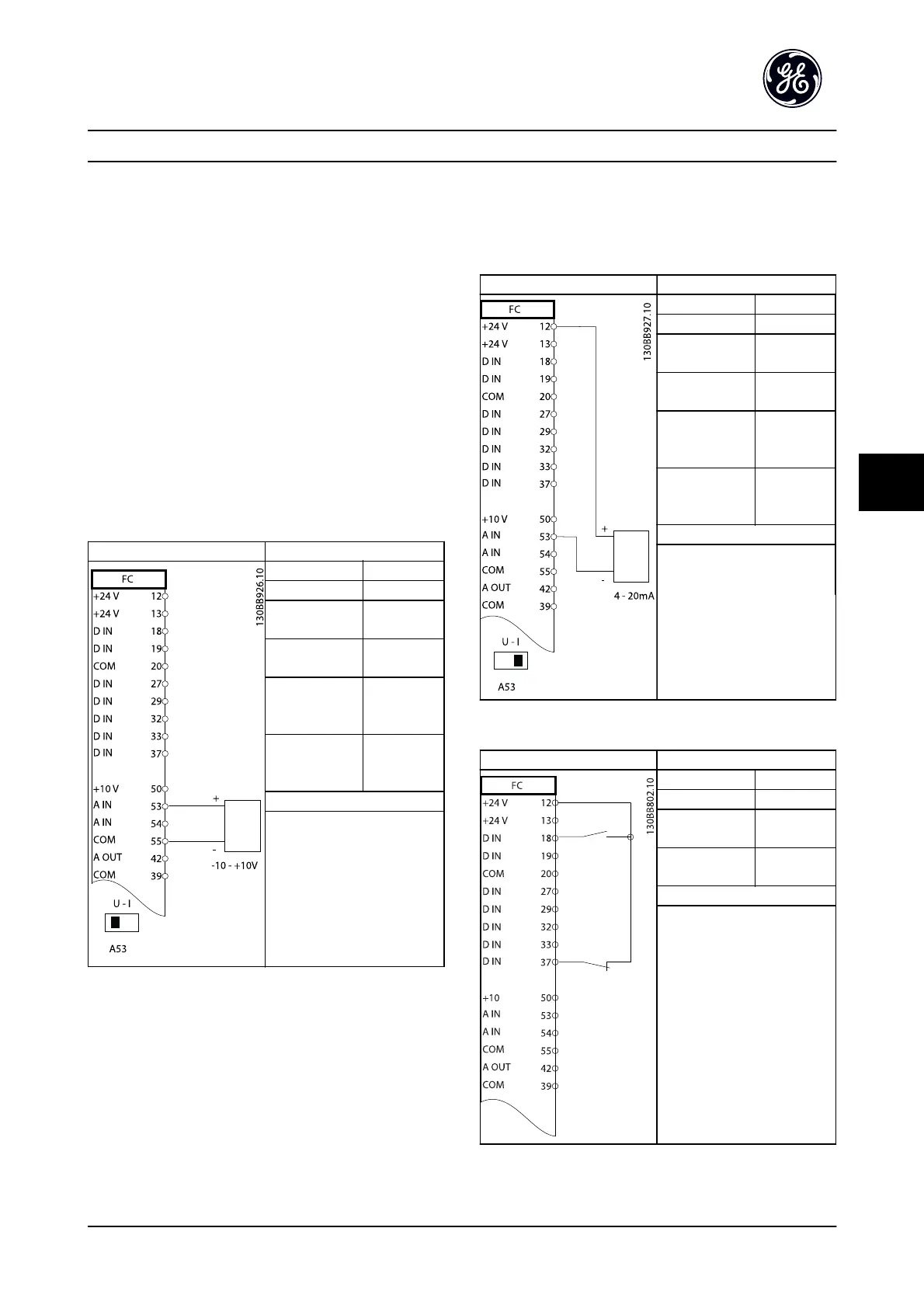

6.2 Application Examples
Parameters
Function Setting
AN-10 Terminal
53 Low Voltage 0.07 V*
AN-11 Terminal
53 High Voltage
10 V*
AN-14 Terminal
53 Low Ref./
Feedb. Value
0 RPM
AN-15 Terminal
53 High Ref./
Feedb. Value
1,500 RPM
* = Default Value
Notes/comments:
Table 6.1 Analog Speed Reference (Voltage)
Parameters
Function Setting
AN-12 Terminal
53 Low Current
4 mA*
AN-13 Terminal
53 High Current
20 mA*
AN-14 Terminal
53 Low Ref./
Feedb. Value
0 RPM
AN-15 Terminal
53 High Ref./
Feedb. Value
1,500 RPM
* = Default Value
Notes/comments:
Table 6.2 Analog Speed Reference (Current)
Parameters
Function Setting
E-01 Terminal 18
Digital Input
[8] Start*
E-07 Terminal 37
Safe Stop
[1] Safe Stop
Alarm
* = Default Value
Notes/comments:
Table 6.3 Start/Stop Command with Safe Stop
