AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
4−2
The drive automatically adjusts to your pace, and can be pushed forward, turned or
pulled in reverse at speeds of up to 3 mph (4.8 km per hour).
A self−stopping bumper at the front of the unit automatically activates the brakes and
turns off the drive motors upon impact, to help prevent accidents. If the bumper is en-
gaged, simply grip the drive handle and pull the unit in reverse. (As with any mobile
equipment, however, when driving the unit be sure to exercise reasonable care.)
With the telescoping arm extended for a patient exam, the AMX−4+ pivots on the
spot, rotating and maneuvering easily for exact positioning. Again, grip the drive han-
dle and turn the unit to the desired position.
AMX−4+ maneuvering speed is automatically reduced by 50 percent when the tele-
scoping arm is extended.

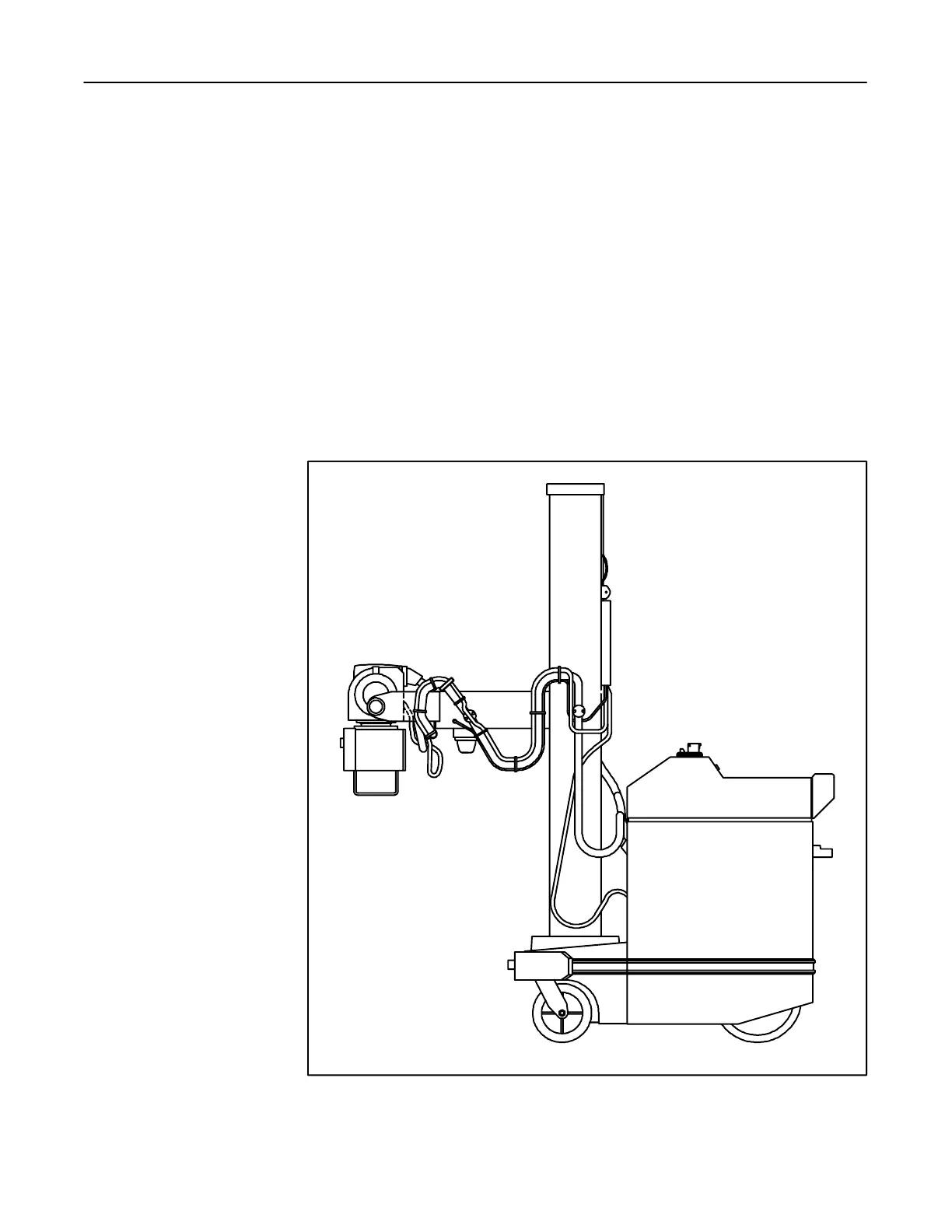

ILLUSTRATION 4−2
ARM EXTENDED
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
