AMX−4+ OPERATION
GE MEDICAL SYSTEMS (MODEL 2169360, 2236420 & 2275938 SERIES)
REV 10 om 2166913−100
5−7
9. You may rotate the collimator about its vertical axis (that is, to the right or left)
in two ways: by a simple 90_ detent method or by a manual lock method for an
angle other than 90_.
D 90−degree detent method: Pull out the knob (see Illustration 5−7) and rotate
the collimator to the desired 90_ detent position. The detent will snap in
place and lock.
D Manual lock method: Pull out the knob, position the collimator to the desired
angle (other than 90_ detent), and turn the knob clockwise to secure. (Turn
the knob counterclockwise to unlock the collimator and reposition.)
10. Continue with Technique Selection in Section 5−6.

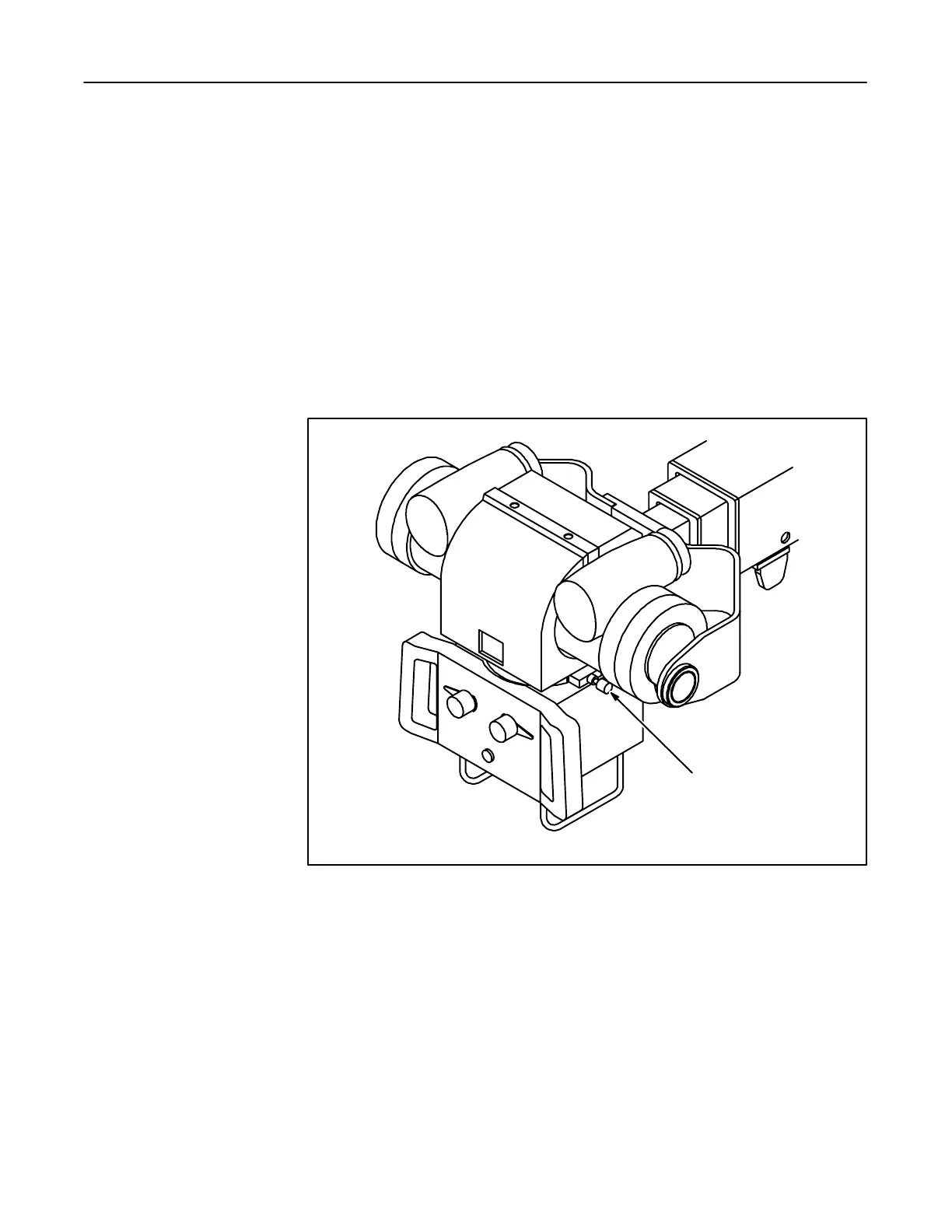

ILLUSTRATION 5−7
COLLIMATOR
ROTATION
KNOB
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
