GE b30 Technical Reference Manual

B30 Patient Monitor
5-10
Document no. 2044677-001
Smart Batt2
If S
mart
B
attx
i
s se
l
ecte
d f
or a
b
attery

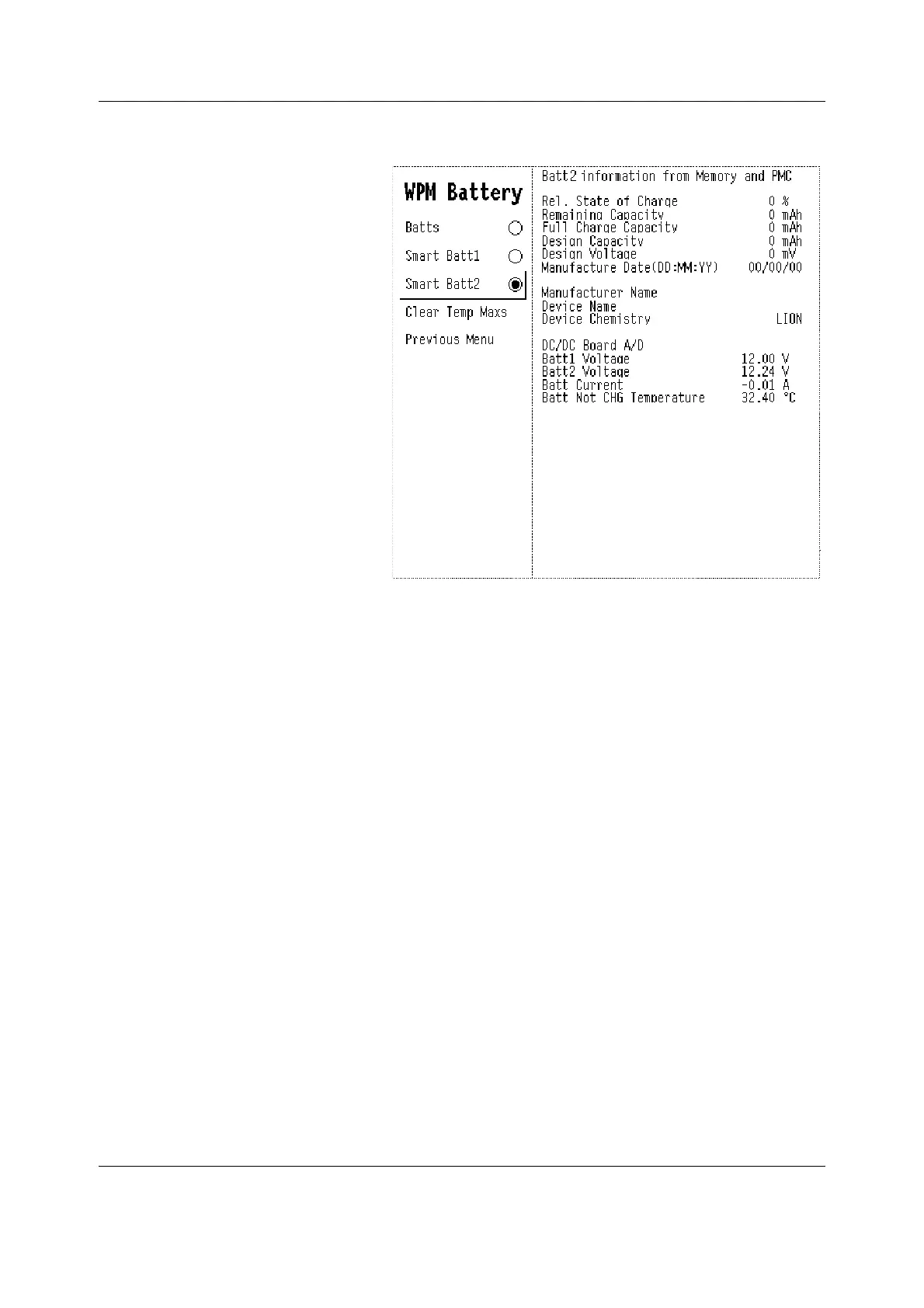

NOT connected to the SMBus, the menu
contains the following:
Battx information from Memory and PMC
(This information comes from the DC/DC
Board memory or is measured by the
DC/DC Board. SMBus data in this menu is
not real time, because this battery is not
connected to the SMBus).
NOTE: This page may not contain
information if SMBus has been connected
only to the other battery. Page can be
updated by battery disconnection and
reconnection, if desired.
Rel. State Charge: Relative state of charge
of the battery. Expressed as a percentage
of Rem. Cap. (mAh) / Full Cap.(mAh).
Remaining Capacity: Remaining battery
capacity (mAh).
Full Charge Capacity: Capacity of the
battery when it is fully charged.
Design Capacity: Theoretical capacity of a
new battery.
Design Voltage: Theoretical value for nominal voltage of a new battery.
Manufacturer Date (DD:MM:YY): The date the battery pack was manufactured
Manufacturer Name: Acronym of the battery pack manufacturer name.
Device Name: Battery pack model name.
Device Chemistry: Battery chemistry of the cells used.
Batt1 Voltage: Battery A voltage measured at the DC/DC Board.
Batt2 Voltage: Battery B voltage measured at the DC/DC Board.
Batt Current: Battery current (discharge or charge) for the battery connected to SMBus.
Measured at the DC/DC Board.
Batt Not CHG Temperature: This is subject to change.
