Frame disassembly
6-13
Document no. 2044677-001

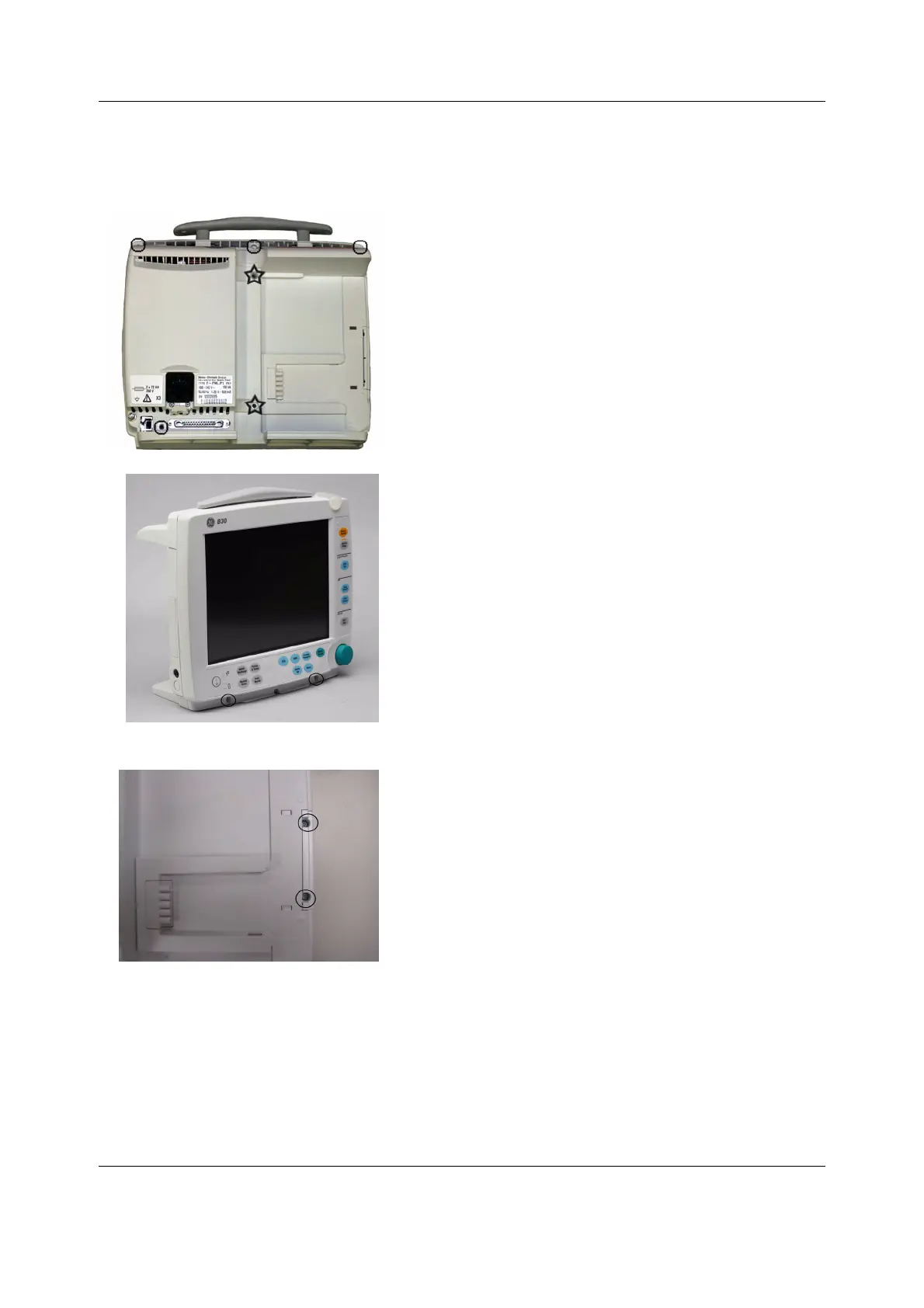

To separate the back cover from
the monitor frame
1. From the back side of the monitor, remove:
- both batteries
- Multi I/O adapter
- the fuse holder
- three (T8) screws from the top of the back cover
- two (T15) screws with star washers
- one (T15) screw
Notice the places of the star washers.
2. Remove the two (T15) screws from the front side of the
monitor.
3. Remove the two (T8) screws from the datacard slot.
