B30 Patient Monitor
6-26
Document no. 2044677-001

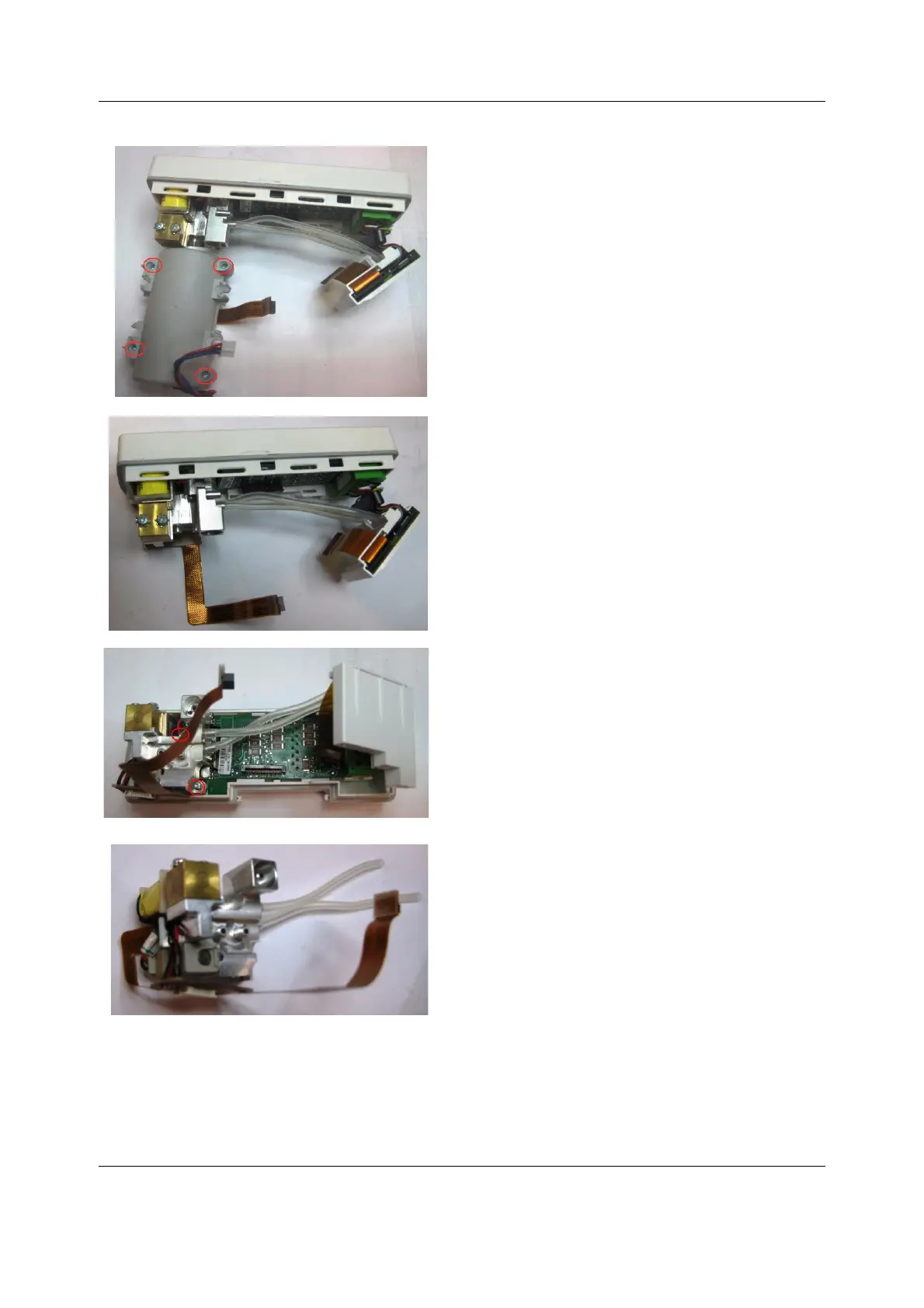

- Remove the four screws (T6) with washers holding the
NIBP pump to the frame.
- Carefully remove the front unit together with the NIBP
pump.
- Disconnect the hoses from the manifold. The hoses
follow the pump.
- Remove the NIBP pump.
- Disconnect the two (T6) screws holding the manifold to
the front cover unit.
- Lift the manifold carefully aside. Be careful not to
damage the NIBP flex board. Disconnect the NIBP flex
board connector from the STP input board.
NOTE: When reassembling, make sure that the NIBP flex
board connector is connected properly (all pins
connected) to the STP input board.
