E-PSM(P)W module disassembly
6-29
Document no. 2044677-001
Reassemble the module in reverse order.
Always perform the “Functional check” after reassembling the module.

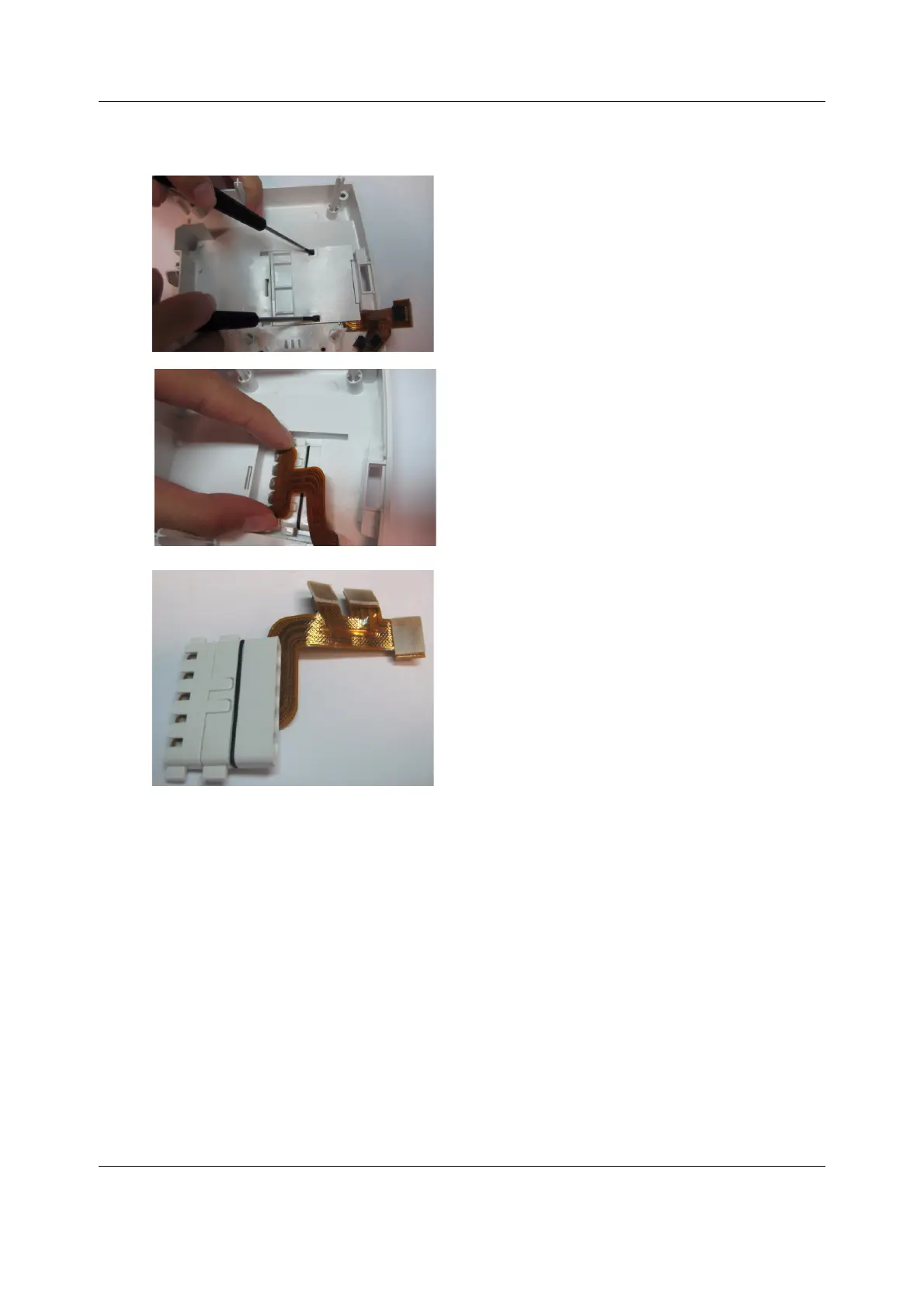

To remove the module bus connector
5. Use a flat blade screwdriver to unlock the
module bus connector insulator cover.
Put the screwdriver in the hole and move the
blade backwards (away from the flex cable)
until the insulator cover unlocks.
6. Pull the module bus connector carefully
through the hole in the frame.
