B30 Patient Monitor
2-5
Document no. 2044677-001

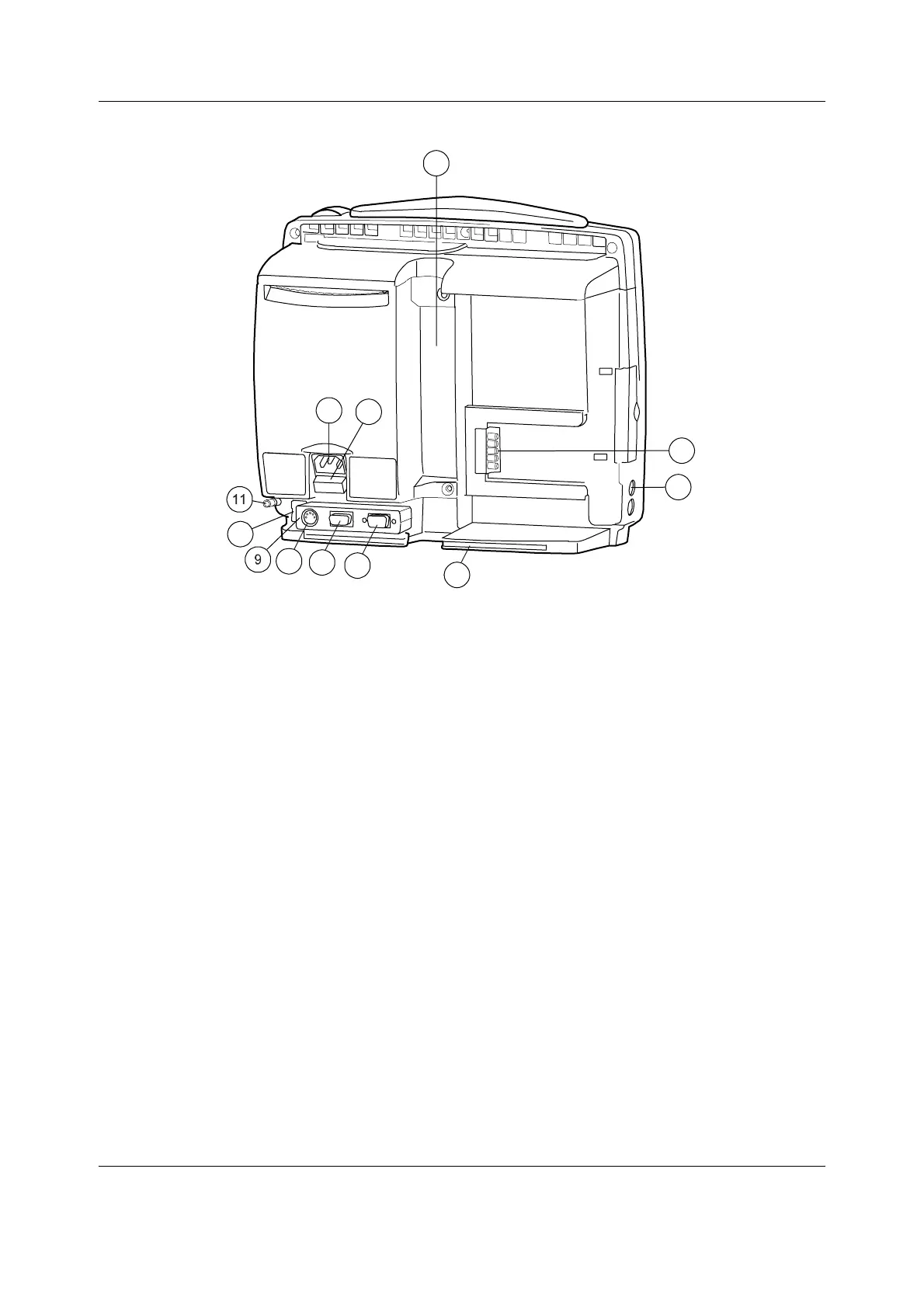

Figure 5 Rear panel connections
(1) Slot for infusion pole mounting
(2) Module connector
(3) Guide rail for GCX mounting
(4) Receptacle for power cord
(5) Fuse holder
(6) Serial port X9
(7) Network ID X8
(8) Connector for future use X7
(9) Optional: Multi I/O adapter incorporating connectors 6 - 8 mentioned above
(10) Network connector X1
(11) Equipotential connector
(12) Defibrillator & IABP sync connector X5
4
1
2
8
3
7
6
5
10
12
