7-8 170 Series Monitor Revision C
2000947-004
Serviceable Assemblies: Transducer Plug Replacement Kits

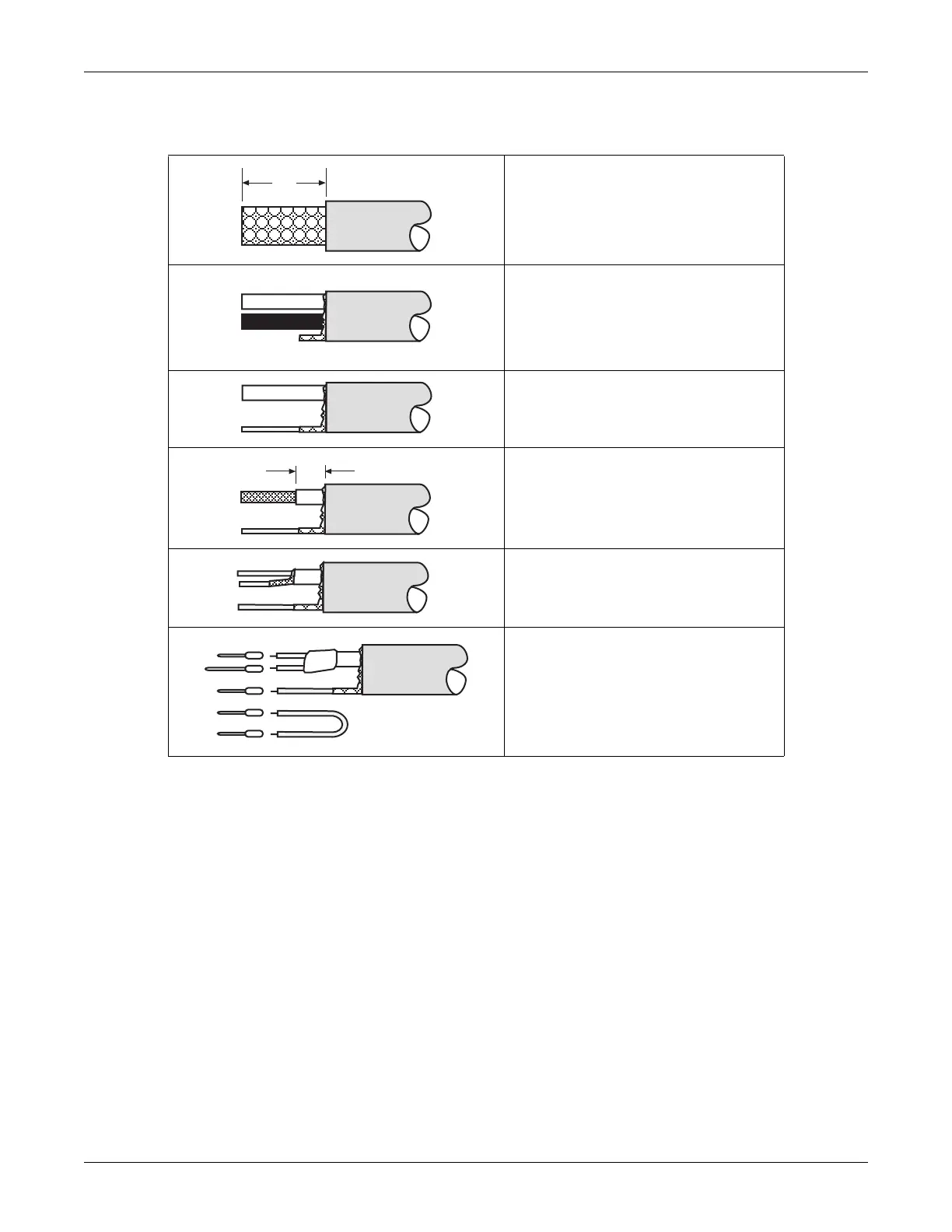

Figure 7-2. Ultrasound Transducer Cable Preparation
Score around length of jacket 1inch. Peel
jacket and remove.
Separate outer braided shield and twist.
For Standard ultrasound transducers, the
cable is a dual coaxial cable.
For Nautilus ultrasound transducers, the
cable is a single coaxial cable.
If present, cut black coax and fillers flush
with grey jacket.
Solder #24 AWG green wire to outer shield.
Score around white jacket leaving
3
⁄16 inch.
Separate inner braided shield and twist.
Solder #24 AWG green wire to inner shield.
Apply shrink tubing over clear wire and
solder joint of inner shield.
Strip conductors
1
⁄8 inch. Twist and tin
conductors.
Solder contact pins to conductors and
jumper wire.
1²
²
3
16
¤
To Next Page
