GE Corometrics 172 Service Manual

Revision C 170 Series Monitor 8-19
2000947-004
Peripheral Devices: RS-232 Connectors

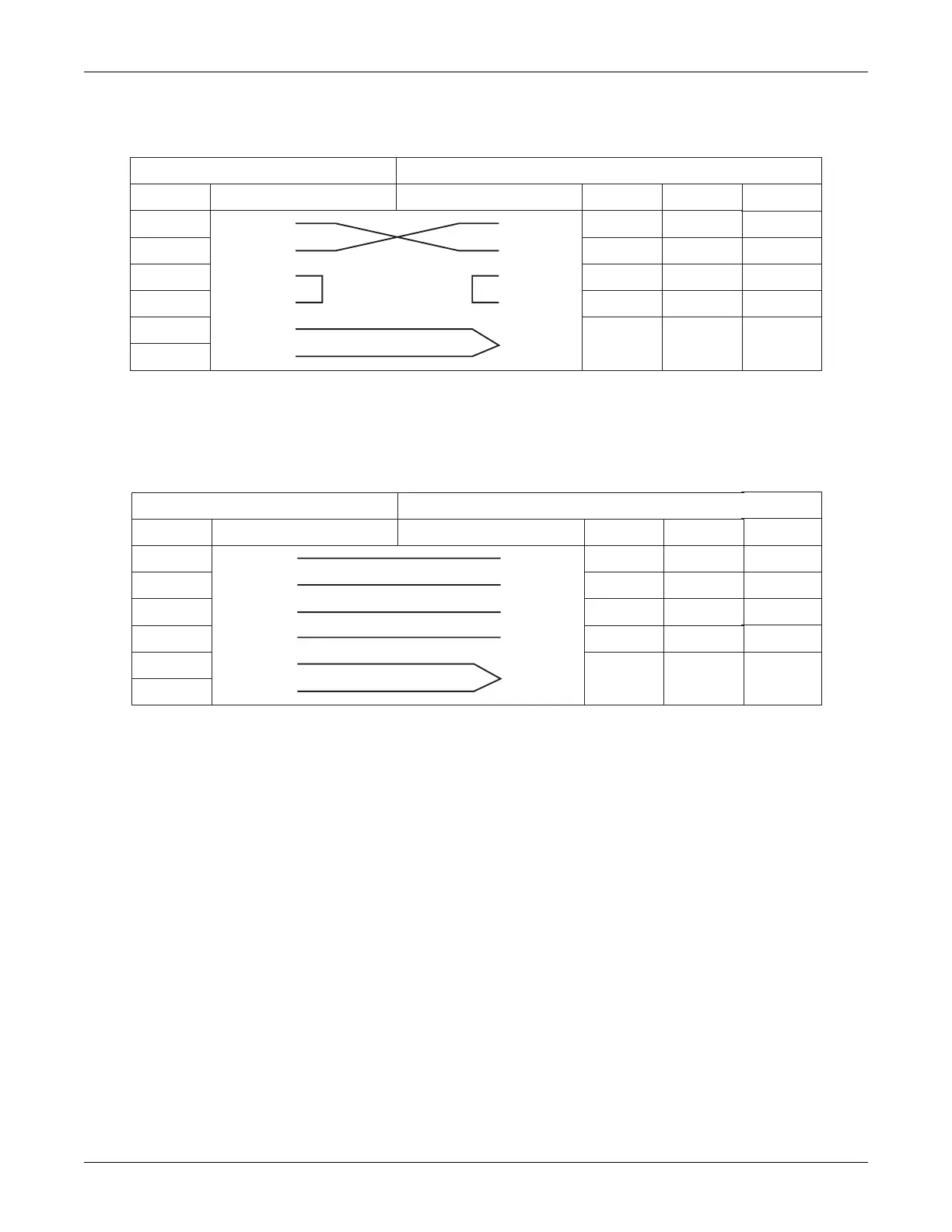

Figure 8-5. Standard Null-Modem Cable
Figure 8-6. Standard Normal-Modem Cable
170 SERIES MONITOR SIDE DATA TERMINAL EQUIPMENT (DTE) SIDE
8-PIN SIGNAL NAME SIGNAL NAME 25-PIN 9 PIN
6 TXD TXD 2 3
3RXD RXD32
2RTS RTS47
7 CTS CTS 5 8
4
5
GND
GND
75
GND
6 PIN
2
5
1
6
3
170 SERIES MONITOR SIDE DATA TERMINAL EQUIPMENT (DTE) SIDE
8-PIN SIGNAL NAME SIGNAL NAME 25-PIN 9 PIN
6 TXD TXD 2 3
3 RXD RXD 3 2
2 RTS* RTS 4 7
7 CTS* CTS 5 8
4
5
GND
GND
75
GND
6 PIN
5
2
1
6
3
