Field replaceable units: Remove or replace handle assembly
2000966-542D Dash 3000/4000/5000 7-17
n. Continue to wrap the antenna cables towards the righthand side
of the antenna label. Lift up the lefthand side of the secured
antenna label and re-secure the additional cable loops under the
label.

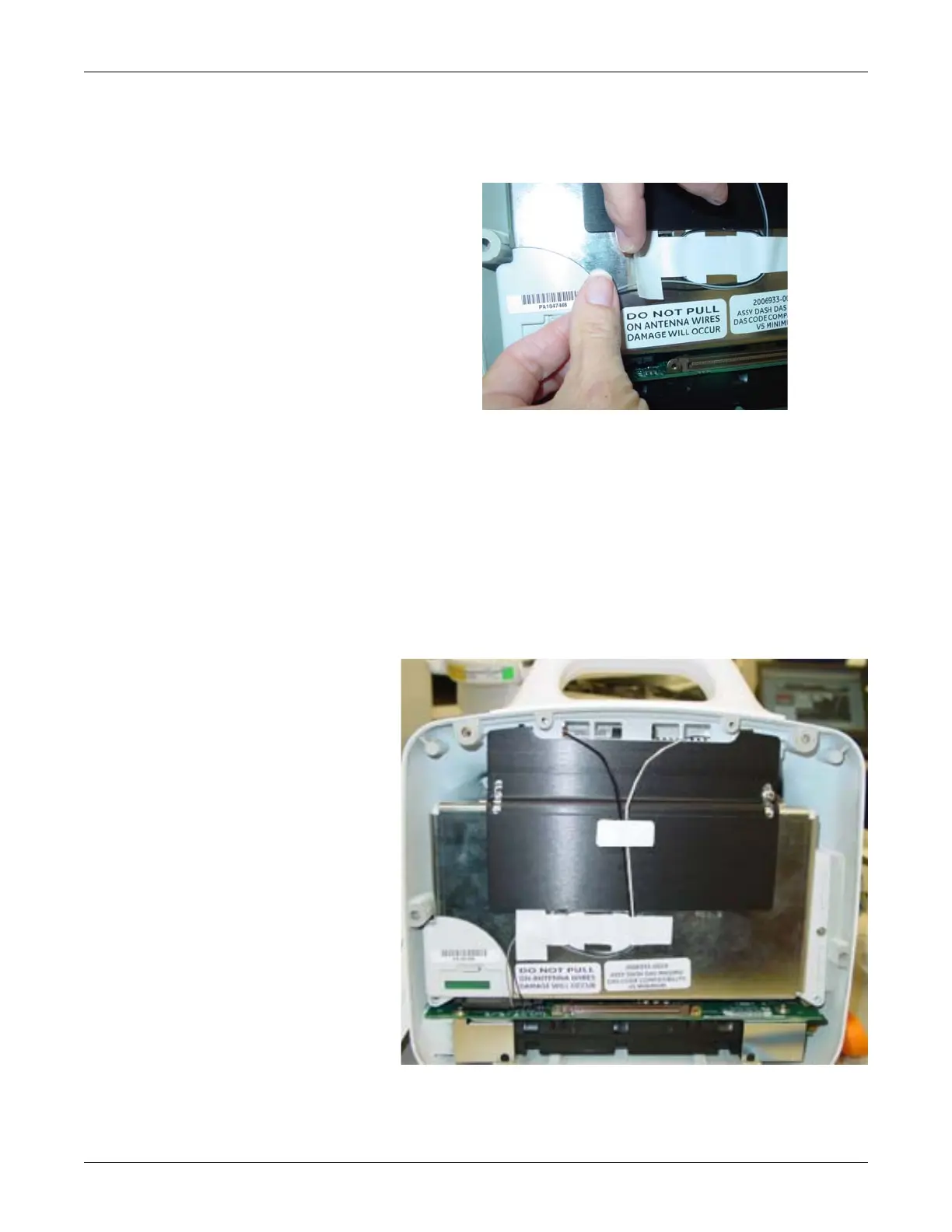

o. Check that there is no excessive slack in the antenna cables that
could get pinched between the heat shield and the display
assembly or between the display connector. The antenna cable
should lie flat underneath the heat shield and the unsecured
antenna cables connected to the wireless card should have little
slack as shown.
NOTE
Due to the larger display size of the Dash 5000 monitor, the
unsecured portion of the antenna cables between the antenna
label and the wireless card has very little slack.
p. Reinstall the display assembly.
