Field replaceable units: Remove or replace display assembly
2000966-542D Dash 3000/4000/5000 7-19

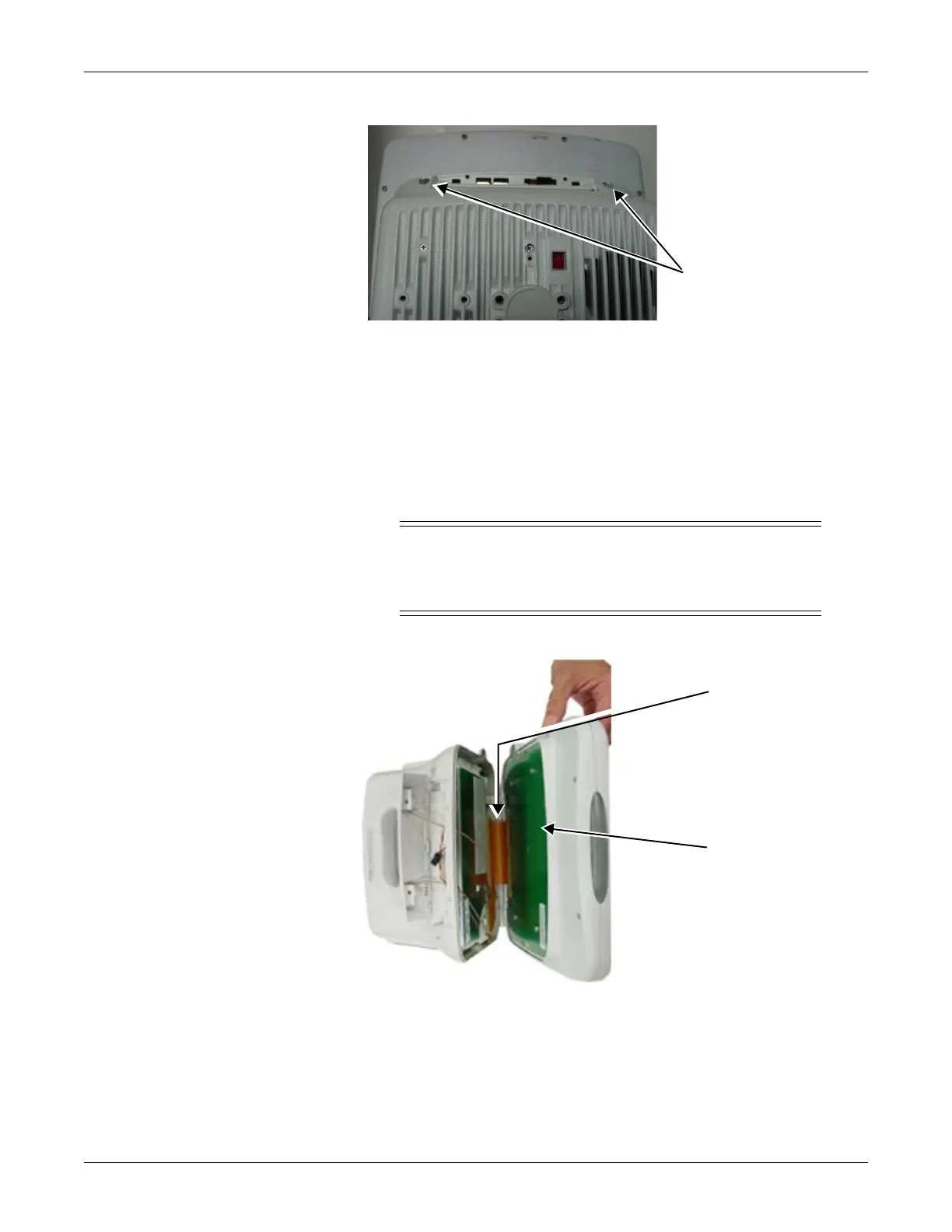

4. Partially separate the display assembly from the main unit and look
inside the unit to determine how the display flex cable is folded.
Depending on the model, the Dash patient monitor may have a
display flex cable that folds up from the bottom or from the right side
of the display.
The location of the fold dictates how to position the display assembly
to remove it from the main unit.
CAUTION
CABLE DAMAGE — Do not kink, pinch, stretch, twist,
or tightly fold the display flex cable. If you do not handle
the flex cable gently, you will damage the cable.
893A
The Dash 5000 patient
monitor has two additional
screws.
Flex cable folds up
from the bottom of the
display assembly.
869A
Metal display shield
plate
To Next Page
