Field replaceable units: Replace main unit parts
2000966-542D Dash 3000/4000/5000 7-49
3. Remove the assembly from the unit.

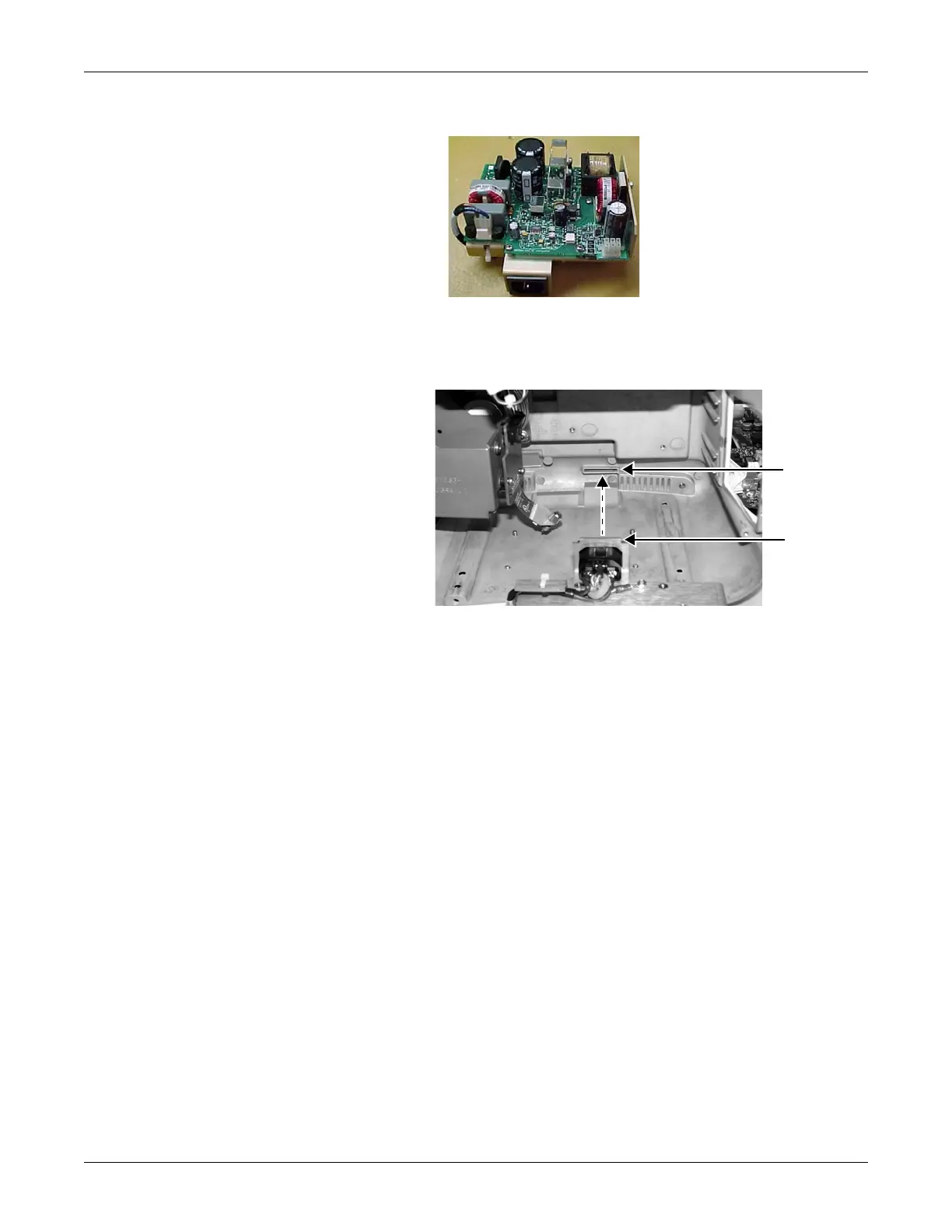

4. Align the tab on the power supply mounting bracket with the slot in
the rear housing and install the new assembly in the unit. Fasten the
assembly to the rear housing with the new screws.
NOTE
When securing the thumb screw on the writer flex, first finger-
tighten the thumb screw. Then, use a flat-head screw driver to
tighten the screw an additional 1/4 turn.
5. Reassemble the patient monitor in reverse order.
6. Complete the procedures in “Recommended checkout” on page 7-52.
