Equipment overview: Components
2-4 Dash 3000/4000/5000 2000966-542D

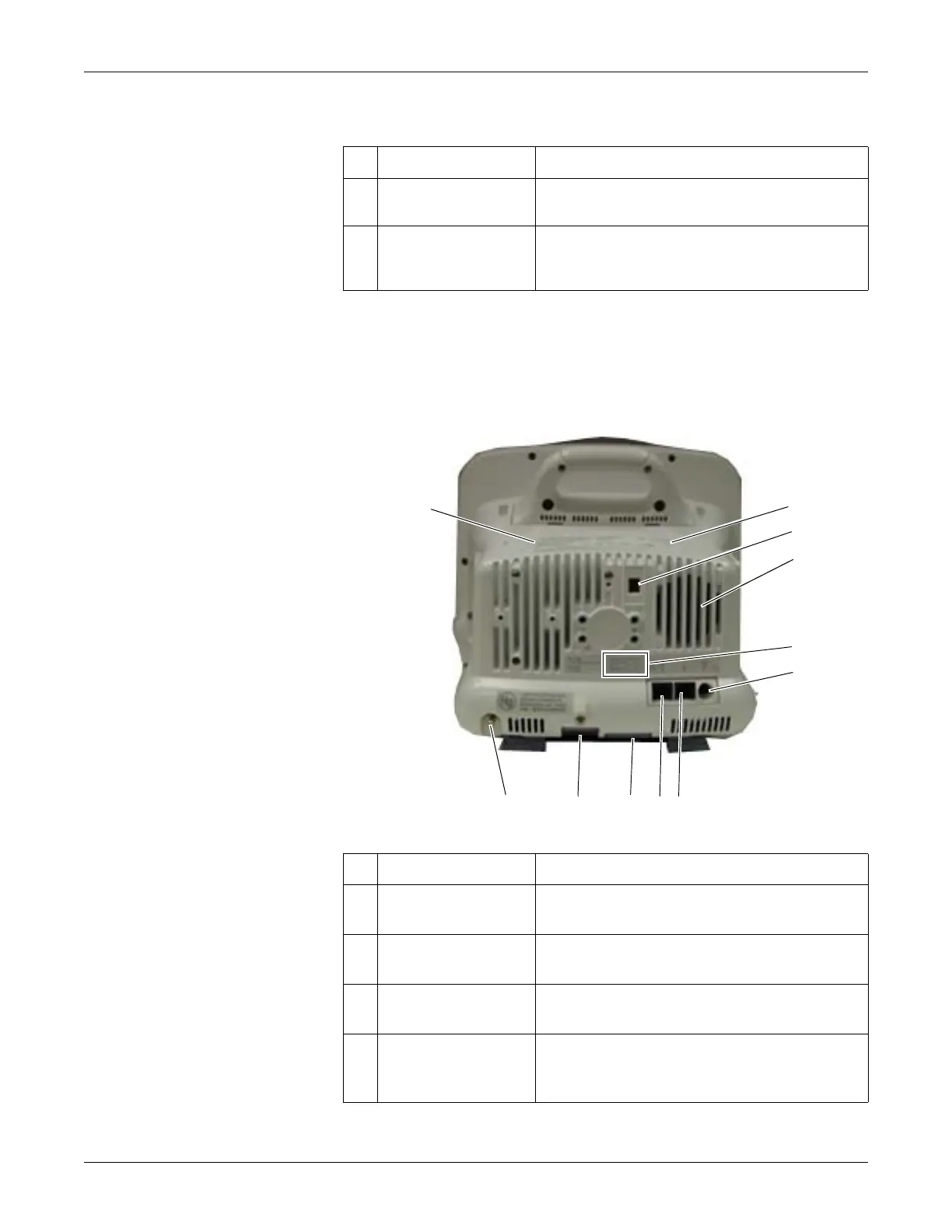

Back view
All ports for equipment and network are on the back of the patient
monitor.
Name Description
A
Built-in writer
(optional)
The built-in, 4 channel writer is located in the
center of the left side of the monitor.
B
Battery compartment The battery packs are located in this compartment.
The battery compartment may be a single plastic
door or two silicone doors.
Name Description
A
wireless transmitter label Identifies monitors that contain an internal wireless
transmitter for network communication.
B
line voltage selector This selector is factory set to match the line voltage
rating for your country.
C
speaker The internal speaker provides sound for audible alarms.
For better sound quality do not block speaker.
D
voltage and current
requirements
Identifies the voltage and electrical current
requirements for proper and safe operation of this
monitor.
