Installation: Connections
3-6 Dash 3000/4000/5000 2000966-542D
The TRAM-rac 2A module housing does not have an Analog Output
connector.
BISx module
The BISx module connects to the patient monitor via a RJ-45 cable that
plugs into the Aux port on the patient monitor and a Y-cable. One end of
the Y-cable plugs into a power supply and the other end plugs into the
BISx module cable.

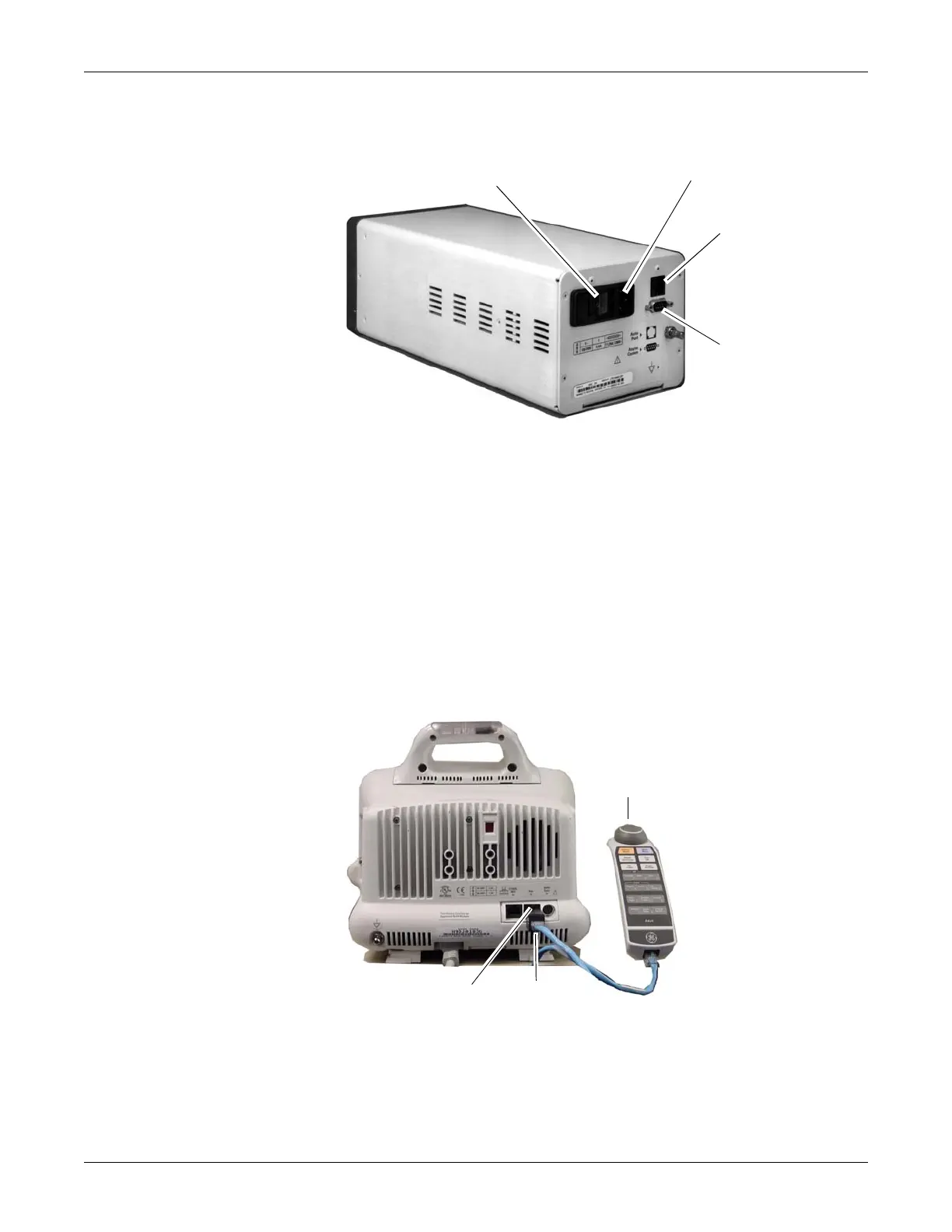

Remote control
The remote control connects to the patient monitor via a communications
cable which plugs into an Autoport to M-port adapter before it is inserted
into the Aux port on the Dash patient monitor or the Dash Port 2
docking station.
The remote control is programmed for specific care areas (adult,
neonatal, or operating room).
NOTE
The error message WARNING: REMOTE MISMATCHED WITH
MONITORING MODE displays if a mismatched remote control is
connected to the patient monitor.
AC power
Auto Port to the patient
monitor’s Aux Port
Async Comm
power switch
006A
822A
remote control
Aux port adapter
