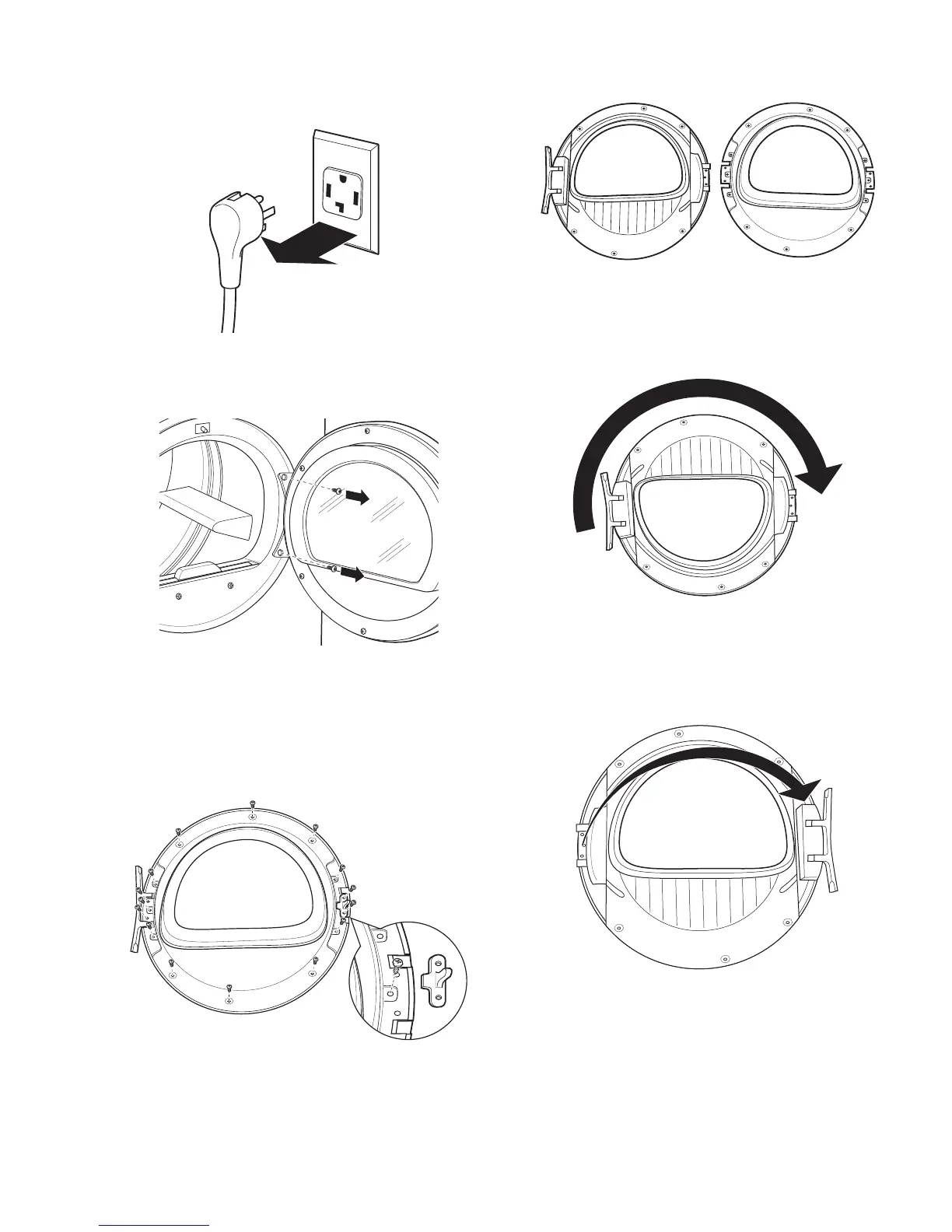

To reverse the door swing:
Unplug the dryer from its electrical outlet.1.
2. Remove the hinge bracket anchoring screws.
3. Slide door and hinge assembly upward, then
remove the assembly from the dryer front panel.
4. Remove 16 door screws and male end of latch
from the inner side of the door.
5. Remove the inner face.
6. Lift and rotate the window assembly 180° and
replace. Also rotate the inner face 180° and
replace.
7. Replace a door screw in the center of the side
opposite the hinge. Then put the male end of
the latch into place and fasten with two door
screws.
