– 12 –
8. Replace all door screws that were removed.

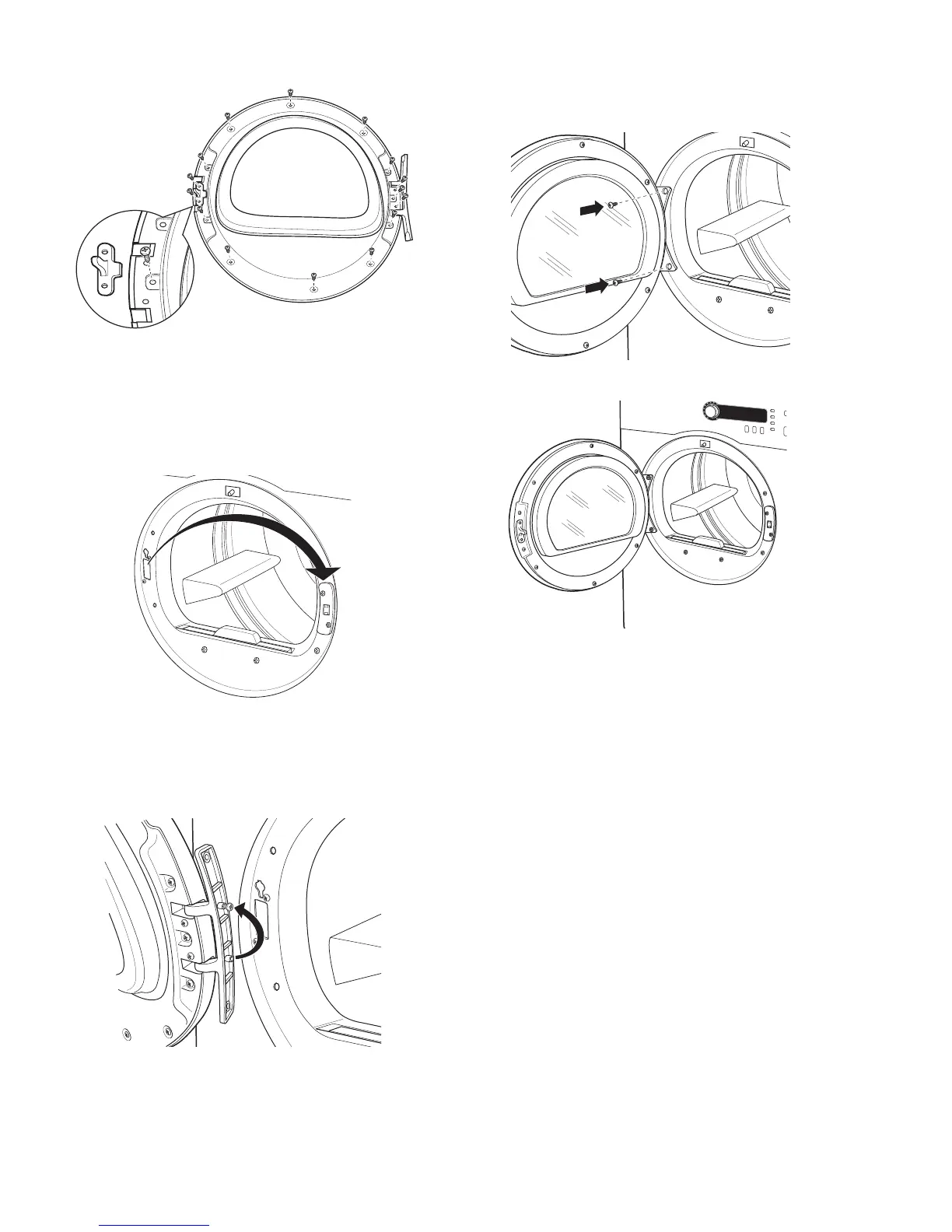

9. Remove the female end of the latch from the
front panel of the dryer, rotate 180°, and replace
on the opposite side.
10. Move the mounting screw to the upper screw
hole position on the hinge so that the door can
be set on the cabinet during fi nal installation.
11. Fasten the hinge back on at the top and bottom
with the hinge mounting screws.
