OPM_SGS_ISG_10K_40K_0US_V010.doc 9/45 Installation Guide SG Series 10, 20, 30 & 40 kVA
2 LAYOUT
2.1 LAYOUT SG Series 10 AND 20 KVA
SGT5000_010-020_UPS_GE_02

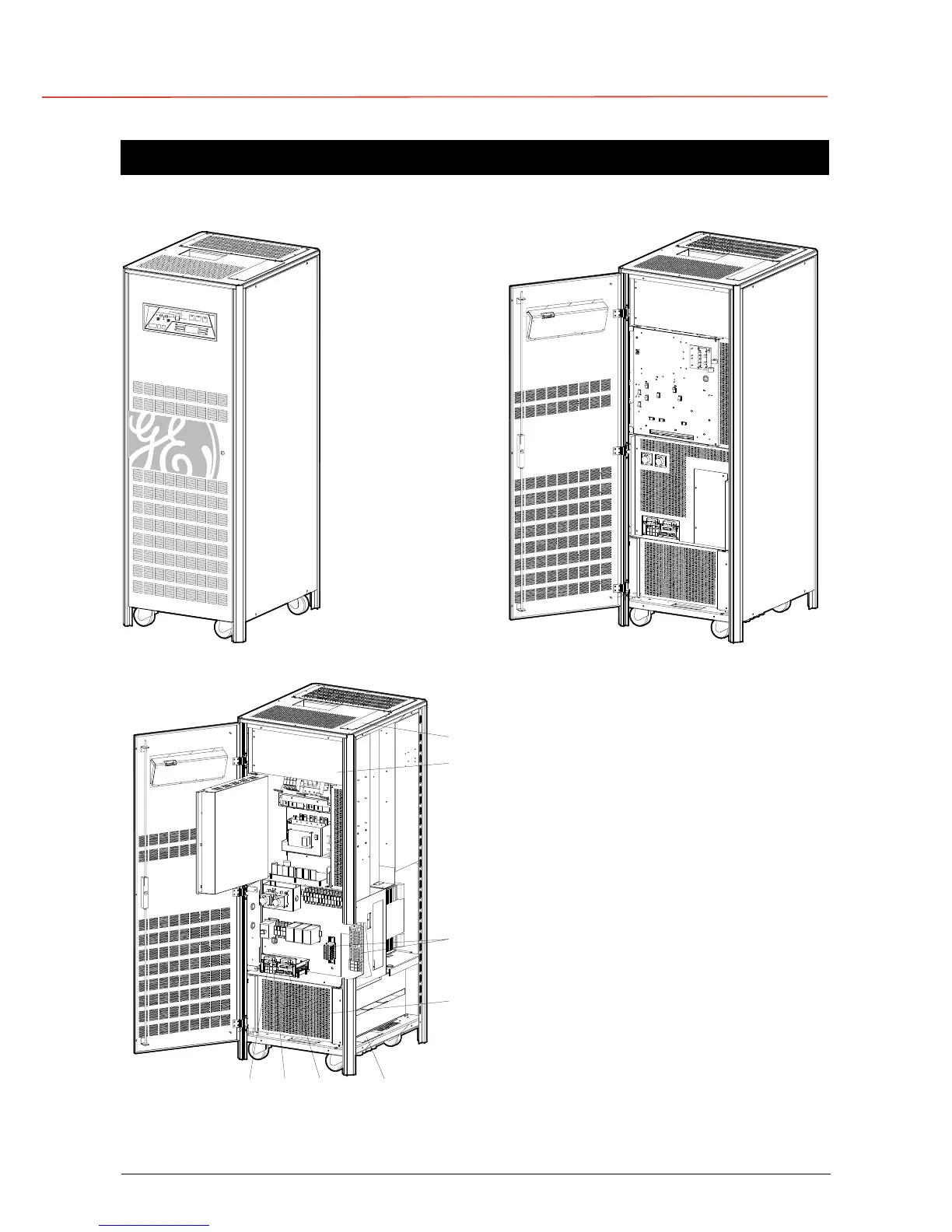

Fig. 2.1-1 SG Series general view
SGT5000_010-020_UPS_GE_03
Fig. 2.1-2 SG Series general view with open doors
SGT5000_010-020_UPS_GE_04
4
1
2
5
CRXA XB
3
Fig. 2.1-3 SG Series general view with optional 5
th
harmonic filter
and removed protection panels
1 Opening for top cable entry
2 Opening for bottom cable entry
3 Terminals for Utility input and
load output
4 Terminals for external Battery
connection
BS Battery Shelf
CR Connectivity Rack
XA Terminals for 24VDC Auxiliary
Power Supply connection
XB Terminals for EPO connection
