Appendix B.2: Spare Parts eBike L / eBike EL

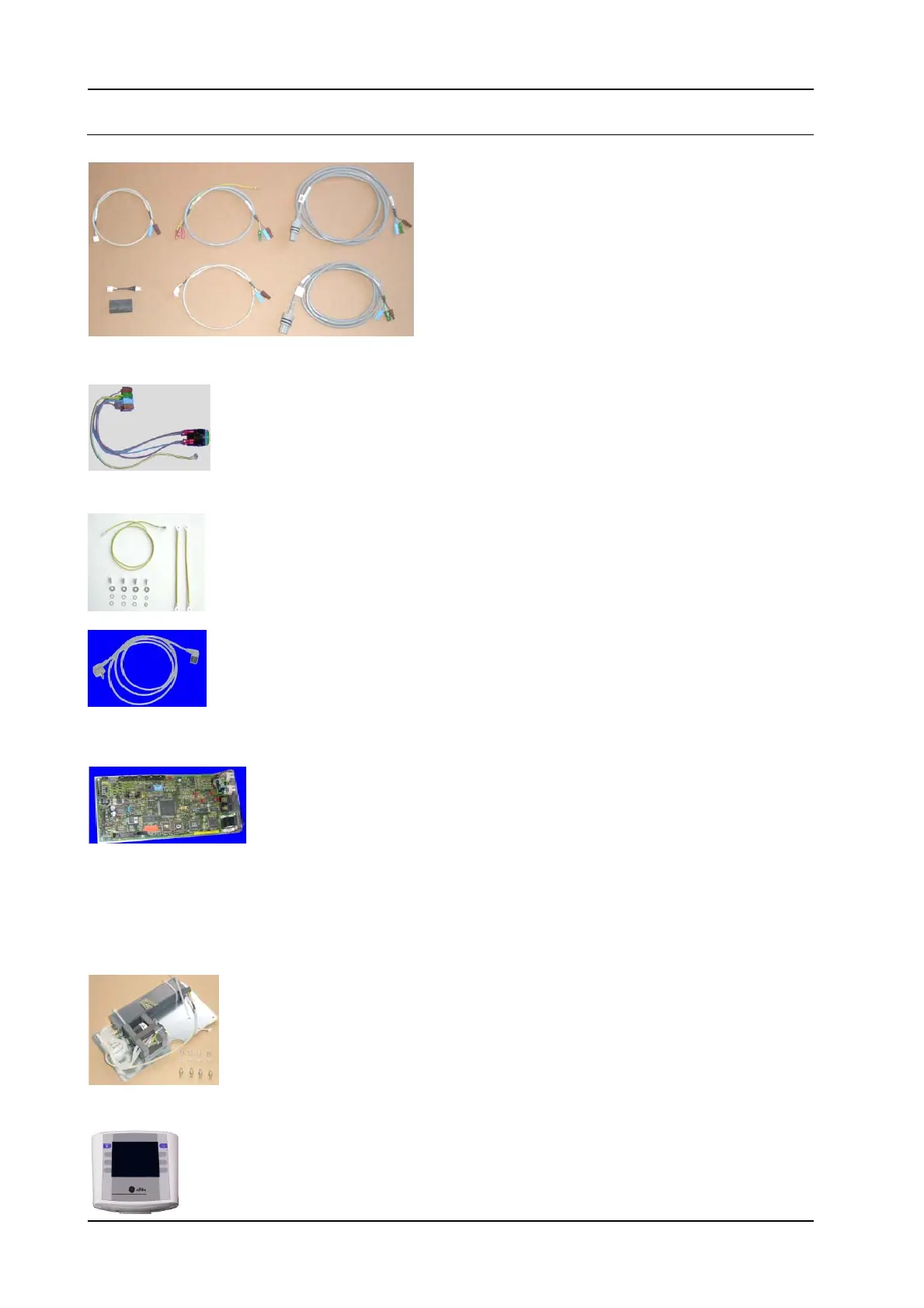

2018111-072 SPARE EBIKE L&EL INTERNAL PWR CABLE SET cable set, internal, for power supply eBike L / EL, comprising:
1 x cable power supply to modular plug connector
1x cable cold appliance plug to modular plug
1x cable tie 95 mm
1x control cable connecting to modular connector (eBike L)
1x control cable connecting to modular connector (eBike EL)
1x cable power supply to modular plug connector for Version 3
1x adapter cable
2018111-073 SPARE EBIKEL EL POWER SWITCH Service Kit: power switch, complete, for eBike L/EL, comprising:
1x switch ON/OFF, round, illuminated
1x cable power switch to modular plug
6x screw M3x12
4x cable tie, 95 mm
2018111-074 SPARE EBIKE L&EL EARTH CABLE SET Service Kit: Earth cable, kit for eBike L/EL comprising:
1x earth cable from base to swivel section (eBike L and EL)
1x earth cable from base joint head to swivel section (eBike EL only)
8x washer Z4.3
4x washer U4.3
4x screw M4x 8
1x protective earth cable connecting to Basic control terminal
2018111-075 SPARE EBIKE CABLE MAINS EURO 5M Power cord, grey, length 5 m, German connector
PC Boards eBike L / eBike EL
2018111-076 SPARE EBIKE L&EL PCB IFP Service Kit: Interface Board (IFP PCP) eBike L / EL comprising:
1x IFP Board eBike L / EL
5x screw M3x6
5x washer U3.2
6x locks SUB-D
6x screw M3x12
6x spring washer
1x blind plug
2018111-077 SPARE EBIKE L&EL INTERNAL PCB CABLE SET cable set, internal, for PCB power supply and IFP, comprising:
1 x cable interface board to power supply
1 x cable interface board to terminal
Blood Pressure eBike L / eBike EL
2018111-078 SPARE EBIKE L&EL BP PUMP MODULE Service Kit: 1x Blood-pressure module (pump unit) comprising:
1x BP module (pump unit), preassembled
4x spacer pin M4x 5/8
4x washer 4.3x12x1
4x nut M4
1 x cable tie, 95 mm
Control Terminal eBike L / eBike EL
2018111-045 SPARE EBIKE TERMINAL PP NEW Service Kit: Control terminal, new, PCplus terminal, without blood
pressure, comprising:
1x control terminal, new, PCplus terminal, without blood pressure
2x screw M4x10, combi-slotted
Part No. Short Description Description
