GE eBike - Wiring Diagrams eBike L

- 38 - eBike, eBike L, eBike EL 2018112-003 Rev J
C: Electrical Design
C-1.2 Block Diagram eBike Basic / eBike Comfort for RPM Board 2

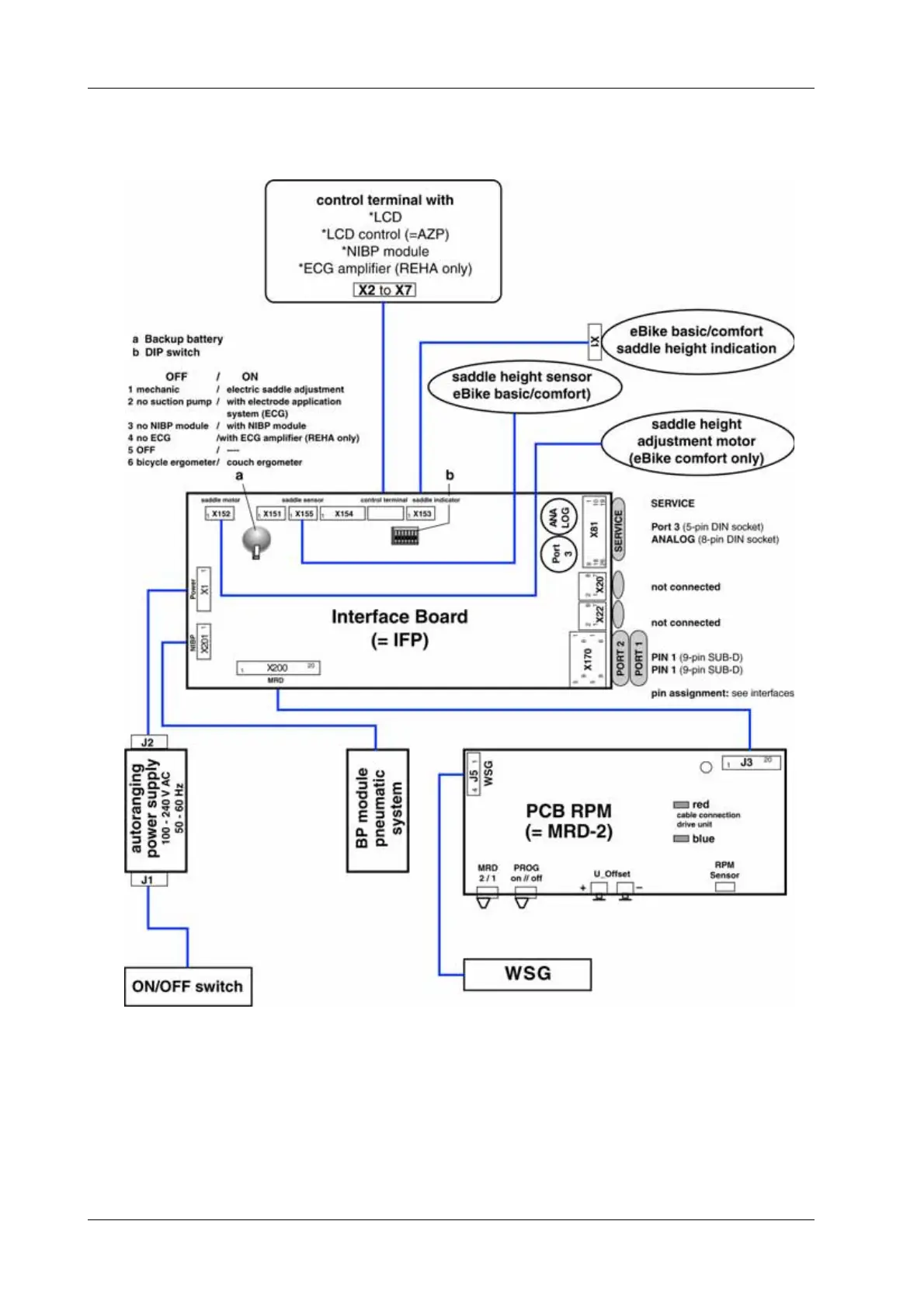

Figure C-2: Block Diagram eBike Basic / eBike Comfort for RPM Board 2
