2018112-003 Rev J eBike, eBike L, eBike EL - 13 -
B: Mechanical Design
B.2 Overview: Mechanical Design eBike
B4-2
B4-1

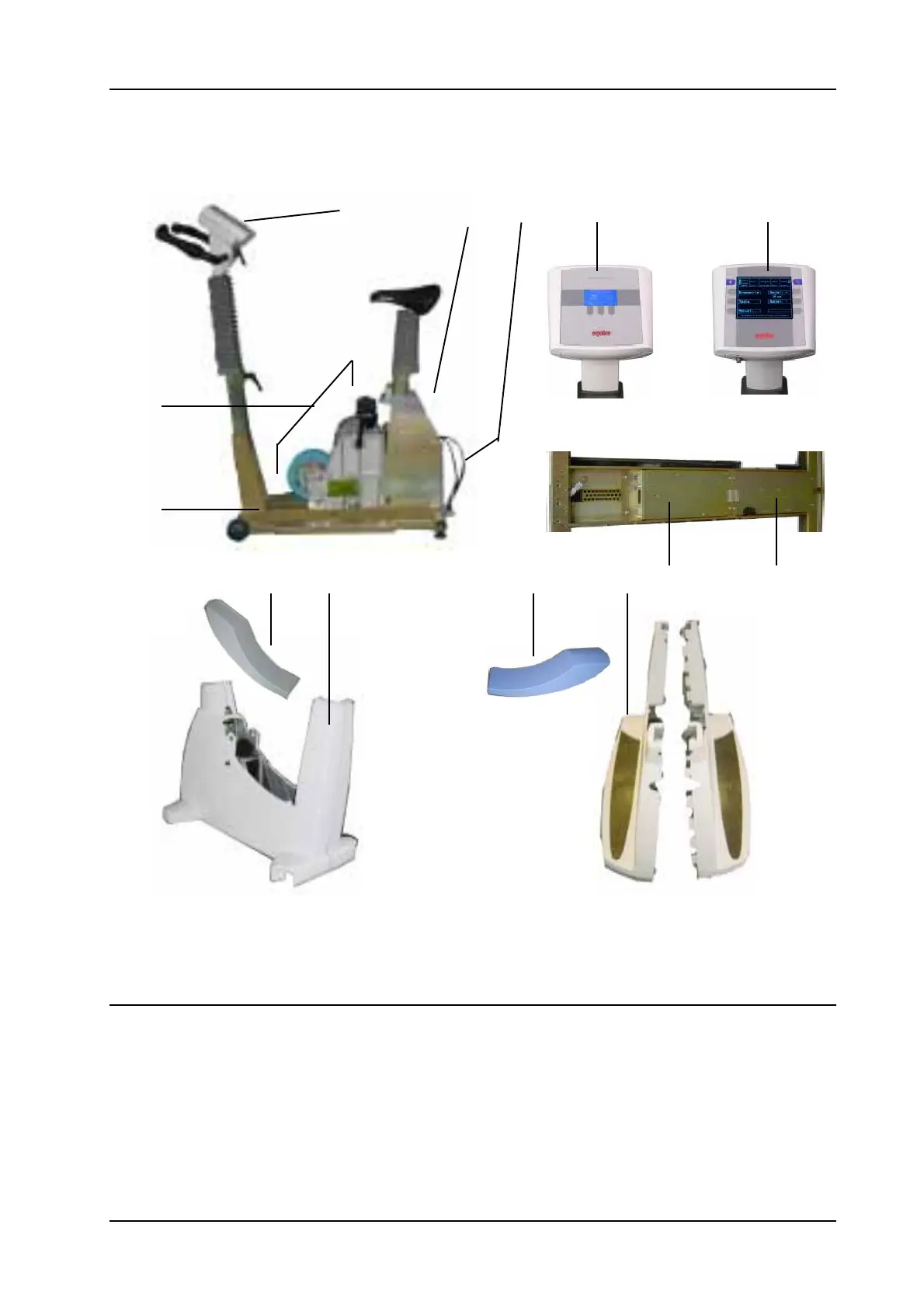

Figure B-4: Mechanical design of bicycle ergometers eBike basic
Item No. Part No. Description
B4-1 Ergometer base
B4-2 Load unit, fully assembled for eBike
B4-3 Power supply with power switch
B4-4 Control terminal PC (B2-4a) and control terminal PCplus (B2-4b)
B4-5 Casing eBike basic (B2-5a) and casing eBike comfort (B2-5b)
B4-6 Cover, grey (B2-6a) and cover, blue (B2-6b)
B4-7 PCB Interface in base assembly
B4-8 Pump unit for BP module in base assembly (optional)
B4-9 Saddle motor (eBike comfort only)
B4 -4 B4-9 B4-3 B4-4a B4-4b
B4-6a B4-5a B4-6b B4-5b B4-7 B4-8
