B-3. Overview: Mechanical Design eBike L

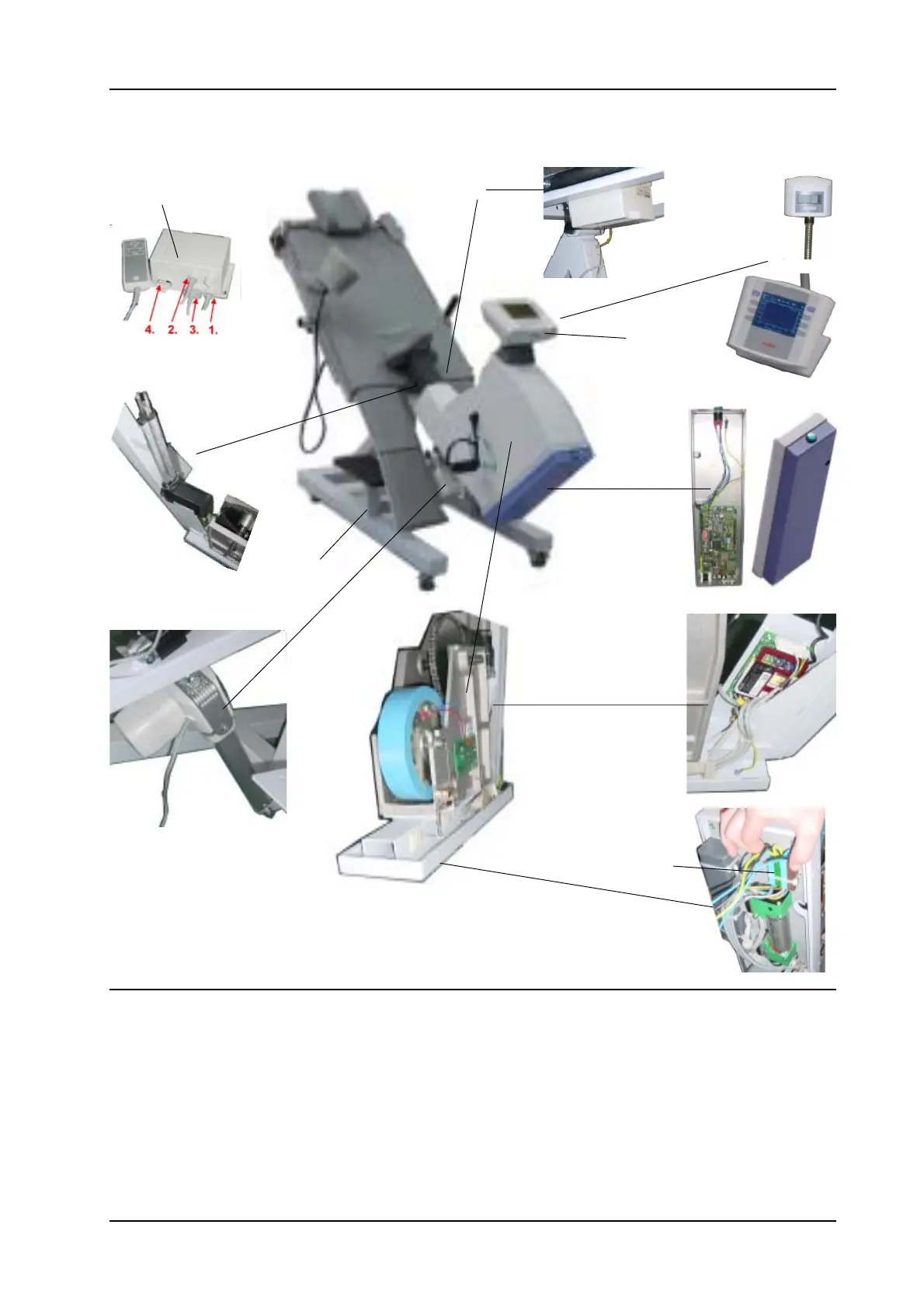

Figure B5: Mechanical Design Couch Ergometer eBike L
Item No. Description
B5-1 Base of couch ergometer eBike L
B5-2 Load unit, installed
B5-3 Connection box with interface board and ON/OFF switch
B5-4 Power supply, installed for eBike L
B5-5 Modular cable connection
B5-6 Blood pressure pump module for eBike L (optional), mounted
B5-7 Lift motor for couch adjustment for eBike L
B5-8 Saddle motor for eBike L
B5-9 Motor control with hand switch, 2 channels for eBike L (1 - lift motor, 2 - saddle motor, 3 - remote
control, 4 - mains connection)
B5-10 Control terminal for eBike L (eBike L basic only)
B5-11 External control terminal combined with additional speed indicator for patient (with eBike L external
only)
B5-2
B5-1
B5-4
B5-5
B5-7
B5-10
B5-11
B5-3
B5-8
B5-9
B5-9
