- 96 - eBike, eBike L, eBike EL 2018112-003 Rev J

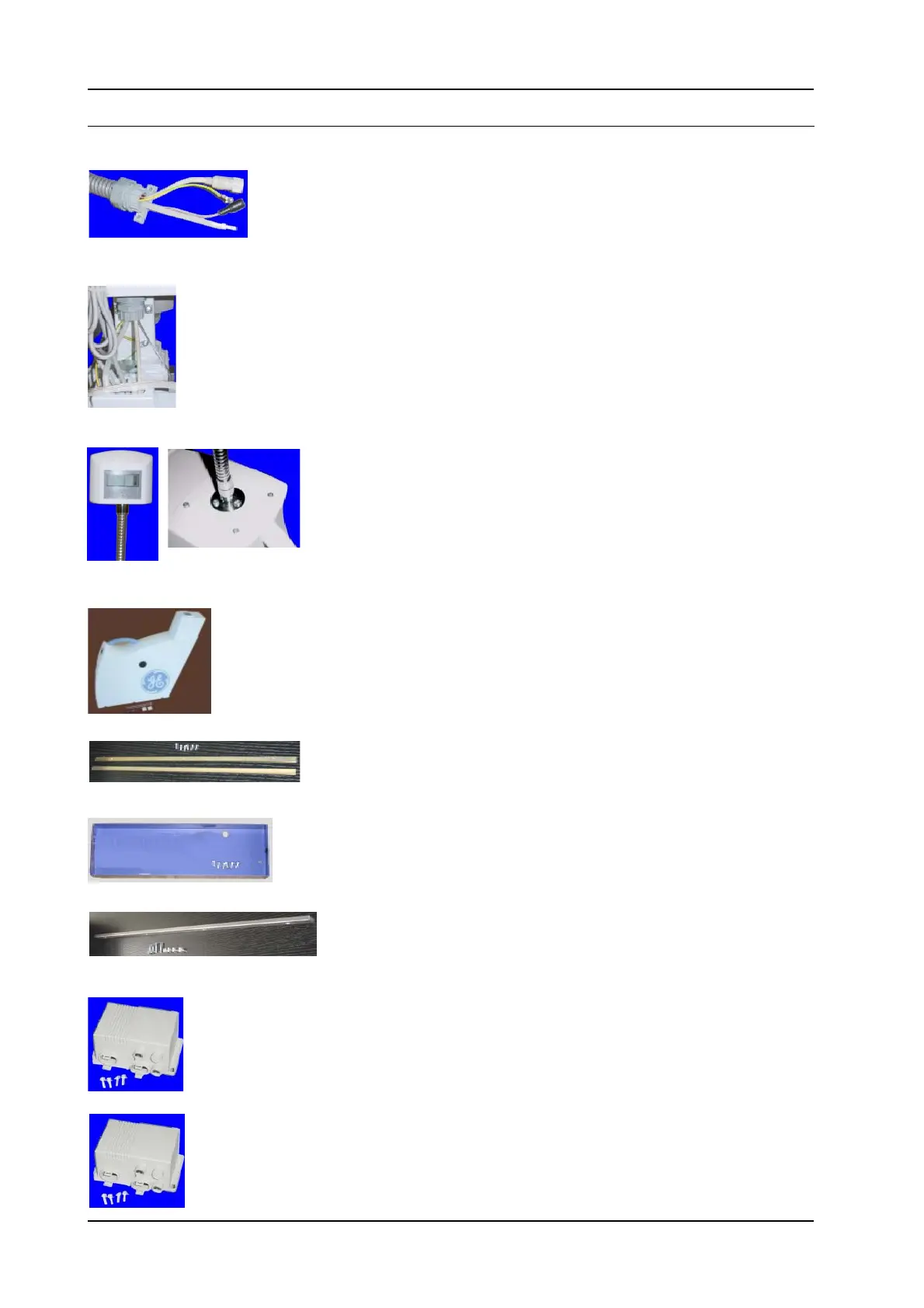

Appendix B.2: Spare Parts eBike L / eBike EL
2018111-086 SPARE EBIKE L&EL TUBE EXT TRMNL Service Kit: Flex tubing for external terminal L/EL, comprising:
1x Flexa Airflex 21x27, 2.5 m preassembled, with
2x screw connections for tubing
2x plastic fixation angles
4x screw M5x16
1x silicon tubing, 3.0 meters, diam. 3x2
1x tubing joint, GS4
in illustration 1x microphone cable connecting to external control terminal
„Flex tubing on terminal side, loose“ 1x protective earth cable connecting to foot
in illustration „Flex tubing mounted to frame“
2018111-087 SPARE EBIKE L&EL REVOLUTION DISPLAY Service Kit: External
speed indicator for eBike L/EL comprising:
1x external spped indicator, complete with
goose neck and IFP connection cable
illustration at right 1x mounting material
shows goose neck
installed
Casing / Basic Unit eBike L / eBike EL
2018111-088 SPARE EBIKE L&EL COVER WITH HANDHOLD Service Kit: Casing eBike L / EL, comprising:
1x casing eBike L / EL
6x screw M3x12
2x cable tie, 180 mm
2018111-089 SPARE EBIKE L&EL CLAMP BAR SET FOR COVER Service Kit: Clamping bars for casing eBike L/EL comprising:
2x clamping bar for casing eBike L/EL
6x screw M3x12
2018111-090 SPARE EBIKE L&EL CONNECTION BOX Service Kit: Connection box for eBike L/EL comprising:
1x connection box for eBike L/EL
6x screw M3x 12
3x star washer 4.3
1x washer 4.3
2x nut M4
2018111-091 SPARE EBIKE L&EL GUIDE BAR SET Service Kit: Guide rail, comprising
1x guide rail
4x stand-off, diam. 14, length 12
4x screw M6x30
2018111-092 SPARE EBIKE L MOTOR CONTROLLER 240V Service Kit: Motor controller magnetic 230 V for eBike L, dual-channel,
comprising:
1x motor controller magnetic 230V/50Hz, dual-channel
4x washer 4.3
4x nut M4
2018111-093 SPARE EBIKE L MOTOR CONTROLLER 120V Service Kit: Motor controller magnetic 120 V for eBike L, dual-channel,
comprising:
1x motor controller magnetic 120V/60Hz, dual-channel
4x washer 4.3
4x nut M4
Part No. Short Description Description
