Appendix B.2: Spare Parts eBike L / eBike EL

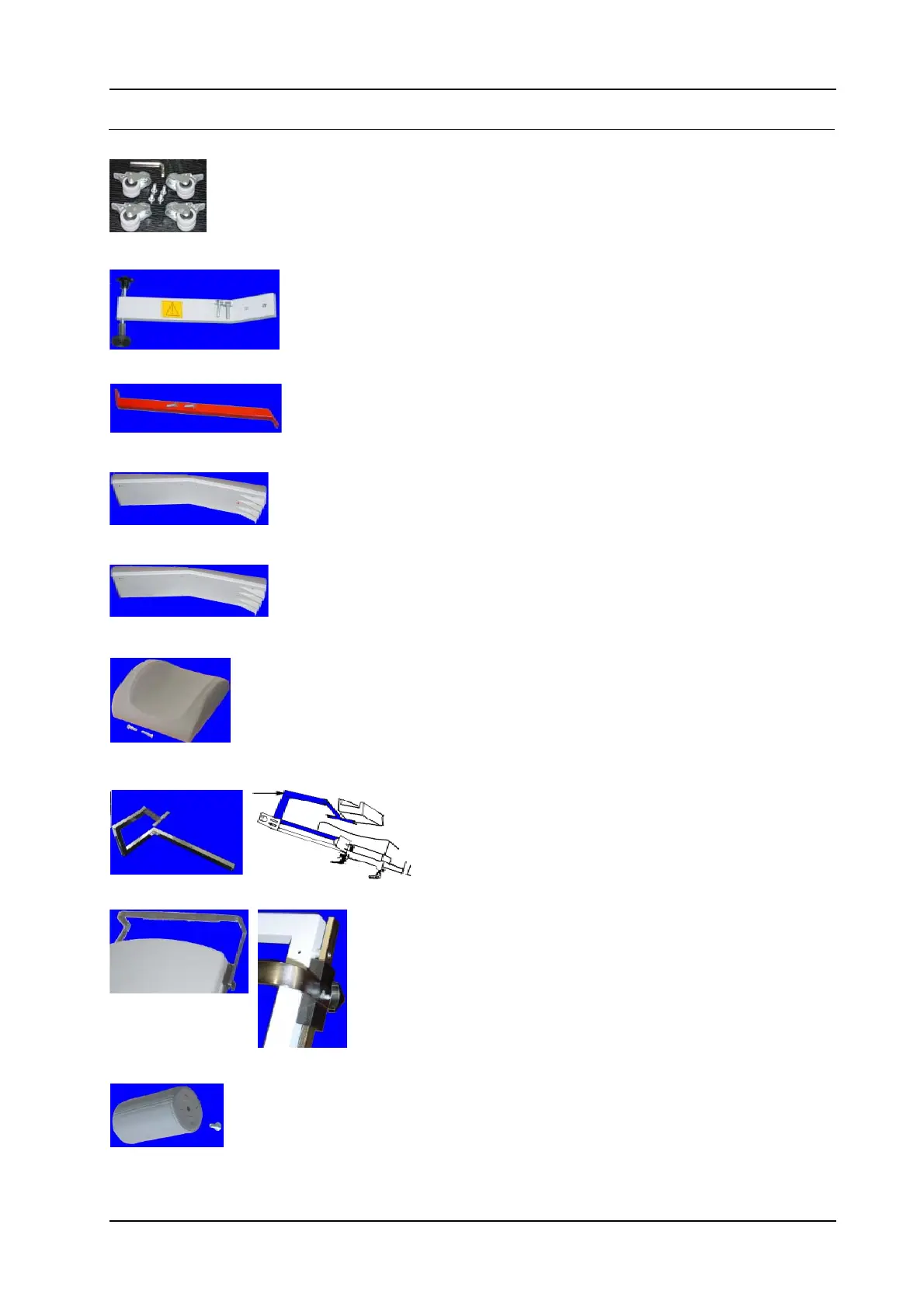

2018111-113 SPARE EBIKE L&EL CASTOR SET Service Kit: Castor, locking, comprising:
4x castors, locking, diam. 50
1x Allan key, size 8 5/16
2018111-114 SPARE EBIKE EL OUTRIGGER SUPPORT Service Kit: Outrigger left, complete for eBike EL, comprising:
1x outrigger eBike EL, fully assembled
2x washer U10
2x screw M10x40
2018111-115 SPARE EBIKE EL TRANSPORTATION LOCK Service Kit: Transportation lock for eBike EL, comprising:
1x transportation lock eBike EL with sticker „TOP“
2x screw M10x30
Upholstery eBike L / eBike EL
2018111-116 SPARE EBIKE EL LEG REST RIGHT Service Kit: Leg rest, right, for eBike L / EL, comprising:
1x leg rest, right, complete with upholstery, grey, mounted
2018111-117 SPARE EBIKE EL LEG REST LEFT Service Kit: Leg rest, left, for eBike L/EL, comprising:
1x leg rest, left, complete with upholstery, grey, mounted
2018111-118 SPARE EBIKE L&EL HEAD CUSHION Service Kit: Head cushion eBike L/EL, comprising:
1x head cushion eBike L/EL, grey
2x screw M6x30
2018111-119 SPARE EBIKE EL HOLDER FOR HEAD SUPPORT Service Kit: Holder for head rest, chromeplated, comprising:
1x support tubing head cushion (see arrow in sketch, right)
1x Novogrip clamping lever M10 x 15
1x reinforcing angle 34 x 25 x 2
1x clamping board 30 x 8, length 34 mm
2x screw M4 x 12 (for paper roll holder)
2x washer U 4.3 x 12x 1 (for paper roll holder)
1x high-performance lubricant, white, approx. 5 g
2018111-120 SPARE EBIKE L BRACKET FOR HEAD CUSHION Service Kit: Bracket for head cushion (eBike L only) comprising:
1x bracket for head cushion eBike L
2x clamp with star knob M8x20 (already mounted, see illustration at right)
2018111-122 SPARE EBIKE EL ARMPIT CUSHION Service Kit: Armpit cushion, grey (eBike EL only)
1x armpit cushion, grey (eBike EL only)
1x screw M8x25
Part No. Short Description Description
