2018112-003 Rev J eBike, eBike L, eBike EL - 17 -
B: Mechanical Design

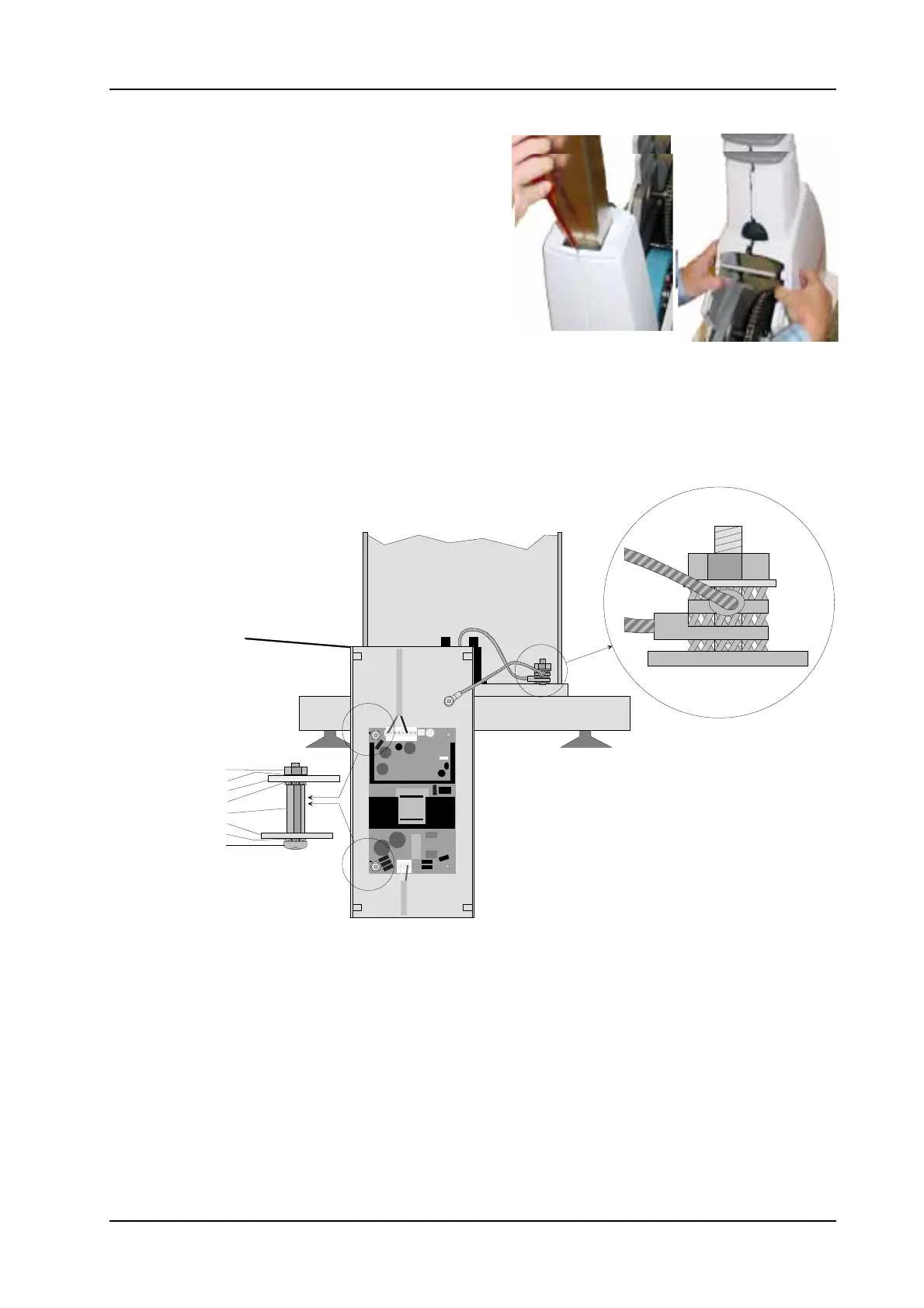

8. Remove casing.
• Using a screwdriver with a wide blade,
carefully spread he casing at the front,
then at the rear.
• Carefully separate the two shells.
9. Reverse the above steps to reassemble.
e. Install Power Supply Module for eBike basic & comfort
(P/N 2018111-141)
Replacement of large power supply ERS80US24M or
small power supply EMC60US24.
• Install the ground wire of the power supply to the
base frame as shown in the illustration.
PE
PE
Nut M3
Washer 3,2
Power supply board
Lock washer 3,2
Standoff M3 12mm
H
olding plate power supply
Lock washer 3,2
Fillister head screw M3x8
