- 80 - eBike, eBike L, eBike EL 2018112-003 Rev J
Part No. Short Description Description
Appendix B: Spare Parts

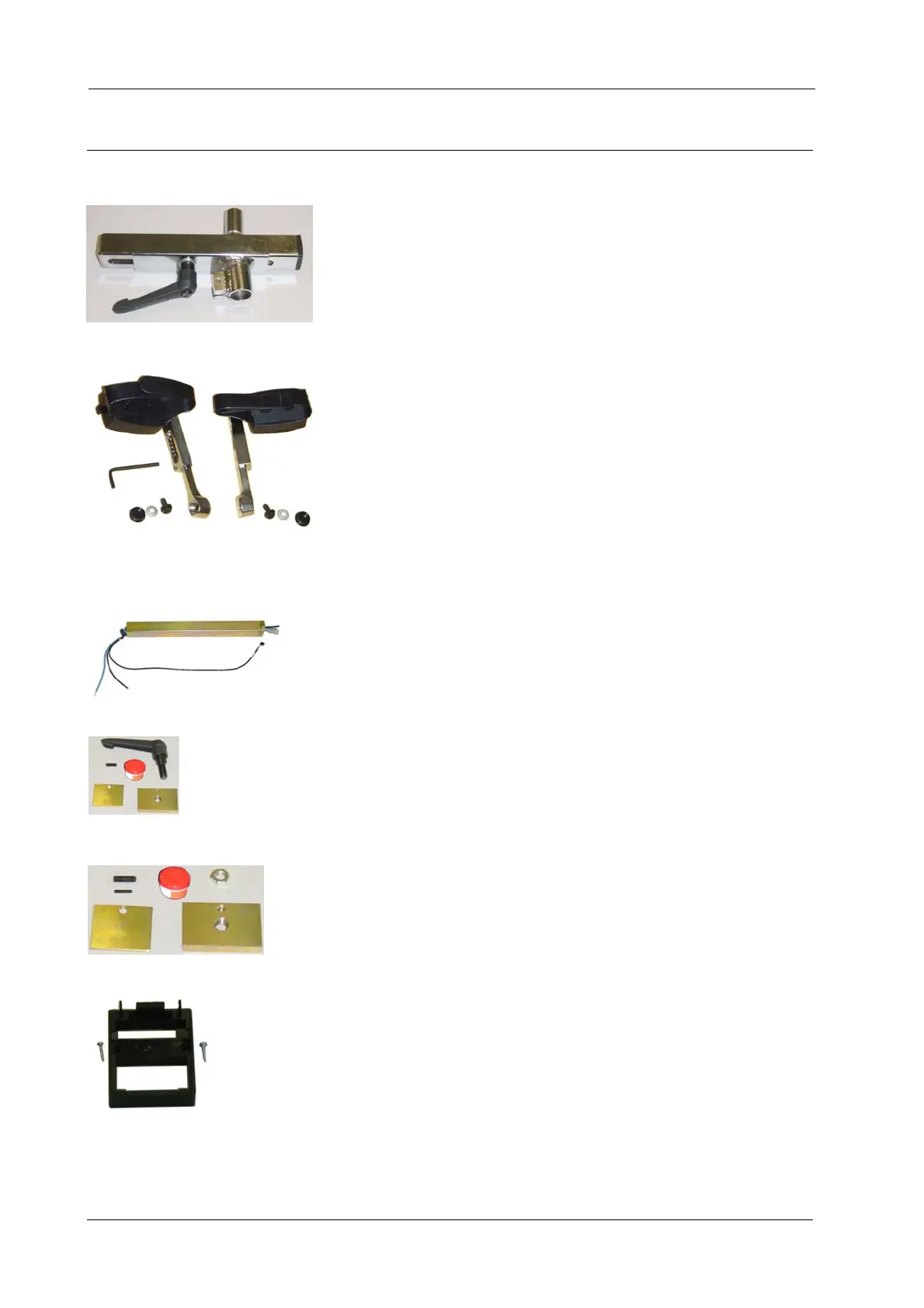

2017911-018 SPLY EBIKE SADDLE MOUNT HOR ADJUSTABLE saddle fixture, horizontally adjustable
2017911-019 SPLY EBIKE CRANK SET ADJUSTABLE The scope of delivery consists of the following
parts:
2 pc. combi screw M8 x 1 x 18, SW 14 mm
2 pc. ribbed disk
2 pc. terminal cap for pedal cranks
1 pc. Allan key, black, width 5 mm (for
adjustment of crank length)
Housing / Basic Unit eBike:
2018111-002 SPARE EBIKE HANDLEBAR TUBE W CABLE Service Kit: handlebar tube with spiral cable, comprising:
- handlebar tube, galvanized, yellow, for eBike basic/comfort
- spiral cable CAN, incl. connection for control terminal
- dual spiral cable, black and blue (ECG + NIBP)
- 3x tubing joints GS4
- incl. assembly material
2x cable ties 3.5 / 180 mm (installed)
2x cable ties 2.4 / 95 mm (supplied)
2018111-003 SPARE EBIKE CLAMPING LEVER/PLATE SET Service Kit: Plate with threaded bushing and clamping
lever,
incl. grease, kit consisting of:
- clamping lever M10x 25, clamping saddle/handlebar
- plate with threaded bushing, front and rear, 54x35x 8 mm
- clamping sheet 40x37x5 drawn
- setscrew M5x16
- high-performance lubricant, white, approx. 5 g
2018111-004 SPARE EBIKE SETSCREW/PLATE SET Service Kit: Plate with threaded bushing, with setscrew,
incl. grease, kit consisting of:
- plate with threaded bushing, front and rear, 54x35x 8 mm
- clamping sheet 40x37x5 drawn
- setscrew M10x20
- nut M10
- setscrew M5x16
- high-performance lubricant, white, approx. 5 g
2018111-005 SPARE EBIKE BASE FOR SADDLE HEIGHT DSPLY Service Kit: Base for saddle height display consisting of:
1x base for saddle height display
2x screw M3x12
